Quick Details
-
Air Consumption:
-
10~15m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YXH
-
Voltage:
-
380V, 440V, 660V
-
Dimension(L*W*H):
-
2.0* 0.83* 1.3m
-
Weight:
-
800 kg
-
Product name:
-
Concrete Shotcrete Machine
-
Keywords:
-
Shotcrete Machine Concrete Spraying
-
Application:
-
Construction Projects
-
Capacity:
-
7m3/h
-
The maximum transmission distance:
-
200MM
-
Transporting pipe inner:
-
64MM
-
blast consumption:
-
10-15M3/min
-
Operating Air Pressure:
-
0.2-0.6MPa
-
Motor power:
-
7.5kw
Quick Details
-
Marketing Type:
-
New Product 2023
-
Max. Conveying Distance:
-
200m
-
Hose Inner Diameter:
-
64 mm
-
Air Consumption:
-
10~15m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YXH
-
Voltage:
-
380V, 440V, 660V
-
Dimension(L*W*H):
-
2.0* 0.83* 1.3m
-
Weight:
-
800 kg
-
Product name:
-
Concrete Shotcrete Machine
-
Keywords:
-
Shotcrete Machine Concrete Spraying
-
Application:
-
Construction Projects
-
Capacity:
-
7m3/h
-
The maximum transmission distance:
-
200MM
-
Transporting pipe inner:
-
64MM
-
blast consumption:
-
10-15M3/min
-
Operating Air Pressure:
-
0.2-0.6MPa
-
Motor power:
-
7.5kw
Products Description

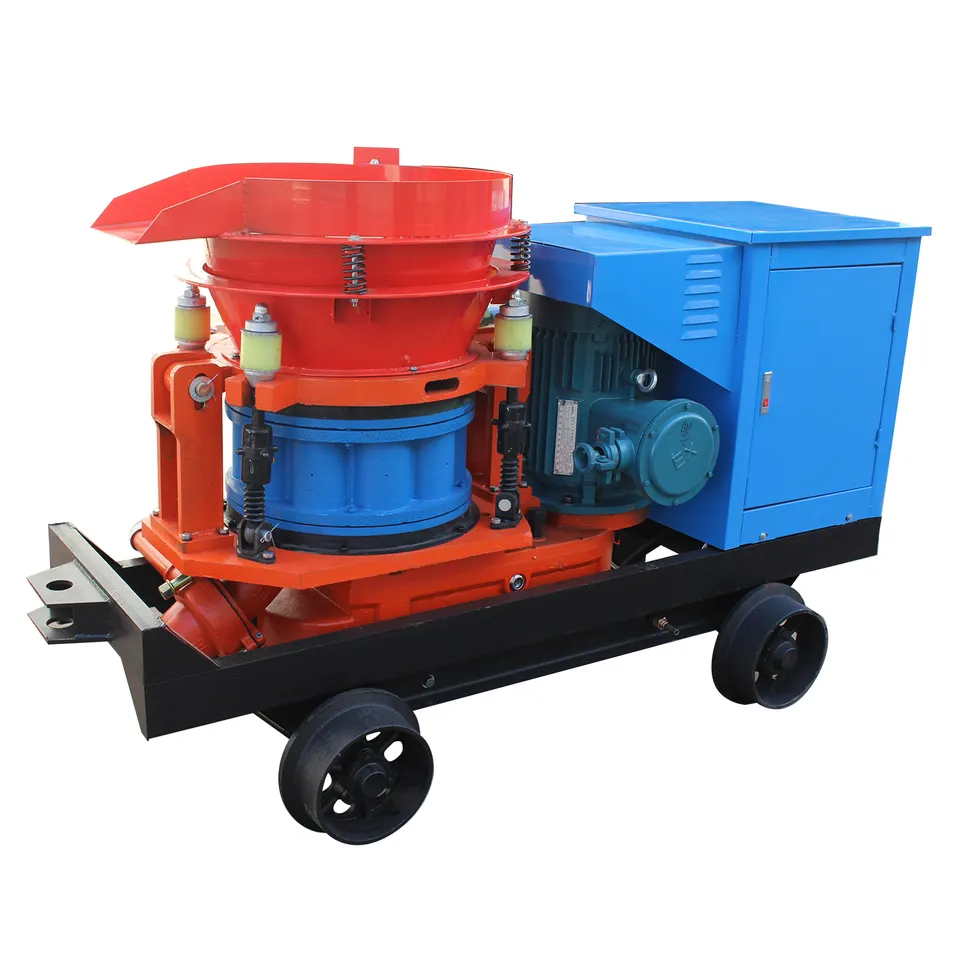

HSP series Gunite Machine for Construction uses a whole cup type elastic material, the elastic sticky discharges elbow, the overall clean boards. Rotor material cup and bend the material has a self-cleaning effect, non-adhesive, non-blocking, no cleaning, dust concentration 20mg/m3, the average rebound rate 15%, has the feature of simple structure, reliable, high efficiency, easy assembly and disassembly the nozzle discharge uniformity and long life of wearing parts and so on.Which is one of leading technology concrete injection machine in the domestic.
Features of Wet Shotcrete machine:
1.HSP type concrete wet spraying machine is a type of alkali spraying machine mainly used for wet spraying of concrete
2.Wet spraying can make the mixture evenly mixed;
3.The water cement ratio can be accurately controlled, which is conducive to the hydration of water and cement, resulting in small dust and small rebound;
4.The concrete has good homogeneity and high strength,
5.The machine has a reasonable structure, stable performance, convenient operation and maintenance, and is economical and practical.
Product Paramenters
|
HSP model (wet-type) shotcrete machine
|
|
|
|
|||
|
Model (Wet-type spraying machine)
|
HSP-5
|
HSP-7
|
HSP-9
|
|||
|
Capacity (m3/h)
|
4-5
|
5-7
|
6-9
|
|||
|
Max. Conveying Distance (Horizontal,Vertical m)
|
30,20
|
30,20
|
30,20
|
|||
|
Feeding pipe inner diameters(mm)
|
51
|
51/64
|
51/64
|
|||
|
Max. Aggregate Diameters (mm)
|
15
|
15
|
15
|
|||
|
Working pressure (MPa)
|
0.3-0.6
|
0.4-0.6
|
0.4-0.6
|
|||
|
Air consumption (m3/min)
|
10-15
|
10-15
|
10-15
|
|||
|
Rotor Diameter(mm)
|
438
|
480(160)
|
480(175)
|
|||
|
Springback (Average)
|
≤10%
|
≤10%
|
≤10%
|
|||
|
Liguid accelerator content
|
0.3-0.7%
|
0.3-0.7%
|
0.3-0.7%
|
|||
|
Motor Model
|
Y132M-6-5.5KW
|
Y160M-6-7.5KW
|
Y160M-6-7.5KW
|
|||
|
Motor Power
|
0.37KW
|
0.37KW
|
0.37KW
|
|||
|
The accelerator metering pump
|
Air operated
|
Air operated
|
Air operated
|
|||
|
Voltage (V)
|
380,660,etc
|
380,660,etc
|
380,660,etc
|
|||
|
Overall size (mm)
|
1280*700*1280
|
2000*800*1300
|
2000*800*1300
|
|||
|
Overall weight (kg)
|
700
|
800
|
900
|
|||
|
SPECIFICATIONS FOR SHOTCRETE MACHINE
|
|
|
|
|
||||
|
Model
|
PZ-3
|
PZ-5
|
PZ-6
|
PZ-7
|
||||
|
Production capacity
|
3m3/h
|
5m3/h
|
6m3/h
|
7m3/h
|
||||
|
The maximum transmission distance
|
200m
|
200m
|
200m
|
200m
|
||||
|
Applicable material proportioning: cement/sa
|
1:3-5
|
1:3-5
|
1:3-5
|
1:3-5
|
||||
|
Applicable materials water-cement ratio
|
<0.4
|
<0.4
|
<0.4
|
<0.4
|
||||
|
The biggest bone size
|
10mm
|
15mm
|
15mm
|
20mm
|
||||
|
Transporting pipe inner
|
42
|
51
|
51
|
51/64
|
||||
|
Rotor block diameter
|
350mm
|
438mm
|
438mm
|
480mm
|
||||
|
Working pressure
|
0.2-0.6MPa
|
0.2-0.6MPa
|
0.2-0.6MPa
|
0.2-0.6MPa
|
||||
|
blast consumption
|
5-6m3/h
|
7-8m3/h
|
7-8m3/h
|
9-10m3/h
|
||||
|
motor power
|
4KW
|
5.5KW
|
5.5KW
|
7.5KW
|
||||
|
Level of voltage
|
380V,440V,660V,1140, 50Hz/60Hz
|
|
|
|
||||
|
Weight
|
400kgs
|
700kgs
|
700kgs
|
800kgs
|
||||
Details Images
Application
Package and Delivery
Factory Product Exhibition
FAQ
Q1. Are you trading company or manufacture ?
A: We are professional manufacture and we have own trading office.
Q2. How do you control quality ?
A :1.Raw- material in checking.
2.Assembly.
3.Worldwid after service available.arrange our engineers to help you training and installation.
Q3. Do you have any certificate ?
A: Yes, per different customer's market need ,we can offer CE ,ISO etc certificate.
Q4: Can you use our brand?
A:Yes, OEM is available.
Q5. What's payment term ?
A: T/T, L/C, Western Union etc. Also we could accept USD, RMB, Euro and other currency.
A: We are professional manufacture and we have own trading office.
Q2. How do you control quality ?
A :1.Raw- material in checking.
2.Assembly.
3.Worldwid after service available.arrange our engineers to help you training and installation.
Q3. Do you have any certificate ?
A: Yes, per different customer's market need ,we can offer CE ,ISO etc certificate.
Q4: Can you use our brand?
A:Yes, OEM is available.
Q5. What's payment term ?
A: T/T, L/C, Western Union etc. Also we could accept USD, RMB, Euro and other currency.
Q6. How about your warranty?
A: One year for the whole machine, except consumable spare parts.
A: One year for the whole machine, except consumable spare parts.
Q7. How about your after-sales service ?
A: 1.Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3.Worldwid agents and after service avaiable.arrange our engineers to help you training and installation.
A: 1.Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3.Worldwid agents and after service avaiable.arrange our engineers to help you training and installation.
