Quick Details
-
Use:
-
Industrial
-
Place of Origin:
-
China Liaoning
-
Brand Name:
-
Chairborne
-
Model Number:
-
CDTERACK01
-
Depth:
-
1000-3000mm
-
Weight Capacity:
-
1000kg/level
-
Width:
-
1000-3000mm
-
Height:
-
1000-3000mm
-
Certification:
-
ce
-
Rack Company Type:
-
Factories,Professional Manufacturer
-
Rack Product warranty Lifetime:
-
ISO9001 ,ISO14001
-
Rack Product type:
-
2 Year More than 5 Years for normal use
-
Rack Surface treatment:
-
Assemble Corrosion Protection, Esd Protection
-
Rack surface treatment:
-
Powder Coated, Cold Galvanized
-
Rack color:
-
Blue,Orange,Grey,as Your Requirement
-
Rack Applicable industries:
-
Industrial Warehouse Storage ,Logistics Transport,Feed,Supermarket
-
Rack texture:
-
Steel Q235,stainless steel,aluminum,
-
Product Name:
-
Furniture Timber Storage Retractable Arm Cantilever Racking
Quick Details
-
Type:
-
cantilever racking
-
Material:
-
Steel
-
Feature:
-
Corrosion Protection
-
Use:
-
Industrial
-
Place of Origin:
-
China Liaoning
-
Brand Name:
-
Chairborne
-
Model Number:
-
CDTERACK01
-
Depth:
-
1000-3000mm
-
Weight Capacity:
-
1000kg/level
-
Width:
-
1000-3000mm
-
Height:
-
1000-3000mm
-
Certification:
-
ce
-
Rack Company Type:
-
Factories,Professional Manufacturer
-
Rack Product warranty Lifetime:
-
ISO9001 ,ISO14001
-
Rack Product type:
-
2 Year More than 5 Years for normal use
-
Rack Surface treatment:
-
Assemble Corrosion Protection, Esd Protection
-
Rack surface treatment:
-
Powder Coated, Cold Galvanized
-
Rack color:
-
Blue,Orange,Grey,as Your Requirement
-
Rack Applicable industries:
-
Industrial Warehouse Storage ,Logistics Transport,Feed,Supermarket
-
Rack texture:
-
Steel Q235,stainless steel,aluminum,
-
Product Name:
-
Furniture Timber Storage Retractable Arm Cantilever Racking

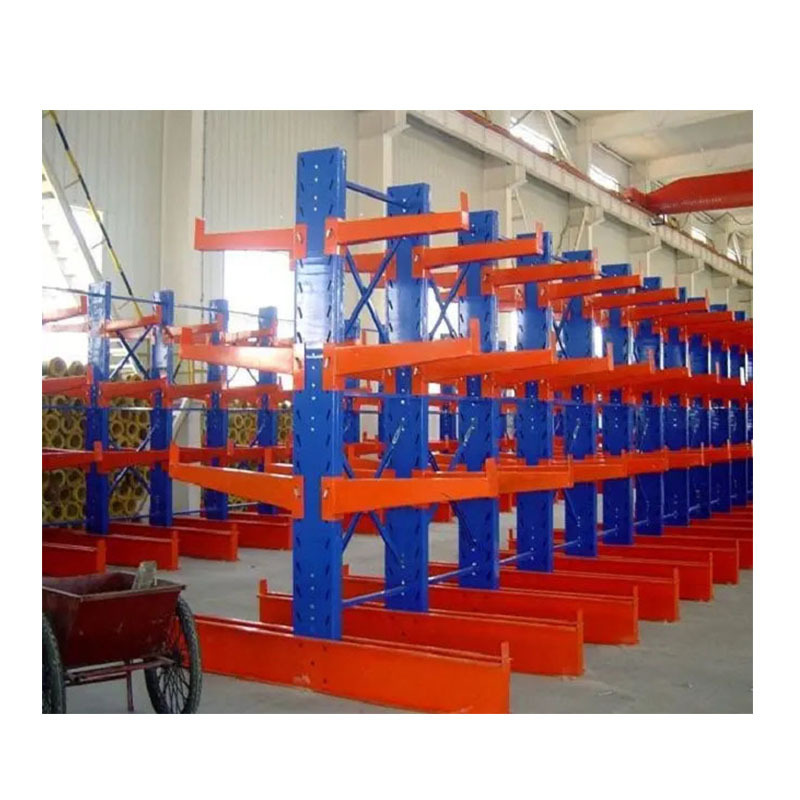

Furniture Timber Storage Retractable Arm Cantilever Racking
Roll out cantilever racking is composed of column, base, arm, transverse rod, oblique rod, top beam, transmission box and other parts.Pillar for thick wall rectangular tube, the base for section 200 x 200 of h-beam, cantilever fixed and adjustable part also in rectangular tube as raw material, the base and cantilever between columns and adopts high strength bolt, the cantilever fixed tube set of retractable arm, through joint on the corresponding transmission case the telescopic boom shake out, convenient access to goods.
Note
The value "L" in the above specification table shall be based on the site, and the number of cantilever layer n shall be according to the specific loading requirements.
Characteristic 1
This product is especially suitable for storing all kinds of longer materials.
Characteristic 2
The product has an independent retractable storage space, which can be used with lifting equipment for convenient access.
Characteristic 3
The single shelf can carry up to 5 tons, and the whole shelf can store dozens of tons of goods.
Characteristic 4
The cantilever is controlled to extend and retract through the corresponding shaft on the transmission box, which is safe and convenient.
Characteristic 5
Cantilever extends and retracts along a straight line to save space.
Theoretical experiment conclusion: the single arm carries 1000kg, and the maximum stress reaches 144Mpa, which belongs to the stress concentration point of the variable section, and the rest of the stress is between16Mpa~96Mpa, less than the yield strength of the material 235Mpa.
About Chairborne
Established in 2007, Chairborne Machinery Liaoning Co., Ltd. is one of the major logistics equipment designers and manufacturers in northern China,as well as a member of Asia Pallet System Federation .
With the professional technology ,what we offer is not only equipment but also a perfect solution to your logistics & storage. We are the right supplier to choose,accepting custom items including metal pallet,stillage,rack,roll container,wire mesh cage,etc. Welcome to inquire and any opinion from you is important.
Light-duty four layer cold roll steel warehouse storage rack
US $100-399USD / Piece | 1 Piece/Pieces (Min. Order)
1. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Fushun City, Liaoning Province, China, close to Shenyang City. You can fly to Shenyang airport directly. You are warmly welcome to visit us whenever you are available!
2. Q: What is the raw material of your products?
A: As general, the raw material of steel code is Q235. Other steel is also available to clients' requirements.
3. Q: What is the term of payment?
A: As general, 30% T/T down payment and balance before shipping.
4. Q: What is delivery time?
A: It depends on the order quantity and product types. As general, within 25 working days, for ordinary order quantity..
5. Q: Which port will be used as loading port?
A: Dalian port
6. Q: May I know the status of my order?
A: Yes. We will send you information and photos at different production stage of your order.
7. Q: Are sample order available?
A: Yes, sure!
8. Q: Is Galvanized Finish available?
A: Yes.
9. Q: How can I get your quick quotation?
A: As different clients and projects have different needs of product dimensions and specification, as general, for quick quotation, we need to know following info:
Required Pallet Racking Dimension: Height*Depth*Length?
Number of Levels?
Loading Capacity of each level?
Racking Quantity?
If you are not very sure of above info, please just let us know your storage needs. Accordingly, we'll be happy to provide with our professional proposed racking solutions for your kind reference.
