Quick Details
-
Model Number:
-
DOG-02FA
-
Measuring range:
-
0-20mg/L
-
Product name:
-
dissolved oxygen sensor
-
OEM Service:
-
Yes
-
Polarization time:
-
0-60℃
-
Calibration:
-
60days
-
Certification:
-
CE,ISO
-
Drift:
-
<2%month
-
zero oxygen:
-
<0.1mg/L
-
Temperature compensation:
-
PT100/PT1000/22K/2.252K/etc.
-
Housing material:
-
316L stainless steel/PVC
-
Type:
-
dissolved oxygen sensor
Quick Details
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
BOQU
-
Model Number:
-
DOG-02FA
-
Measuring range:
-
0-20mg/L
-
Product name:
-
dissolved oxygen sensor
-
OEM Service:
-
Yes
-
Polarization time:
-
0-60℃
-
Calibration:
-
60days
-
Certification:
-
CE,ISO
-
Drift:
-
<2%month
-
zero oxygen:
-
<0.1mg/L
-
Temperature compensation:
-
PT100/PT1000/22K/2.252K/etc.
-
Housing material:
-
316L stainless steel/PVC
-
Type:
-
dissolved oxygen sensor

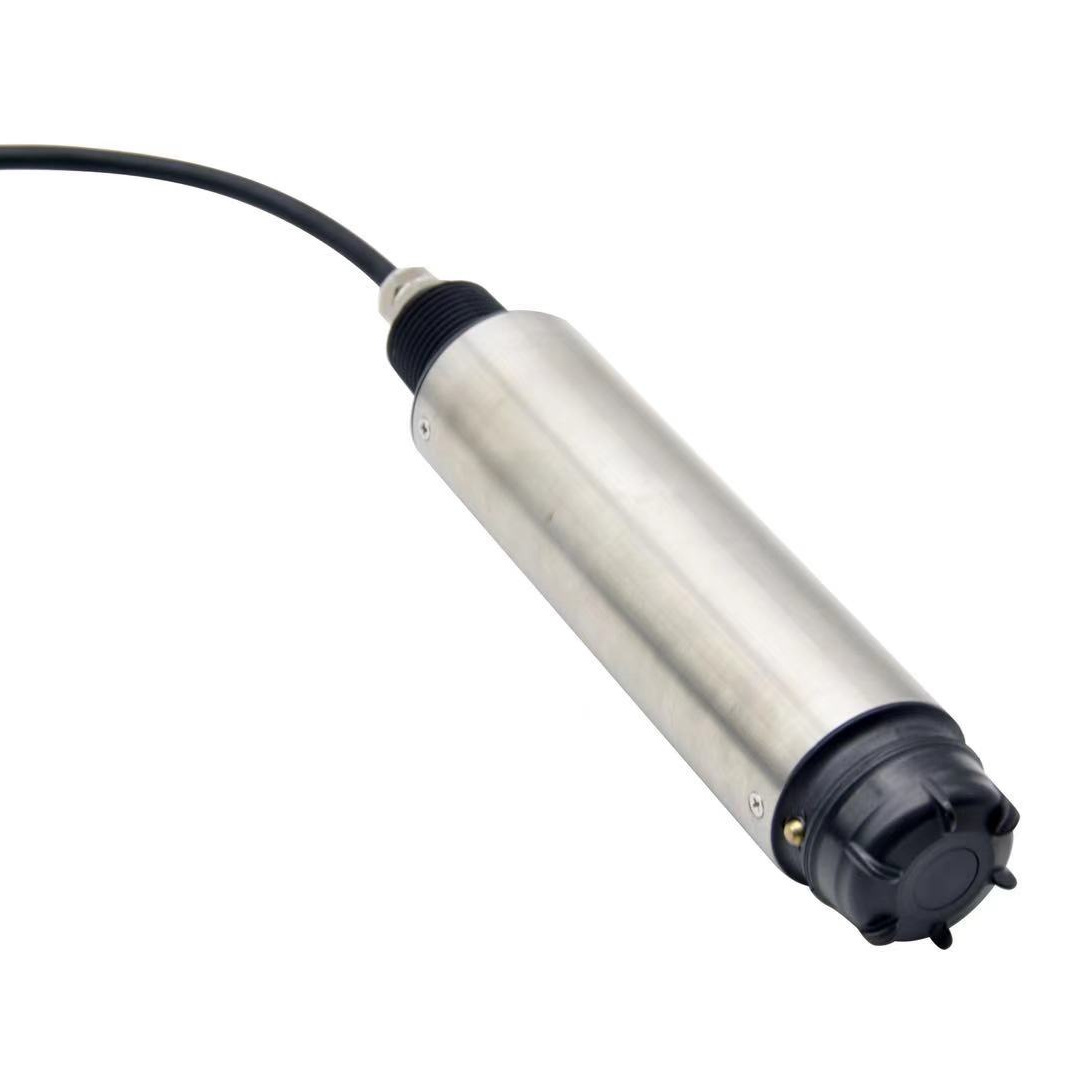

Online Optical Dissolved Oxygen sensor
Dissolved oxygen sensor uses fluorescence measurement of dissolved oxygen, blue light emitted by the
phosphor layer, a fluorescent substance is excited to emit red light, and the fluorescent substance and the
concentration of oxygen is inversely proportional to the time back to the ground state. The method uses a
measurement of dissolved oxygen, no oxygen consumption measurement, the data is stable, reliable performance,
there is no interference, installation and calibration simple. Widely used in sewage treatment plants each process,
water plants, surface water, industrial process water production and wastewater treatment, aquaculture and other
industries on-line monitoring of DO.,
Features:
1. The sensor uses a new type of oxygen-sensitive film with good reproducibility and stability.
Breakthrough fluorescence techniques, requires virtually no maintenance.
2. Maintain prompt the user can customize the prompt message is automatically triggered.
3. Hard, fully enclosed design, improved durability.
4. Use simple, reliable, and interface instructions can reduce operational errors.
5. Set a visual warning system to provide important alarm functions.
6. Sensor convenient on-site installation, plug and play.
| Technical Indexes | |
| Material | Body: SUS316L + PVC (Limited Edition), titanium (seawater version) |
| Measuring range | Dissolved oxygen:0-20 mg/L,0-20 ppm; Temperature:0-45℃ |
|
Measurement
accuracy |
Dissolved oxygen:measured value ±3%;
Temperature:±0.5℃ |
| Pressure range | ≤0.3Mpa |
| Output | MODBUS RS485 |
| Storage temperature | -15~65℃ |
| Ambient temperature | 0~45℃ |
| Calibration | Air autamatic calibration, sample calibration |
| Cable | 10m |
| Size | 55mmx342mm |
| Weight | about 1.85KG |
| Waterproof rating | IP68/NEMA6P |
In addition to this popular seawater dissolved oxygen electrode(DOG-209FYD), there is also a popular sewage dissolved oxygen electrode(DOG1209FA) . If you are interested, contact us to learn more.
