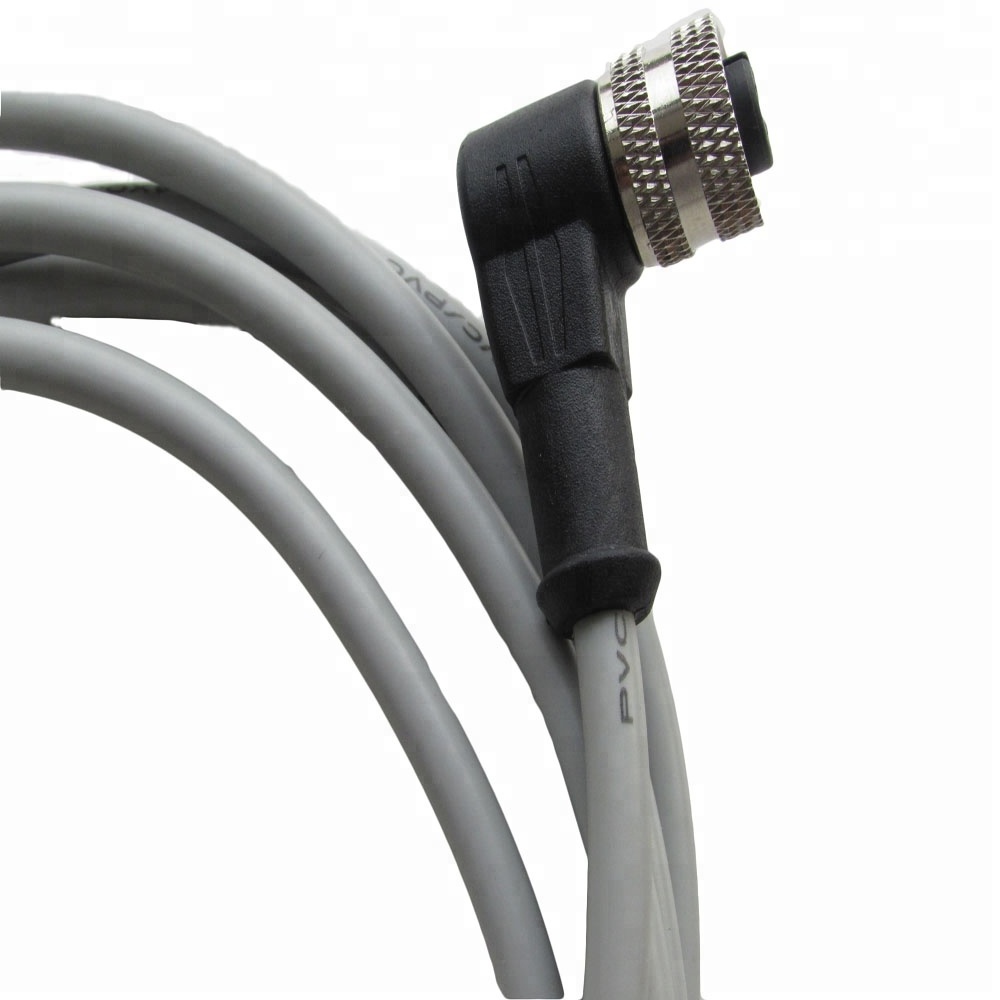

right angle connectors m12 4 pin female cable underwater lights marine

right angle connectors m12 4 pin female cable underwater lights marine

FOB Reference Price: Get Latest Price

≥20 Pieces

US $2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: SZ-EAUTO

Model Number:: m12 4 pin female cable

Screw material:: Brass

Contact number:: 3,4,5,8,12

Termination:: solder

Waterproof rating:: ip67/ip68

Shielded:: without shielded

Temperature:: -40℃~+85℃

Contact plating:: Gold

Rated Voltage:: 250V(4-pins)

Rated current:: 4A(4-pins)

Quick Details

Type:: ADAPTER

Application:: Automotive

Gender:: Female

Place of Origin:: Guangdong, China

Brand Name:: SZ-EAUTO

Model Number:: m12 4 pin female cable

Screw material:: Brass

Contact number:: 3,4,5,8,12

Termination:: solder

Waterproof rating:: ip67/ip68

Shielded:: without shielded

Temperature:: -40℃~+85℃

Contact plating:: Gold

Rated Voltage:: 250V(4-pins)

Rated current:: 4A(4-pins)

Product Description

Connector Detail

Item name	right angle connectors m12 4 pin female cable underwater lights marine
Number of contacts	3	4	5	8	12
Connector locking system	screw
Termination	solder
Degree of protection	IP67
Mechanical operation	>100 mating cycles
Upper temperature	~+80 ℃
Lower temperature	~-25 ℃
Rated voltage	250V	250V	125V	60V	30V
Rated impulse voltage	2500V	2500V	1500V	800V	500V
Pollution degree	3
Overvoltage categorie	Ⅱ
Material group	I
Rated current(40 ℃ )	4A	4A	4A	2A	1.5A
Contact resistance	≤ 3mΩ
Material of contact	Brass
Contact plating	Gold
Material of contact body	PA
Material of housing	Brass nickel plated

Brief summary-m12

Automation M12 A-Coded Connectors

Euro-style sensor connectors with M12 locking for factory automation, process control, industrial instrumentation, and commercial electronics. The Series offers many different cable connectors, panel-mounted receptacles, and accessories. Connectors have industry-standard A-coding .

Plastic, metal or stainless steel shells
360° shielding and IP 67 protection
3 to 12 contacts per connector
Contacts with solder, screw, or cage clamp termination

Sensor M12 B-Coded Connectors

The Series features B-coding, which ensures that B-coded connectors do not mate with standard A-coded connectors.

B-coding
Metal housings shielded and IP 67
4 or 5 contacts per connector
Contacts with screw termination

Sensor M12 D-Coded Connectors

The Series metal-shell connectors are for industrial networks and harsh commercial environments. They have industry-standard D-coding for Ethernet and Fieldbus use. The IP67 field-attachable connectors offer spring cage or screw termination, both aimed at providing quick and easy installations.
