Quick Details
-

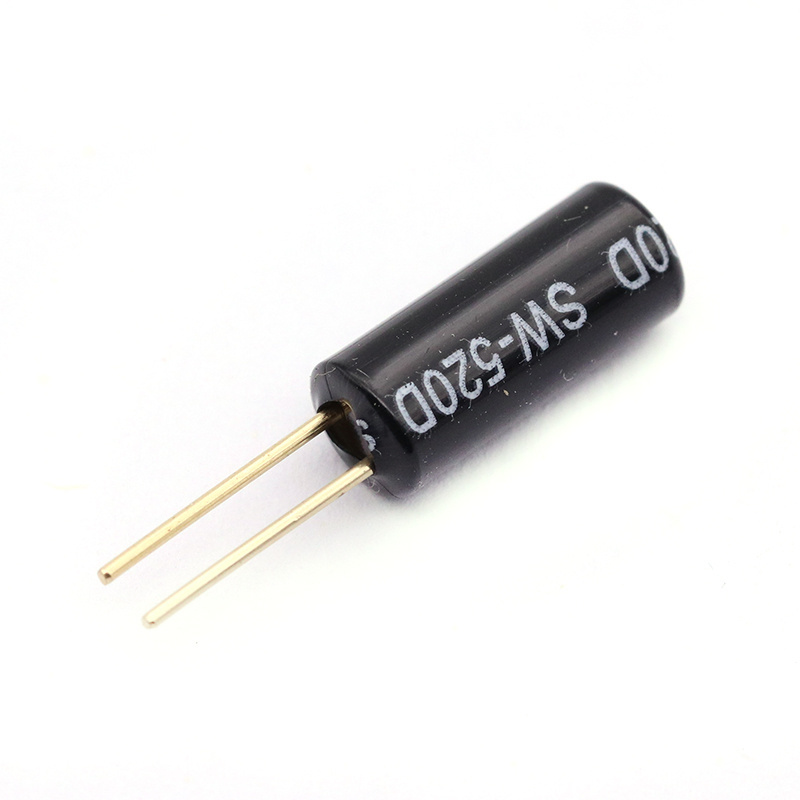

Model Number:
-
SW-520D
Quick Details
-
Whether the smart:
-
NO
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Made in China
-
Model Number:
-
SW-520D
Specification
|
item
|
value
|
|
Whether the smart
|
NO
|
|
Model Number
|
SW-520D
|
1, the switch is made of metal material, the electrical characteristics are similar to the mercury switch, but there is no mercury switch risk and environmental problems, and the same characteristics of a single guide when shaking, assembly and use is more convenient and safe;
2, working characteristics: when the switch is at rest, as shown in the figure (ON) end is lower than the level of 15 degrees, the switch is in the on-state; When the (OFF) end is 15 degrees below the level, the switch is in the OFF state; When shaken by external force to reach the shaking force, or set in the conduction Angle range, the electrical characteristics of the conductive foot will produce short or continuous conduction.
3, when the electrical characteristics to restore the open state (OFF), the switch setting environment must be static, and (OFF) the open end of the setting should be lower than the horizontal Angle;
4, all materials of this switch are made of environmentally friendly raw materials, in line with ROHS requirements;
5, when the OFF end of the switch is lower than the horizontal Angle of 15 degrees, it is difficult to trigger the conduction when shaking;
6, this switch is suitable for triggering small current circuit, not suitable for when the power switch;
7, the switch is sealed package, dustproof, waterproof;
8, the switch ball switch series of the best conduction effect, the highest sensitivity
