Quick Details
-
Weight:
-
1 KG
-
After-sales Service Provided:
-
Overseas service center available
-
Usage:
-
Oil Well
-
Certification:
-
API
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2.75*0.95*1.6m
-
Weight:
-
1 KG
-
After-sales Service Provided:
-
Overseas service center available
-
Usage:
-
Oil Well
-
Certification:
-
API
Products Description
Description
1)There are several drive modes, such as diesel + hydraulic torque converter (or hydraulic coupling gear box) + chain drive
compound , diesel + parallel operation with narrow V-belt etc, the power distributing and utilizing reasonable and high
efficiency.
2)Hydraulic disk brake or band brake is used as the main brake of drawworks, the assistant brake is electromagnetic eddy current brake. The drawworks is equipped with auxiliary drive device which can be used for mast lifting and laying down, also for hoisting the max. weight of drill string while the main drive fails; there is an interface of auto-bit-feed remained for rig upgrade.
3)Optionally, it can be equipped with frictional cathead or hydraulic cathead.
4)The arrangement mode of high front-low back is adopted, the drawworks, power and drive system are placed at low position, the rotary table and cathead on drill floor are driven through bevel gear box and cardan shaft.
drilling rig,land drilling rigs,drilling rig equipment....
Parameter
1)There are several drive modes, such as diesel + hydraulic torque converter (or hydraulic coupling gear box) + chain drive
compound , diesel + parallel operation with narrow V-belt etc, the power distributing and utilizing reasonable and high
efficiency.
2)Hydraulic disk brake or band brake is used as the main brake of drawworks, the assistant brake is electromagnetic eddy current brake. The drawworks is equipped with auxiliary drive device which can be used for mast lifting and laying down, also for hoisting the max. weight of drill string while the main drive fails; there is an interface of auto-bit-feed remained for rig upgrade.
3)Optionally, it can be equipped with frictional cathead or hydraulic cathead.
4)The arrangement mode of high front-low back is adopted, the drawworks, power and drive system are placed at low position, the rotary table and cathead on drill floor are driven through bevel gear box and cardan shaft.
drilling rig,land drilling rigs,drilling rig equipment....
Parameter
|
Model, drilling rig
|
|
ZJ30L
|
ZJ40L
|
ZJ50L
|
ZJ70L
|
||||
|
Nominal drilling depth, 127mm(5)DP,
m |
|
3000
|
4000
|
50000
|
7000
|
||||
|
Max. hook load (kN)
|
|
1700
|
2250
|
3150
|
4500
|
||||
|
drill line number
|
|
10
|
10
|
12
|
12
|
||||
|
Dia. Of wireline (mm)
|
|
29
|
32
|
35
|
38
|
||||
|
Max. pull of fastline, kN
|
|
200
|
280
|
350
|
487
|
||||
|
Drawworks
|
Model
|
JC30
|
JC-40
|
JC-50
|
JC-70
|
||||
|
|
Rated power, kW
|
560
|
735
|
1100
|
1470
|
||||
|
|
Gears
|
4+2R
|
4+2R
|
4+2R
|
4+2R
|
||||
|
Main brake
|
|
hydraulic disk brake, or band brake
|
|
|
|
||||
|
Assistant brake
|
|
electromagnetic eddy current brake
|
|
|
|
||||
|
Crown block
|
|
TC-170
|
TC-225
|
TC-315
|
TC-450
|
||||
|
Travelling block
|
|
YG-170
|
YC-225
|
YC-225
|
YC-450
|
||||
|
OD of sheaves for hoisting system
,mm(in) |
|
|
1005
|
1120
|
1524
|
||||
|
Hook
|
|
YD-170
|
DG-250
|
DG-250
|
DG450
|
||||
|
Swivel
|
Model
|
SL-170
|
SL-250
|
SL-250
|
SL-450
|
||||
|
|
dia.of stem bore (mm)
|
75
|
|
|
|
||||
|
Rotary
table |
opening dia. mm(in)
|
444.5(17 1/2)
|
520(20 1/2)
|
698.5(27 1/2)
|
952.5(37 1/2)
|
||||
|
|
Gears
|
4+2R
|
4+2R
|
4+2R
|
4+2R
|
||||
|
Derrick
(mast) |
Type
|
A
|
K
|
K
|
K
|
||||
|
|
Height (m)
|
41
|
43
|
45
|
45
|
||||
|
|
Max. load, kN(lbs)
|
1700
|
2250
|
3150
|
4500
|
||||
|
Substructure
|
Type
|
Module-mounted, or box on box
|
|
|
|
||||
|
|
drillfloor height, m
|
5/5.5
|
6/7.5
|
7.5
|
7.5
|
||||
|
|
clear height, m
|
4/4.5
|
5,1/6.3
|
6.3
|
6.24
|
||||
|
Mud pump
|
Model×number
|
F-1000×2
|
F-1300×2
|
F-1300×2 or
F1600×2 |
F1600×2
|
||||
|
|
drive mode
|
Diesels and compound
|
|
Diesels and compound
|
|
||||
|
Diesel power× number
|
|
810KW×2
|
810KW×3
|
810KW×3
|
810KW×4
|
||||
Marketing Campaign

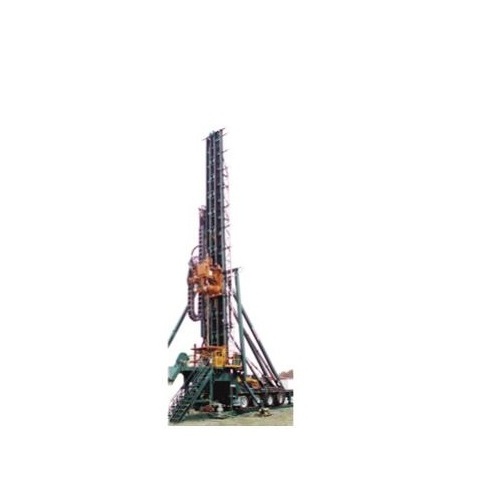

Details Images
Product packaging
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
