- Product Details
- {{item.text}}
Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
450 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
OEM
-
Place of Origin:
-
China
-
Product name:
-
4g bonding router
-
System:
-
OpenWRT
-
Interface:
-
4 LAN /1 WAN
-
Chipset:
-
IPQ4029
-
Antenna:
-
14* 5dBi Antennas
-
Keywords:
-
multi sim card wifi router
-
Frequency:
-
2.4GHz +5.8GHz
-
Flash:
-
SPI 16MB+NAND 1GB
-
RAM:
-
512MB DDR3
-
Features:
-
support 5G
Quick Details
-
Max. LAN Data Rate:
-
1000Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G & 5G
-
2.4G Wi-Fi Transmission Rate:
-
450 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
OEM
-
Place of Origin:
-
China
-
Product name:
-
4g bonding router
-
System:
-
OpenWRT
-
Interface:
-
4 LAN /1 WAN
-
Chipset:
-
IPQ4029
-
Antenna:
-
14* 5dBi Antennas
-
Keywords:
-
multi sim card wifi router
-
Frequency:
-
2.4GHz +5.8GHz
-
Flash:
-
SPI 16MB+NAND 1GB
-
RAM:
-
512MB DDR3
-
Features:
-
support 5G

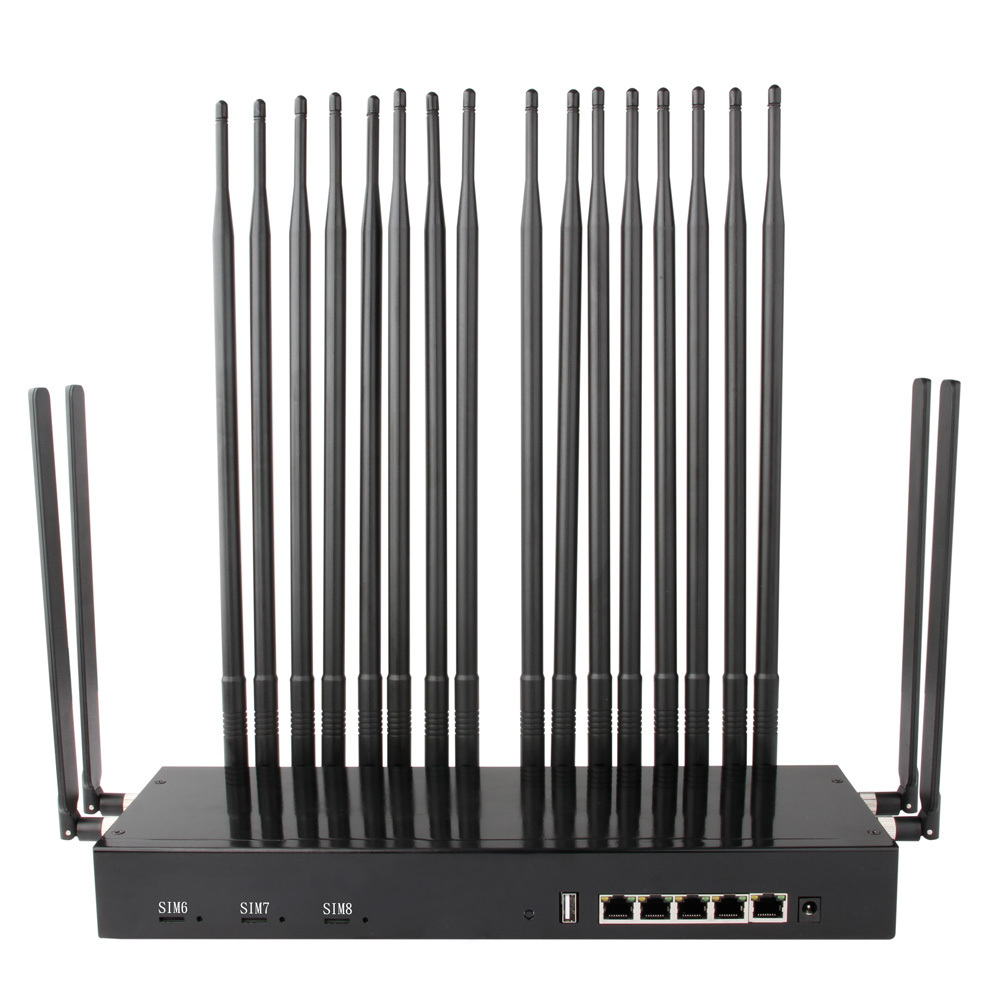

Enterprise-class high-speed uplink 4G 5G multi-card binding router with 8 SIM cards
Support 8 SIM cards 4G binding aggregation, the highest uplink speed can reach about 170Mbps.
It is suitable for scenarios with high uplink speed requirements and 4G stability, such as live broadcast.
Kindly remind that server is necessary to realize bandwidth aggeragation.
Minimum configuration requirements of Aggregation server:
1) Dual-core 4g memory
2) System 16.04 ubuntu 64bit
3)
Server uplink speed 80Mbps~200Mbps.
Loading Balance
MPTCP

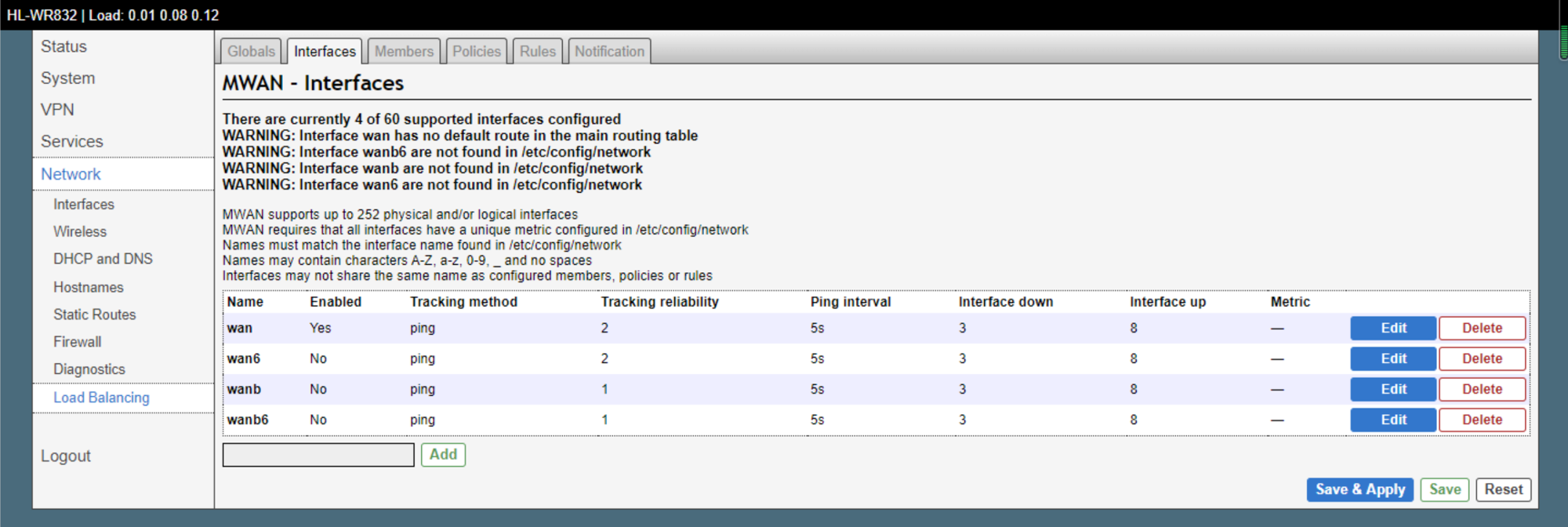

MWAN
HL-WR832-A Uses Enterprise CPU Qualcomm IPQ4029 Chipset Solution quad-core ARM Cortex-A7 CPU, Main frequency is up to 761.8 MHZ, strong performance; Support IEEE 11 N/G/B/A/AC wireless standard, dual-frequency concurrent rate is up to 1300 Mbps; 2.4GHz and 5.8GHz Wi-Fi all uses separate FEM design, guarantee wireless signal stable; Support IEEE 802.3/3u standard, 1WAN + 4LAN 1000M adaptive network port, support flipping flip (Auto MDI/MDIX ); Built-in PCI-E And M.2 Slot, SIM card port-built-in also extra position, according to structure determine; DC power supply, supply voltage support 12V to 36V, support USB3.0 and TF card port; Support web page "A key brush mode, user-effortless for brush, support a key RESET feature; Support variety surfing the internet mode, PPPoE, dynamic IP, static IP; Support WEP, WPA, WPA2 and safe encryption mode; WIFI uses 2X2 multi-user MIMO (Multi-user Multiple N put Multiple output) architecture, composite IEEE802.11 N/G/B/A/AC wireless networking protocol, dual band concurrent wireless transmission rate is up to 1300Mbps, standard configuration 5dbi high gain omnidirectional antenna, in open environment, wireless signal coverage radius is more than 200M, Wireless capability exceeds 80 users.

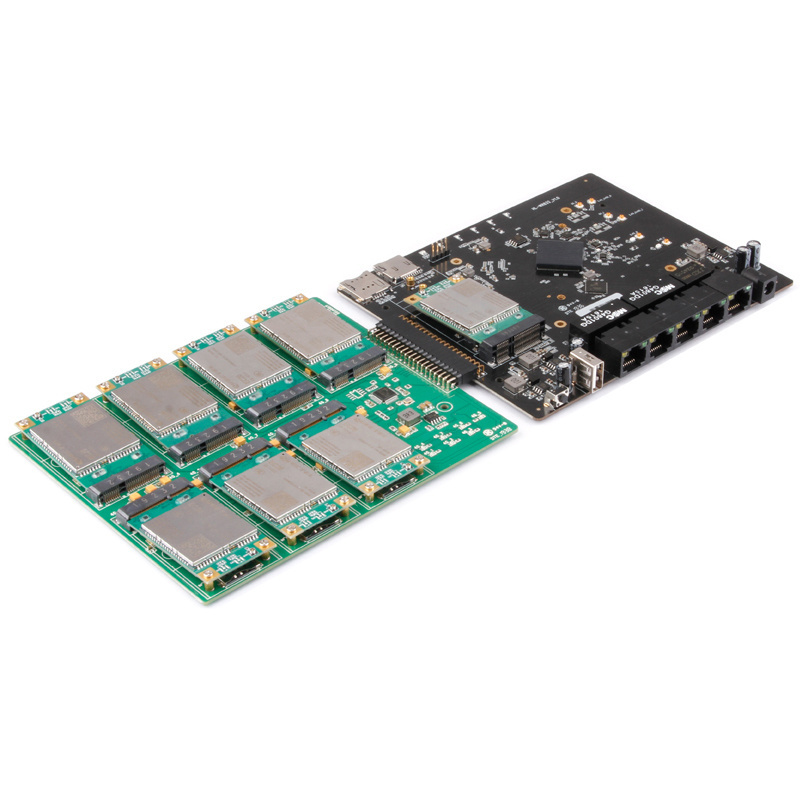

The router reserves 40 PIN pin interface to support external functional motherboards. (We have developed a baseboard that supports 7 PCI-E slots to support 7 LTE modules, providing more comprehensive stability for special industries)
1)To solve the Wi-Fi coverage, the router adds an additional four high-power PAs, which can reach 26dbm at 2.4GHz and 23dbm at 5.8GHz. With High-performance antennas can provide longer-distance transmission.
2) In terms of hardware design, the router uses high-speed FALSH and RAM, we use SPI and NAND combination SPI/16MB+NAND/1GB and RAM/512MB
3）For the of the new 5G communication mode, we have added the mainstream M.2 interface to achieve seamless connection with the 5G communication module.（It also supports LTE-A modules for CAT6, CAT12, CAT18, and CAT20.）
Comply with IEEE 802.11ac/a/n/g/b, Dual frequency concurrency 1300Mbps
1x 10/100/1000M WAN Port
4x 10/100/1000M LAN Port
500mW high power, more wireless coverage
With PCI-E/M.2 Slot Support 5G/LTE/LTE-A Module
Reserves 40 PIN pin interface to support external functional motherboards
With function of build in firewall, IP filter, URL filter and MAC filter
Comply with IEEE 802.3ac standard, beamforming technology, RF power adjustment and frequency analyzer for better application in different environment
Support DDNS, VPN pass through, Port forwarding and DMZ host
Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security
Support 40 to 65 devices at the same time
