Quick Details
-
Sheath Color:
-
Grey/White/Blue/Black or as request
-
Conductor Material:
-
BC/CCA/CCAG
-
Jacket Material:
-
PVC/LSZH/ WDZ-PVC/LDPE,etc
-
Length:
-
100m/200m/300m/305m
-
Application:
-
cctv/cumputer/cabling system/Multimedia/Industrial
-
Insulation OD:
-
0.93±0.05 HDPE
-
Certification:
-
CE RoHS CCC TLC ISO9001 TUV SGS
-
Sheath OD:
-
5.2±0.2 PVC
Quick Details
-
Brand Name:
-
GHT
-
Model Number:
-
UTP
-
Place of Origin:
-
Guangdong, China
-
Sheath Color:
-
Grey/White/Blue/Black or as request
-
Conductor Material:
-
BC/CCA/CCAG
-
Jacket Material:
-
PVC/LSZH/ WDZ-PVC/LDPE,etc
-
Length:
-
100m/200m/300m/305m
-
Application:
-
cctv/cumputer/cabling system/Multimedia/Industrial
-
Insulation OD:
-
0.93±0.05 HDPE
-
Certification:
-
CE RoHS CCC TLC ISO9001 TUV SGS
-
Sheath OD:
-
5.2±0.2 PVC

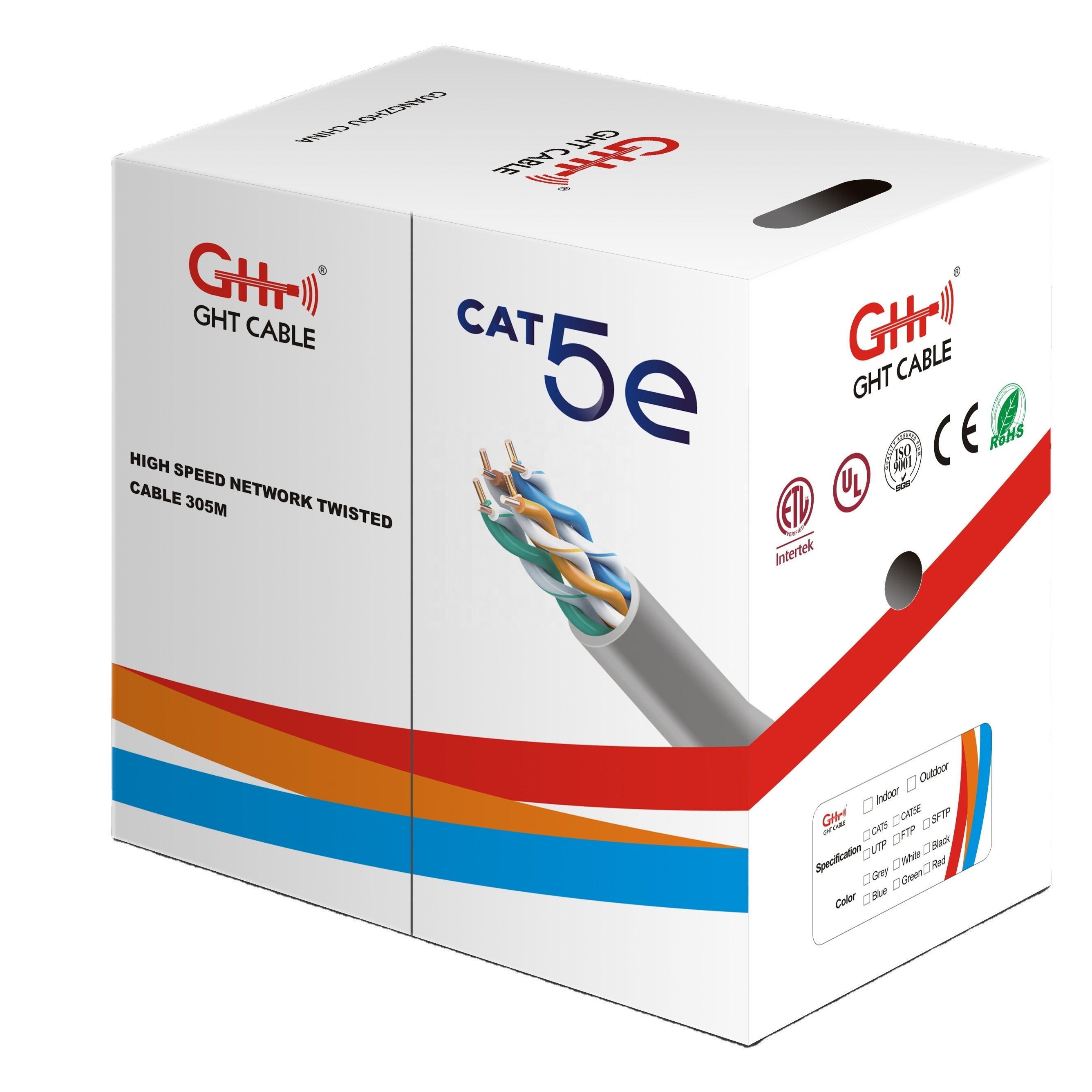

4 pairs bc cat5 utp cable CU CCA UTP FTP SFTP PASS test Cat5e indoor 100/200/305M lan cable price per meter from factory
Specifications:
1) Product Type: Cat5e UTP
2) Conductor Material: BC /CCA/CCAG
3) Insulation: 0.93 ±0.05 HDPE/LDPE
4) Jacket: PVC/LSZH/WDZ-PVC/LDPE
5) Jacket Color: White/Gray/Blue or as customer’s request
6) Certificates: CE RoHS CCC TLC ISO9001 TUV SGS
Pls find the different of indoor and outdoor details as below:
|
No. |
Item |
Conductor |
Pairs No. |
Insulation Dia(mm) |
Jacket Dia(mm) |
|
1 |
UTP CAT5e(Indoor) |
24AWG |
4 |
0.915±0.02 |
5.2±0.02 |
|
2 |
UTP CAT5e(Outdoor) |
24AWG |
4 |
0.915±0.02 |
5.8 ±0.02 |
Electrical characteristics:
1) Communicate rate: 100 MHZ
2) Insulated Resistance: ≥5000M Ω .km at 20°C
3) Working temperatures: -20 to 75°C
4) Impedance: 9.38 Ω /100M
5) Reference standard: YD/T 1019-2013; UL444; UL1581;TIA/EIA-568B;IEC 60332-1 ;
6) ISO/IEC11801; (Performance and superior to the above standards).
Application:
1) Computer network cabling project
2) Broadband network communication
3) Audio and data transmission
4) Ethernet network
5) Digital ISDN Network and ATM 155Mbps Network
| Length*Width*Height(cm) | 1*20GP(ROLLS) | 1*40HQ(ROLLS) | |
| CAT5e indoor | (2pcs)43*35*35cm | 1040 | 2560 |
| CAT5e outdoor | (2pcs)49*37*37.5cm | 800 | 1950 |
| CAT6 indoor | (2pcs)47*39.5*40cm | 727 | 1800 |
| CAT6 outdoor | (2pcs)47*41*40cm | 690 | 1728 |
