Quick Details
-
Core Components:
-
3-axis dispensing robot, Machine gantry and body, Dispensing system, Dispensing controller, Computer Control System, CCD Visual
-
Work area:
-
380*380*100mm
-
Max payload:
-
XY20kg/Z15kg
-
Max travel speed:
-
500mm/sec(XY)/200mm/sec(Z)
-
Transfer method:
-
Stepper motor, belt, precision rail
-
XYZ position accuracy:
-
±0.008mm
-
Resolution:
-
0.01
-
Memory storage:
-
120G
-
Operating method:
-
Windows
-
Motor:
-
Servo motor, Ball- screw
-
Movement patterns:
-
3 axis spot to spot, continue line, arc
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SECOND
-
Weight (KG):
-
45
-
Core Components:
-
3-axis dispensing robot, Machine gantry and body, Dispensing system, Dispensing controller, Computer Control System, CCD Visual
-
Work area:
-
380*380*100mm
-
Max payload:
-
XY20kg/Z15kg
-
Max travel speed:
-
500mm/sec(XY)/200mm/sec(Z)
-
Transfer method:
-
Stepper motor, belt, precision rail
-
XYZ position accuracy:
-
±0.008mm
-
Resolution:
-
0.01
-
Memory storage:
-
120G
-
Operating method:
-
Windows
-
Motor:
-
Servo motor, Ball- screw
-
Movement patterns:
-
3 axis spot to spot, continue line, arc
Product Description
Features:

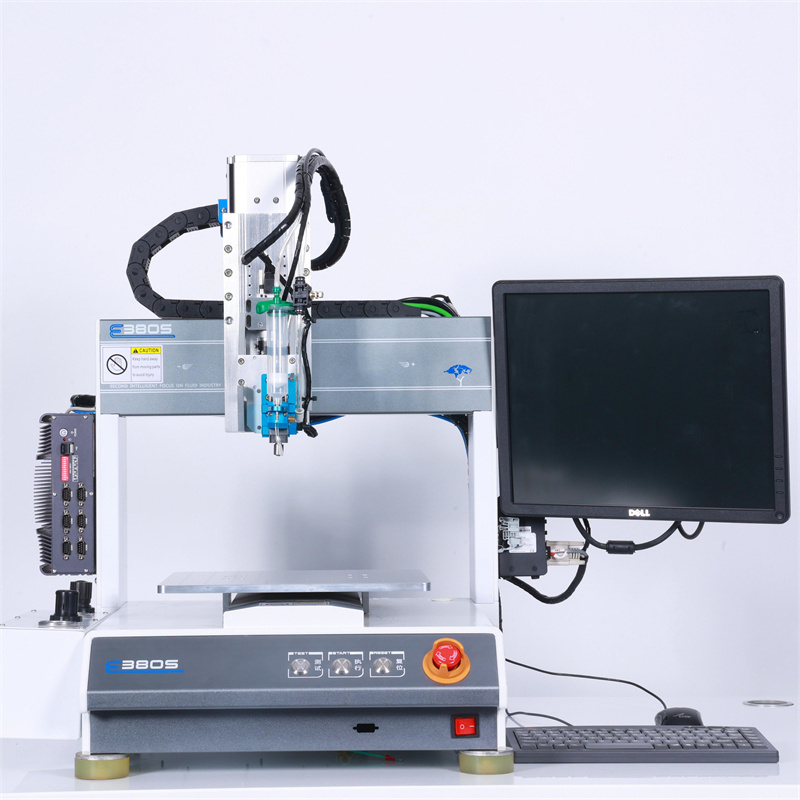

1.Durable fully automatic 3 axis dispensing robot.
2.Suit for UV glue, solder paste, red glue...etc.
3.One-piece die-casting aluminum boday.
4.User friendly teaching pendant.
5. Can be equipped with different glue supply systems
2.Suit for UV glue, solder paste, red glue...etc.
3.One-piece die-casting aluminum boday.
4.User friendly teaching pendant.
5. Can be equipped with different glue supply systems
Details
Brass Connector
The brass material has good corrosion resistance and chemical resistance, can be well adapted to various glues, durable for a long time.
Syringe dispensing
Suitable for 5cc, 30cc, 50cc syringe packaging glue, convenient and easy to replace.
One-piece die-casting aluminum body
Lighter in weight, saves the use of screws, and the structure is more stable and durable.
PC control system
PC control with CCD industrial camera, more accurate positioning and easy to programming, user-friendly self-developed dispensing
software.
software.
Dispensing controller
Precisely control the size of the air pressure to ensure the stability of the amount of glue.
Precision needles
Precision dispensing needles, stainless steel needles, flexible needles, large-flow oblique needles, etc.
Applications
Specification
|
Model
|
SEC-E380SP
|
SEC-E480SP
|
SEC-E580SP
|
||
|
Working range
|
380(X)*380(Y)*100(Z）mm
|
480(X)*480(Y)*100(Z）mm
|
580(X)*580(Y)*100(Z）mm
|
||
|
Max payload
|
20kg(Y)/15kg(Z)
|
|
|
||
|
Max travel speed
|
500mm/sec(XY)/200mm/sec(Z)
|
|
|
||
|
Driven mode
|
Servo motor, Ball- screw
|
|
|
||
|
XYZ position accuracy
|
±0.015mm
|
|
|
||
|
Resolution
|
0.01
|
|
|
||
|
Memory storage
|
120G
|
|
|
||
|
Operating method
|
Windows
|
|
|
||
|
Motor
|
Servo motor, Ball- screw
|
|
|
||
|
Monement patterns
|
3 axis spot to spot, continue line, arc
|
|
|
||
|
I/O
|
1 input, 4 output(support expansion)
|
|
|
||
|
Power supply
|
AC 22V 50/60 Hz 1 KW
|
|
|
||
|
Working environment
|
Temperature 0~40℃，Humidity 20%~90%
|
|
|
||
|
Weight
|
Approx 48kg
|
Approx 60kg
|
Approx 75kg
|
||
|
Machine demension
|
520*583*645mm
|
620*683*645mm
|
720*783*645mm
|
||
