Quick Details
-
Product name:
-
Hot sell automatic swing barrier for car parking
-
Material:
-
Stainless steel
-
Dimension:
-
L1970*W280*H950mm
-
Power voltage:
-
AC220±10% V,50HZ
-
Input interface:
-
12V level signal or pulse width>100ms 12Vpulse signal
-
Drive current:
-
>200mA
-
Communication interface:
-
RS485 standard
-
Passing speed:
-
≤15people/min
-
Work environment:
-
Indoor, outdoor
-
Working temperature:
-
-30°C~+70°C
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SEWO
-
Model Number:
-
B6-316,B6-312,B6-318,B6-319
-
Product name:
-
Hot sell automatic swing barrier for car parking
-
Material:
-
Stainless steel
-
Dimension:
-
L1970*W280*H950mm
-
Power voltage:
-
AC220±10% V,50HZ
-
Input interface:
-
12V level signal or pulse width>100ms 12Vpulse signal
-
Drive current:
-
>200mA
-
Communication interface:
-
RS485 standard
-
Passing speed:
-
≤15people/min
-
Work environment:
-
Indoor, outdoor
-
Working temperature:
-
-30°C~+70°C

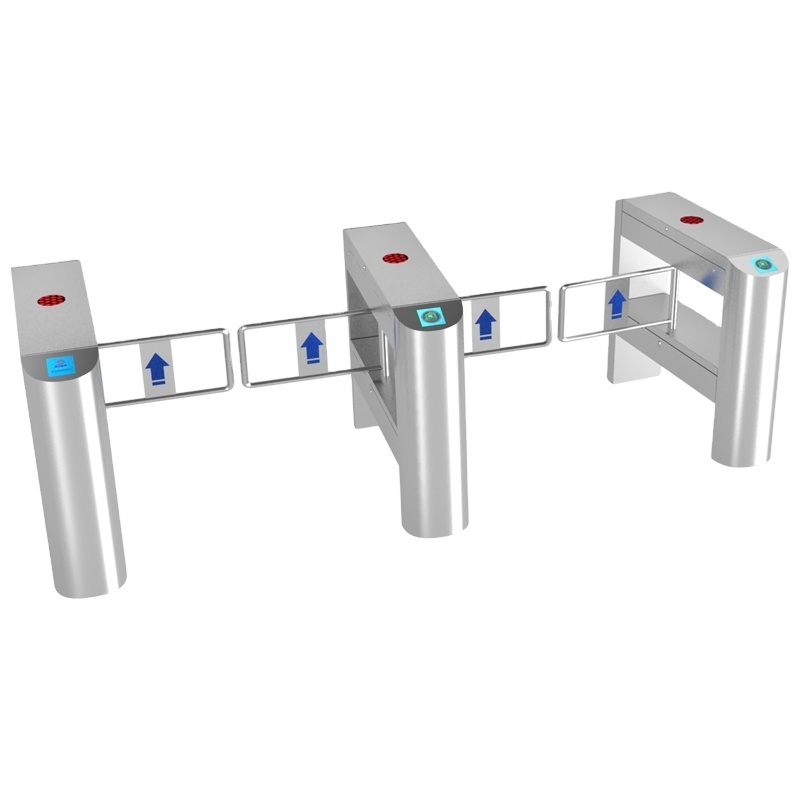

SEWO Electronic Entrance and Exit Access Barrier Control Gate Turnstile Swing
Brief Introduce:
Swing turnstiles are mainly used in parks, subway, customers, airport, bus station, office building, scenic spot, community, attractions, and exhibition hall doors, residential, Construction Sites, Industrial Plants, Marquee Golf Tournaments, State Fairs,Special Sporting Events and Festivals!
Functions:
1.High secure level and widely applications.
Our flap barrier gate will limit shoplifting and theft chances in most self-service places. and offer a higher security level for owners. Due to this feature, swing barrier gates are widely used in Supermarket, shopping malls, Library, Hospital ,Goverment authority,etc.
2.Anti-bump, Anti clip,anti-tailgating,anti-intrusion.
During operation if the swing arm meets any resistance, it will stop immediately. After pre set time, the arm will return to close position. This function effectively prevents pedestrian especially children from bumping, clipping, striking,etc. Illegal pass like intrusion, Tailgating,piggyback,etc will be detected and prohibitted.
3.Easy installation and free maintenance.
This swing barrier gate can be easily installed and no extra supporting apparatus will be needed. No special maintenances will be needed after it starts working.
4.More intelligent.
Self-examing and pre-set time operations allow our swing barrier gates more intelligent and convenient in working. If there is no passing through in pre-set time, it will return to close status. When in fire or power failure, the door will open automatically.
5.Multiple access control .
Our swing barrier gate is compatible with international standard RS485 Intereface. This enablles its widely accomodating to all prevailing softwares in industry and supports almost all types of access control like RFID cards,Bar codes, Biometric ,etc.
6.Bi directional passing through and high passing effeciency.
Bi-directional passing through reduces the need for more gates. High passing speed and accomodation for wheel
Chair, strollers,etc increase the passing effeciency.
Features :
(1) Directional VFD Optical Signals----Green Arrow or Red Cross signage (2) Only one person can pass with one card (3) Collect the break-in information (4) Installed in indoor or outdoor (5) Well lightning and grounding (6) Multi-working mode----Forbidden, Controlled or Free Passing optional (7) Easily integrated with any type of readers---such as Magnetic card, Barcode card, RFID Card and so on (8) Card-swiping memory function (9) Statistics collection automatically (10)Manual release when meet the outside push (11) Always open or close mode. In an emergency, the passage will be freely pass automatically (12) Bi-directional passing or single way passing (13) Self-inspection and alarm (14) Can program the running status online by setting the built-in keys (15) LED Counter, Direction indicator (16) Infrared detector to sense the passing status.
|
SEWO B6 Series Swing Gate Technical parameters
|
|
|
|
|||
|
Overall dimension
|
1200*280*980mm
|
|
|
|||
|
Weight
|
80kg
|
|
|
|||
|
Model No.:
|
SEWO-B6-316 ; SEWO-B6-312; SEWO-B6-318; SEWO-B6-319
|
|
|
|||
|
Passage Width
|
600~900mm
|
|
|
|||
|
Housing material
|
SUS(304#)
|
|
|
|||
|
Working voltage
|
AC220V±10%,50HZ±10%
|
|
|
|||
|
Drive motor
|
DC brushless motors(24V)
|
|
|
|||
|
MCBF
|
5,000,000 cycle
|
|
|
|||
|
Communication interface
|
TCP/IP
|
|
|
|||
|
Passing speed
|
45 people/min
|
|
|
|||
|
Control Type:
|
IC/ID card, QR Code, Face Recognition, Finger Print
|
|
|
|||
|
Operating time
|
0.4s
|
|
|
|||
|
LED Indicator
|
Red, Green
|
|
|
|||
|
Working environment
|
Indoor; Outdoor (with shelter)
|
|
|
|||
|
Working temperature
|
-25°C~70°C
|
|
|
|||
|
Relative humility
|
≤95%, no-condensation
|
|
|
|||
|
Guarantee
|
1 Year
|
|
|
|||
