Quick Details
-
Feed Mechanism:
-
Walking Foot
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SHENPENG
-
Power:
-
550W
-
Overall Dimensions:
-
1000*550*1200mm
-
Weight (KG):
-
145 KG
-
Product Type:
-
industrial heavy-duty sewing machine
-
Presser Foot Lift by hand:
-
14mm
-
Needle bar stroke:
-
58mm
-
Working Space:
-
220X420mm
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Online support
-
Marketing Type:
-
Hot Product 2020,2021
-
Certification:
-
ISO9001,CE
-
Sewing Thickness:
-
0-14mm(15mm-20mm available with special order)
Quick Details
-
Type:
-
Industrial Sewing Machine
-
Max. Sewing Thickness:
-
20mm
-
Stitch Length:
-
0-14mm
-
Feed Mechanism:
-
Walking Foot
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SHENPENG
-
Power:
-
550W
-
Overall Dimensions:
-
1000*550*1200mm
-
Weight (KG):
-
145 KG
-
Product Type:
-
industrial heavy-duty sewing machine
-
Presser Foot Lift by hand:
-
14mm
-
Needle bar stroke:
-
58mm
-
Working Space:
-
220X420mm
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Online support
-
Marketing Type:
-
Hot Product 2020,2021
-
Certification:
-
ISO9001,CE
-
Sewing Thickness:
-
0-14mm(15mm-20mm available with special order)
SHENPENG FGB6800 industrial heavy duty sewing machine (lock stitch)
Applications
SHENPENG FGB6800 industrial heavy duty sewing machine (lock stitch) is suitable for sewing PP woven bag,FIBC ,container bag,bulk bag and so on .
Features
1.1-needle 2-threads lockstitch
2.Speed 1,000 S/Min
3.Max. Sewing thickness 20mm
4.Big feed force basing on bottom and top feed
The special presser lifting mechanism of FGB6800 has applied for the National Patent of Invention.
Specifications
|
Model |
FGB6800 |
|
|
Sewing Speed |
1,000r.p.m |
|
|
Max. Sewing Speed
|
1,200r.p.m |
|
|
Stitch length |
0-14mm |
|
|
Needle bar stroke |
58mm |
|
|
Presser foot lift |
By hand |
14mm |
|
Max. |
20mm |
|
|
Working Space |
220X420mm |
|
|
Lubrication |
Manual |
|

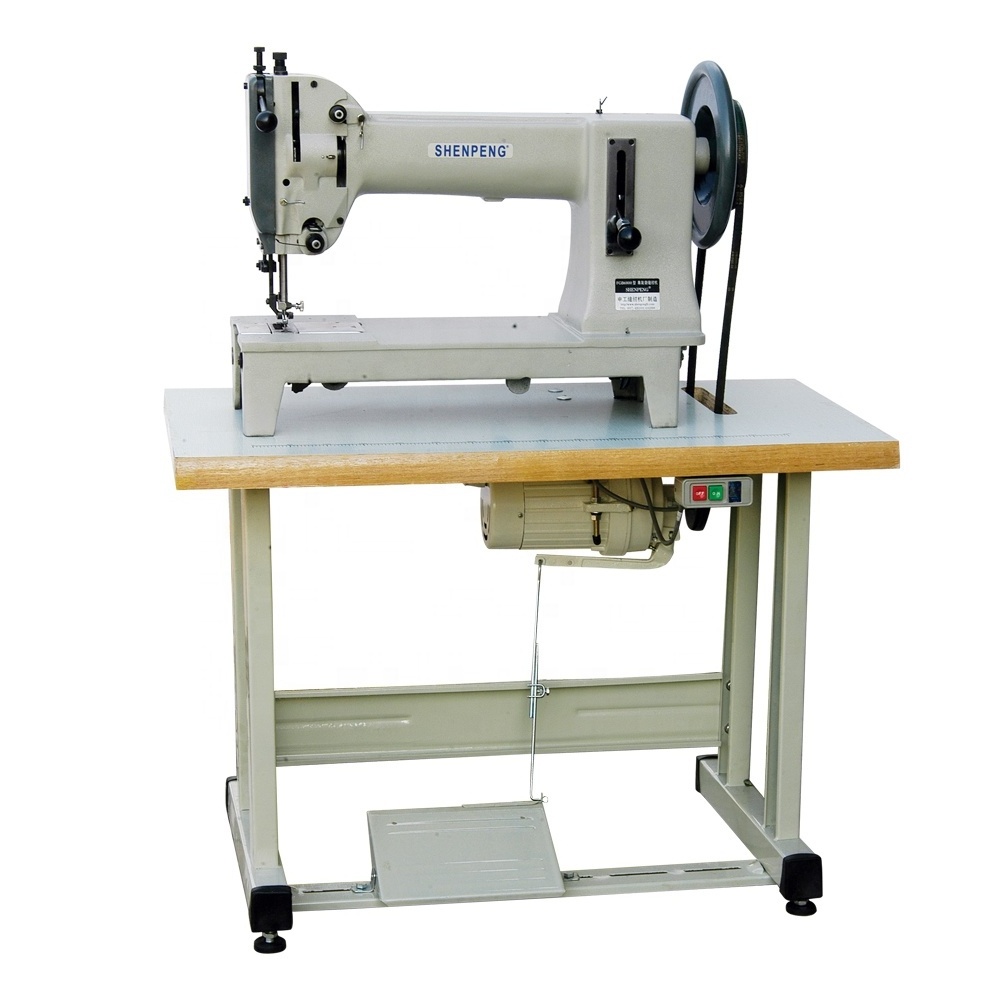

FGB6800 Machine Head ,Table And Motor
PP Bag Producers Installation FGB6800 A Lot
Table And Motor
FGB6800 Sewing Ability
