Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
Ezcad2/Ezcad3
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WORLDSLASER
-
Weight (KG):
-
45 KG
-
Marking Area:
-
110mm*110mm/200mm*200mm/300mm*300mm
-
Core Components:
-
Laser source
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, BMP, Dwg, DXF, PLT, Dst
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
Ezcad2/Ezcad3
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WORLDSLASER
-
Weight (KG):
-
45 KG
-
Marking Area:
-
110mm*110mm/200mm*200mm/300mm*300mm
-
Core Components:
-
Laser source

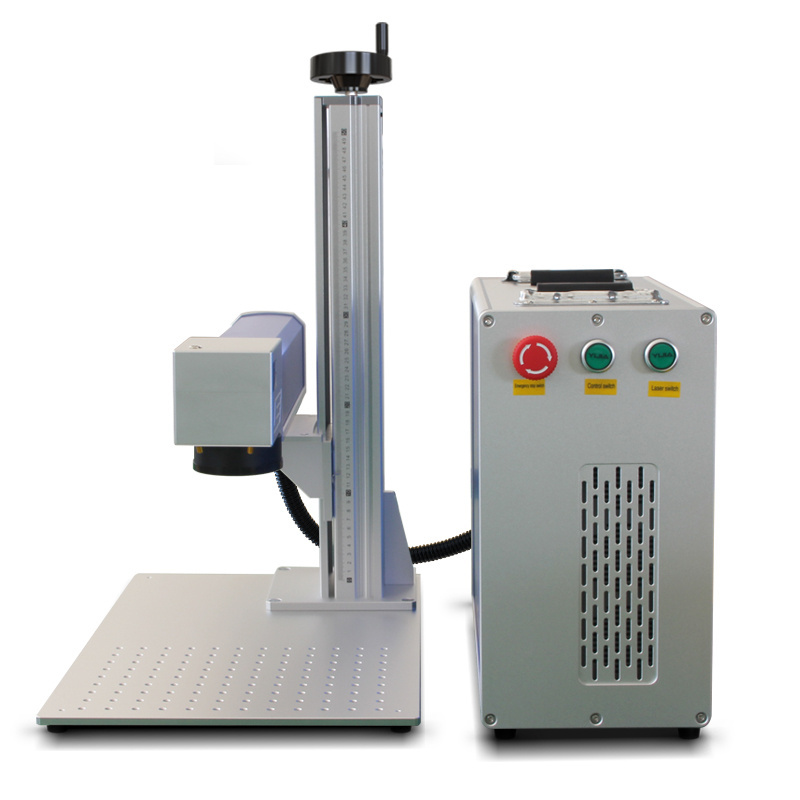

Fiber Laser Marking Machine 20W 30W 50W
Laser Source:JPT/Raycus/MAX
A fiber laser marking machine is also known as a fiber laser marker, fiber laser engraving machine, etc. The fiber laser marker is a type of CNC laser marking machine system which utilizes a fiber laser beam to make a permanent mark on the surface of a wide range of metal and non-metal materials. The laser marking technologies are widely used in industrial manufacturing applications, school education, home business, and so forth.
Advantages:
Metal Deep Engraving
Black and color marking on stainless steel.
Metal surface processing.
Peeling coating.Aluminum black marking.
Semi-conductor&electronics industry applications.
Large area engraving.
Excellent marking effect finely.
Metal Surface Processing
The machine can be compatible with software files such as Coredraw, AutoCAD, Photoshop;PLT,PCX,DXF,BMP,etc supported.
Sample
Applicable Material:
Carbon Steel, Aluminum, Stainless Steel, Brass, Copper,Gold, Silver, etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.
Specification
|
Type specification
|
KT-20
|
KT-30
|
KT-50
|
KT-100
|
|||
|
Wave length of laser
|
1064nm
|
|
|
|
|||
|
Laser repetition frequency
|
20kHz~100kHz
|
|
|
|
|||
|
Laser power
|
20W
|
30W
|
50W
|
100W
|
|||
|
Marking scope
|
110*110 /150*150 /200*200/300*300mm
|
|
|
|
|||
|
Laser sources
|
Fiber Laser
|
|
|
|
|||
|
Laser Head
|
Scanning head
|
|
|
|
|||
|
Minimal character
|
0.01*0.01mm
|
|
|
|
|||
|
Marking speed
|
≤8000mm/s
|
|
|
|
|||
|
Repeated accuracy
|
0.01mm
|
|
|
|
|||
|
Cooling ways
|
Air Cooling
|
|
|
|
|||
|
Power supply
|
220V/ 50Hz/2kVA
|
|
|
|
|||
|
Process Material
|
All kinds of metal and part of Non-metal Materials
|
|
|
|
|||
|
Support format
|
PLT, BMP, DXF, JPG, TIF, AI etc
|
|
|
|
|||
|
Package
|
Standard Crate for export
|
|
|
|
|||
Details
Raycus/JPT 20W 30W 50W Laser Source
Clear and delicate marking effect, low energy consumption, stable and high-speed marking of various patterns on various materials.
BJJCZ Cotrol Card & Ezcad Software
The interface is simple, the functions are complete, and the operation is simple, and it is suitable for win7, win8, win9, win10 system.
Double Red Light Positioning
Dual red light positioning can help you find the focal length faster.
Fields Lens 100mm*100mm~300mm*300mm
The finest optical materials in the world. Special housing designs to optimize performance. Designs featuring 1 to 5 optical elements. Low loss AR coatings, precision optical elements.
