Diesel hydraulic drilling machine characteristics:
1, diesel engine configuration electric start, convenient start, reduce the operator's labor intensity.
2, the drilling machine adopts hydraulic working principle, equipped with radiator, the drilling machine can work with high efficiency.
3, equipped with high power hydraulic motor, power head can be reversed.
4, drilling frame is equipped with hydraulic cylinder, through the operation handle can achieve oil pressure lifting and dropping.
5, the rig has its own water pump, reasonable structure, compact layout, good slag discharge effect.
6, equipped with traction bar and wheel walking mechanism, the rig is convenient to move.
7, equipped with silk support legs, used for leveling drill.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
1050*1000*2000mm
-
Weight:
-
420 KG
-
Marketing Type:
-
New Product 2023
-
Drilling Depth:
-
Max.130m
-
Mobility:
-
Easy to move
-
Keyword:
-
Water welling drilling rig
-
Power:
-
18HP
-
Max. Drilling Depth:
-
130m
-
Drilling pipe length:
-
1.5m/pc
-
Drill pipe diameter:
-
50mm
-
Total Weight:
-
420kgs
-
Max. Drilling Diameter:
-
80-350mm
-
Height of Tower:
-
2.5m
-
Engine:
-
Diesel
-
Drilling Bit:
-
Alloy/PDC drilling bit
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RLD
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1050*1000*2000mm
-
Weight:
-
420 KG
-
Marketing Type:
-
New Product 2023
-
Drilling Depth:
-
Max.130m
-
Mobility:
-
Easy to move
-
Keyword:
-
Water welling drilling rig
-
Power:
-
18HP
-
Max. Drilling Depth:
-
130m
-
Drilling pipe length:
-
1.5m/pc
-
Drill pipe diameter:
-
50mm
-
Total Weight:
-
420kgs
-
Max. Drilling Diameter:
-
80-350mm
-
Height of Tower:
-
2.5m
-
Engine:
-
Diesel
-
Drilling Bit:
-
Alloy/PDC drilling bit
Product Description

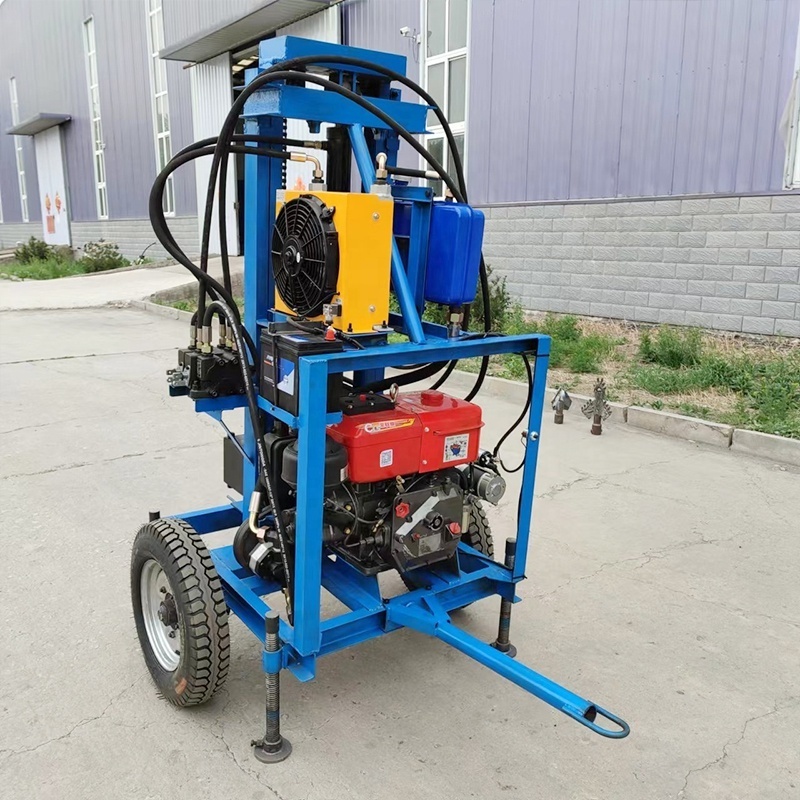

18HP hydraulic diesel engine water well drilling rig machine
Diesel hydraulic drilling machine is suitable for soil layer, quicksand layer and a small amount of rock and soil layer drilling, is mainly used for drilling civil water Wells, ground source heat pump air conditioning Wells, engineering precipitation Wells, drought Wells, industrial Wells, etc..
|
Type
|
RLD-130
|
Max. drilling diameter
|
70-350mm
|
|
Max. drilling depth
|
130m
|
Drill pipe diameter
|
50mm
|
|
Engine Power
|
18HP diesel
|
Drill pipe length
|
1.5m/pc
|
|
Principle
|
Positive cycle
|
Weight
|
420kg
|
|
Height of tower
|
2.5m
|
Dimensions
|
1050*1000*2000mm
|
|
Application
|
Engineering construction, home use, etc.
|
Drill bit
|
Alloy drill bit
Diamond drill bit
|
