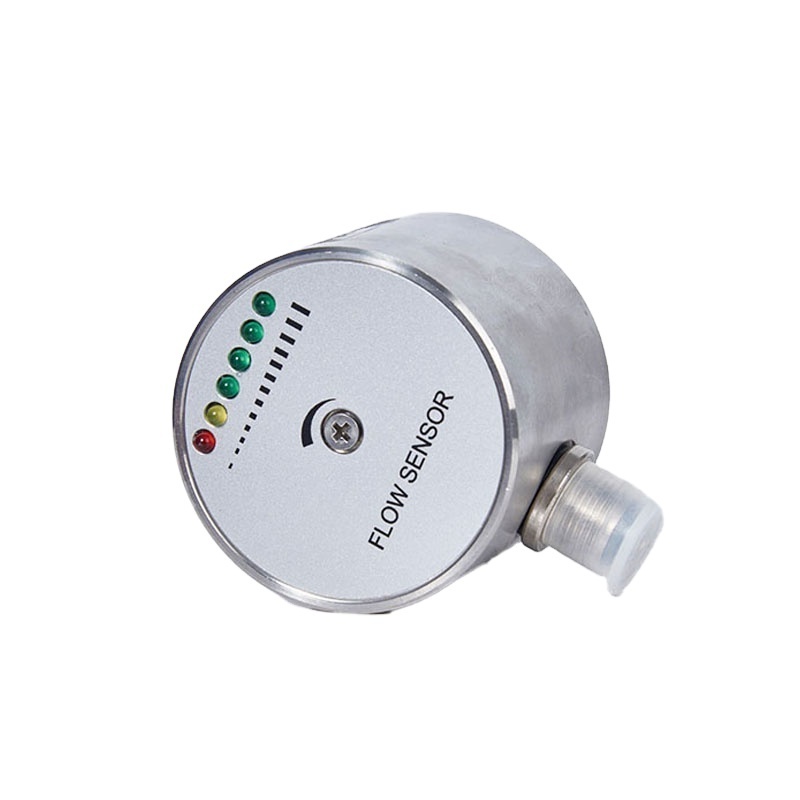

JIANT High Accuracy Water Flow Switch Stainless Steel Flow Sensor Thermal Flow Switch

JIANT High Accuracy Water Flow Switch Stainless Steel Flow Sensor Thermal Flow Switch

FOB Reference Price: Get Latest Price

≥5 Pieces

US $83.34

≥50 Pieces

US $76.39

≥100 Pieces

US $69.45

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: China,Shanghai

Brand Name:: JIANT

Model Number:: JGR-KFO1

Size:: 12*8*6CM

Product Name:: Thermal flow sensor

Color:: orange

Power supply:: DC24V

Operating current:: < 150 mA

Relay:: 220VAC 16A

Range of flow rate:: Water: 0-1.5 m/s Air: 0-30 m/s

Ambient temperature:: - 20 ~ 60℃

Relative humidity:: 45% to 75%

Ambient Pressure:: 86-106 kPa

Medium temperature:: 0 ~ 60℃

Quick Details

Type:: Flow Sensors

Material:: stainless steel

Warranty:: 12 MOMTH

Place of Origin:: China,Shanghai

Brand Name:: JIANT

Model Number:: JGR-KFO1

Size:: 12*8*6CM

Product Name:: Thermal flow sensor

Color:: orange

Power supply:: DC24V

Operating current:: < 150 mA

Relay:: 220VAC 16A

Range of flow rate:: Water: 0-1.5 m/s Air: 0-30 m/s

Ambient temperature:: - 20 ~ 60℃

Relative humidity:: 45% to 75%

Ambient Pressure:: 86-106 kPa

Medium temperature:: 0 ~ 60℃

Product Description

product feature：

1. Compared with the traditional vane type flow switch and piston type flow switch, the thermal flow switch has higher sensitivity.

2. The installation position is not limited, there is no mobile mechanical structure wear, and impurities can be measured.

3. Different materials can be selected, which is suitable for environmental measurement of different acid and alkaline liquids.

4. Flow and speed can be adjusted according to the needs of the field, regardless of large or small caliber.

Specification

item	Thermal flow switch
Warranty	12 MOMTH
Type	Flow Sensors
Customized support	OEM, ODM, OBM
Place of Origin	China,Shanghai
Brand Name	JIANT
Model Number	JGR-KFO1
Size	1286CM
Product Name	Thermal flow sensor
Color	orange
Power supply	DC24V
Operating current	< 150 mA
Relay	220VAC 16A
Range of flow rate	Water: 0-1.5 m/s Air: 0-30 m/s
Ambient temperature	- 20 ~ 60℃
Relative humidity	45% to 75%
Ambient Pressure	86-106 kPa
Medium temperature	0 ~ 60℃
