Improved drivers view
Standard configuration of wide view mast, compact structure of mast and tube pulley block;
Overhead guard with large arc and grid tray with optimized angle enlarge driver's upper view.
Improved operation comfort
100% enlarged accelerator panel and 40% enlarged brake pedal improve driver's foot operating comfort;
Rear handle with horn button ensures safe and comfortable operation while reverse driving;
Ratchet hand brake has different brake forces on slope and ground, reducing driver fatigue.
Optimized maintainability and safety
The special side plate and top cover structure is easy for assembly and disassembly;
High-mounted rear axle increases transversal stability by 2.1% ;
Optional automatic deceleration when steering ensures operation safety.
High efficiency and energy-saving
The use of electric truck dedicated tire with patterns saves more than 10% of the energy during travelling;
LED lamps save 80% of the energy; The professional matching design of the components prolongs the battery working time by about
10%.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HELI
-
Fork Length:
-
1070mm
-
Fork Width:
-
100mm
-
Overall Dimensions:
-
1842*1060*3300mm
-
Weight (KG):
-
1500 kg
-
Color:
-
Red
Quick Details
-
Min. Lifting Height:
-
125mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
shanghai
-
Brand Name:
-
HELI
-
Fork Length:
-
1070mm
-
Fork Width:
-
100mm
-
Overall Dimensions:
-
1842*1060*3300mm
-
Weight (KG):
-
1500 kg
-
Color:
-
Red
Product Description
Specification
|
1.1
|
Manufacturer
|
|
Runtx
|
|
|
|
|
|||||
|
1.2
|
Model
|
|
CPD10
|
CPD15
|
CPD18
|
CPD20
|
CPD25
|
|||||
|
1.4
|
Power type
|
|
Lead acid battery
|
|
|
|
|
|||||
|
1.5
|
Rated capacity
|
|
1000
|
1500
|
1800
|
2000
|
2500
|
|||||
|
1.6
|
Load center
|
|
500
|
500
|
500
|
500
|
500
|
|||||
|
3.1
|
Tire type
|
|
Pneumatic
|
|
|
|
|
|||||
|
3.3
|
Tires Size
|
|
16×6-815×4.5-8
|
6.50-10-12PR5.00-8-8PR
|
|
23×9-1018×7-8
|
|
|||||
|
3.4
|
Driving brake
|
|
Hydraulic
|
|
|
|
|
|||||
|
4.1
|
Tilting Angles
|
α/β（°）
|
6/12
|
6/12
|
6/12
|
6/12
|
6/12
|
|||||
|
4.2
|
Height of lowered mast
|
mm
|
1875
|
1995
|
1995
|
1995
|
1995
|
|||||
|
4.3
|
Max.lift height of mast
|
mm
|
3900
|
4025
|
4025
|
4045
|
4045
|
|||||
|
4.4
|
Free lift height
|
mm
|
140
|
140
|
140
|
150
|
150
|
|||||
|
4.7
|
Lift height of fork
|
mm
|
3000
|
|
|
|
|
|||||
|
4.8
|
Front-wheel Overhead
|
mm
|
2100
|
2100
|
2100
|
2098
|
2098
|
|||||
|
4.9
|
Length(without fork)
|
mm
|
1950
|
2035
|
2035
|
2353
|
2353
|
|||||
|
4.10
|
Front overhang
|
mm
|
350
|
400
|
400
|
440
|
440
|
|||||
|
4.11
|
Rear overhang
|
mm
|
300
|
335
|
335
|
384
|
384
|
|||||
|
4.12
|
Wheelbase
|
mm
|
1200
|
1360
|
1360
|
1360
|
1500
|
|||||
|
4.13
|
Min.ground clearance
|
mm
|
110
|
110
|
110
|
110
|
110
|
|||||
|
4.14
|
Tread(front/rear)
|
mm
|
800/820
|
912/920
|
912/920
|
970/950
|
970/950
|
|||||
|
4.15
|
Overall width
|
mm
|
1000
|
1150
|
1150
|
1150
|
1170
|
|||||
|
4.16
|
Fork size
|
mm
|
920x100x35
|
920x100x40
|
|
1070X120X40
|
|
|||||
|
4.17
|
Minimum right Angle stacking channel width
|
mm
|
3250
|
3797
|
3797
|
4040
|
4040
|
|||||
|
4.18
|
Min mum urn radius
|
mm
|
1800
|
1997
|
1997
|
2172
|
2172
|
|||||
|
5.1
|
Max driving speed
|
km/h
|
9·11
|
10·12
|
10~12
|
12~13
|
12~13
|
|||||
|
5.2
|
Max Lifting speed
|
mm/s
|
240-450
|
240-450
|
240~450
|
320~450
|
320~450
|
|||||
|
5.3
|
Max lowering speed
|
mm/s
|
480/420
|
480/420
|
480~420
|
476~426
|
476~426
|
|||||
|
5.6
|
Maxmum tractive force
|
N
|
6300
|
8600
|
8800
|
12300
|
12800
|
|||||
|
5.8
|
Max.grade ability
|
%
|
12~15
|
12~15
|
12~15
|
13~15
|
13~15
|
|||||
|
6.1
|
Drive motor power
|
kw
|
4
|
5.5
|
5.5
|
7.5
|
7.5
|
|||||
|
6.2
|
Hoisting motor power
|
kw
|
5
|
5
|
6
|
6
|
8
|
|||||
|
6.4
|
Battery voltage/Capacity
|
V/Ah
|
48/320
|
48/360
|
48/400
|
48/400
|
48/450
|
|||||
|
7.1
|
Drive System
|
AC
|
|
|
|
|
|
|||||
|
7.2
|
electric control system
|
Curtis / Zapi
|
|
|
|
|
|
|||||
|
7.3
|
Total weight
|
KG
|
2200
|
2800
|
2980
|
3600
|
3900
|
|||||

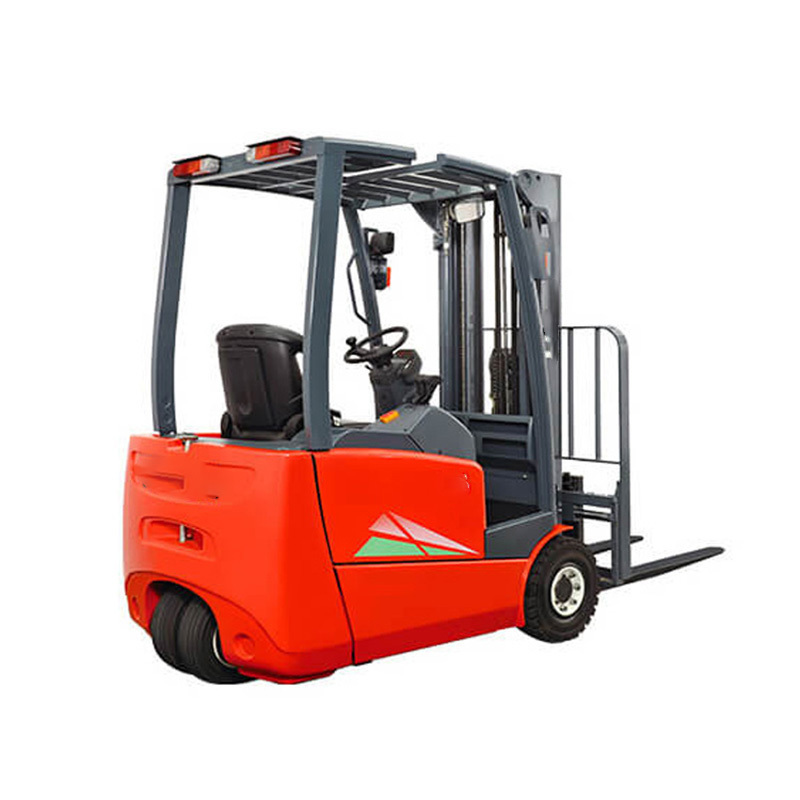

1.5 ton electric forklift CPD15SQ-GB2 battery forklift
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
