Quick Details
-
Brand Name:
-
Dadi
-
Voltage:
-
380v (optional)
-
Weight:
-
2000 KG
-
Dimension(L*W*H):
-
4.0*1.7*1.4 M
-
Features:
-
Automatic
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
Biochar fertilizer organic pellets machine
-
Finished granule shape:
-
Round ball
-
Input moisture content required:
-
30-35%
-
Input material particle size required:
-
0.3-0.5 mm
-
Rate of finished products:
-
more than 90%
-
Local Service Location:
-
None
-
Certification:
-
CE
Quick Details
-
Application:
-
Organic Fertilizer,waste recycling,animal feed
-
Production Capacity:
-
min 90%
-
Place of Origin:
-
Heilongjiang, China
-
Brand Name:
-
Dadi
-
Voltage:
-
380v (optional)
-
Weight:
-
2000 KG
-
Dimension(L*W*H):
-
4.0*1.7*1.4 M
-
Features:
-
Automatic
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
Biochar fertilizer organic pellets machine
-
Finished granule shape:
-
Round ball
-
Input moisture content required:
-
30-35%
-
Input material particle size required:
-
0.3-0.5 mm
-
Rate of finished products:
-
more than 90%
-
Local Service Location:
-
None
-
Certification:
-
CE

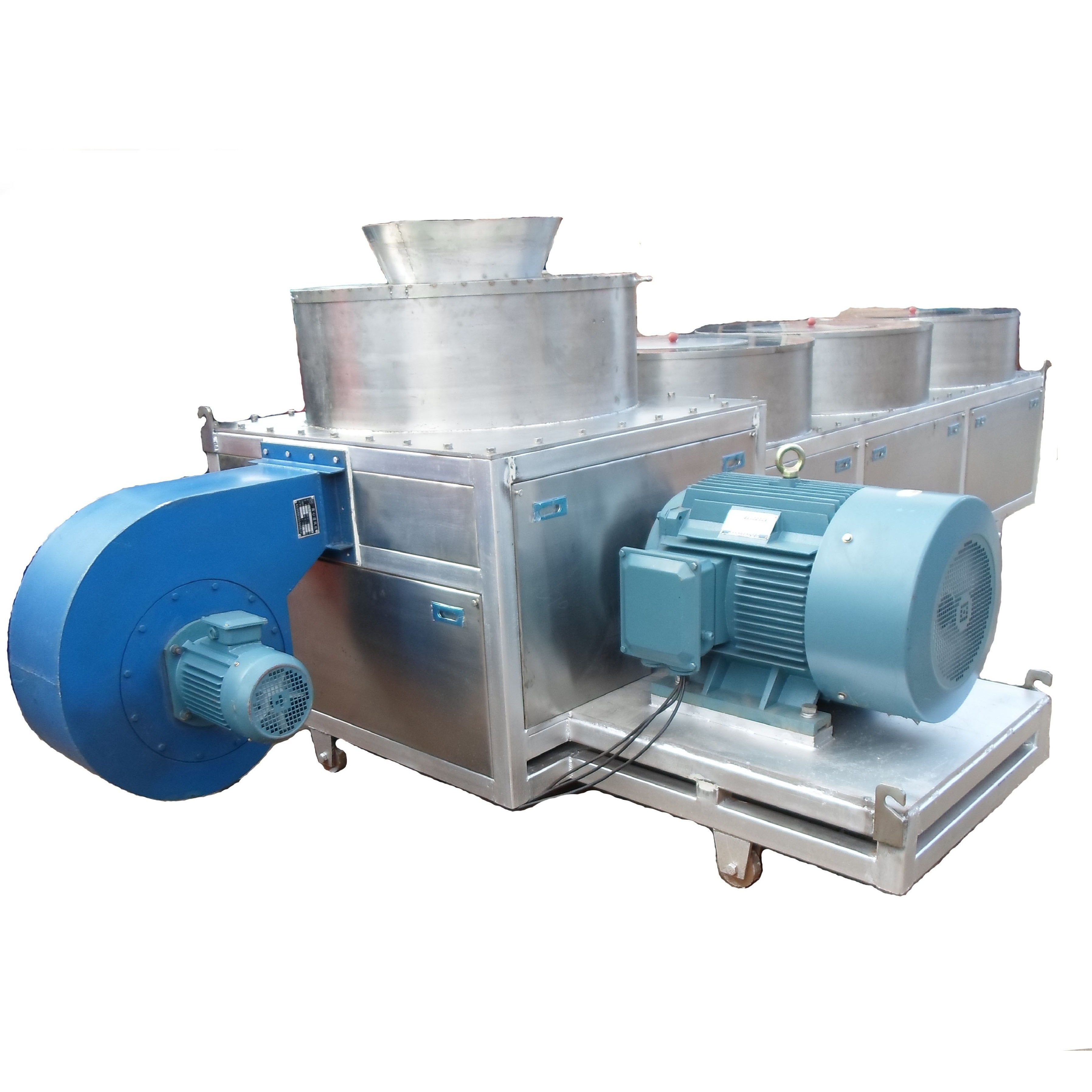

Auto Biochar Fertilizer Organic Pellets Machine
Features of biochar fertilizer organic pellets machine:
1) The finished granules with smooth surface, good hardness and uniform particles are round ball shape.
2) The materials granulation rate can reach 100% ,all the raw material can be made into round ball shape.
3) The rate of FINISHED product is more than 90%.
4 ) The organic content can be high to 100%, make pure organic granulate .
5 ) N o need to add binder when granulating.
Raw Materials
The biochar fertilizer organic pellets machine can make the following raw materials into granules :
1.Agricultural waste: straw, dregs of beans, cotton dregs, rice bran,etc.
2.Animal manure: mixture of poultry litter (PL) and animal waste(AW),such as,Slaughterhouse Waste,Fish Market,Urine and dung of cow,Pigs,Sheep,deer,Chicken, Ducks, Geese,Goat,earthworm cast etc.
3.Industrial waste: wine lees, vinegar residue, manioc waste, sugar scum, furfural residue,Bean cakes, Vinasse slag, Biogas residue, Fruit residue, palm oil residue etc.
4.Residues of urban rubbish or sewage treatment plants.
5.Home scrap: food waste, bones, the roots and leaves of vegetables, etc.
6.Turfs, lignite, sludge, pond sludge,Sucrose slag,starch pulp.
7.Organic materials mix with mineral materials.
Working Principle
The biochar fertilizer organic pellets machine has two parts:
1. Pellets making part
The Pellets part with Ring die and rollers system :
The raw material goes into working chamber and fall on the ‘dump tray’, the raw materials throw into the ring die by centrifugal effect ; The ring die and rollers system turning drive by reduction gears & transmission which energy from motor . The pressure come from ring die and rollers system running ,cylinder form are forced extrusion from ring die hole ,which cutting into small pellets as required by cutting line .
2.Balling Parts:
The pellets fall onto the disk in the drum ,by high-speed rotating disk throw onto the wall of drum with circumferential movement , the granules in a circular motion at the same time also in radial rotation motion due to centrifugal effect . Mutual friction make the granules with edges and corners into balls gradually due to granules’ moving . At this moment , ball pellets gradually floating on the top , final granules overflow along with quantity of granules increased in the drum.
Details of fertilizing granulator
Technical Parameters of fertilizing granulator:
| Model | KHL-400-2 | KHL-400U |
KHL-500 |
KHL-600 | KHL-700 | KHL-800 |
| Capacity:T/h | 0.5-0.8 | 1-1.8 | 2-2.5 | 2.5-3.5 | 3.5-6 | 6-8 |
| Input moisture content required:% | 30-35 | 30-35 | 30-35 | 30-35 | 30-35 | 30-35 |
| Moisture reduce after granulation:% | 3 | 3 | 3 | 3 | 3 | 3 |
| Input material particle size required:mm | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 |
| Rate of finished products:% | >90 | >90 | >90 | >90 | >90 | >90 |
| Voltage:V | 380(optional) | 380(optional) | 380 | 380 | 380 | 380 |
| Granules size:mm | 3.5-5.5 | 3.5-5.5 | 3.5-5.5 | 3.5-5.5 | 3.5-5.5 | 3.5-5.5 |
| Power:KW | 33 | 37 | 56.5 | 64.5 | 123 | 168 |
| Total weight:Kg | 1500 | 2000 | 3000 | 3500 | 7000 | 10000 |
| Size:m | 4.0*1.7*1.4 | 4.5*1.6*1.4 | 4.5*1.6*1.4 | 4.7*1.9*1.6 | 7*2.6*1.8 | 6.5*3.9*1.9 |
| LCL | FCL | |
| Way | Wooden cases with steel frame | Container |
| Packaging Details | The normal package is wooden box (Size:L*W*H).If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pefilm for packing or pack it according to customers special request. | Loaded into container |
1. Design the production line for you.
2. Design factory layout according to your requests and factory size.
3. Sample testing support.
4. Offering comprehensive technical and business consultation services.
5. Fast & Safe Delivery.
6. Training how to install the machine, how to use the machine and maintain.
7. Engineers available to service machinery overseas.
You can enjoy drawing design, equipment building , installation and running etc.full one-stop services from us.
