Agricultural sludge Dewatering Machine Screw Press for Kitchen Waste Dewatering

Agricultural sludge Dewatering Machine Screw Press for Kitchen Waste Dewatering

FOB Reference Price: Get Latest Price

≥1 Sets

US $5000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: YZL-0.3-1T

Power:: 5.5KW

Weight (KG):: 200 kg

After-sales Service Provided:: Engineers available to service machinery overseas

Application:: FOOD WASTE DEWATERING MACHINE

Raw material:: SUS304

Working Capacity per hour:: 300-1000kg

Product name:: Screw Press machine

Function:: Cold Press

Working Style:: Continuous Working

Lead Time:: 15 Working Days

Advantage:: Simple Operation, low cost

Quick Details

Production Capacity:: 1000L/H

Place of Origin:: Liaoning, China

Brand Name:: Wanda

Model Number:: YZL-0.3-1T

Power:: 5.5KW

Weight (KG):: 200 kg

After-sales Service Provided:: Engineers available to service machinery overseas

Application:: FOOD WASTE DEWATERING MACHINE

Raw material:: SUS304

Working Capacity per hour:: 300-1000kg

Product name:: Screw Press machine

Function:: Cold Press

Working Style:: Continuous Working

Lead Time:: 15 Working Days

Advantage:: Simple Operation, low cost

Agricultural sludge Dewatering Machine Screw Press for Kitchen Waste Dewatering

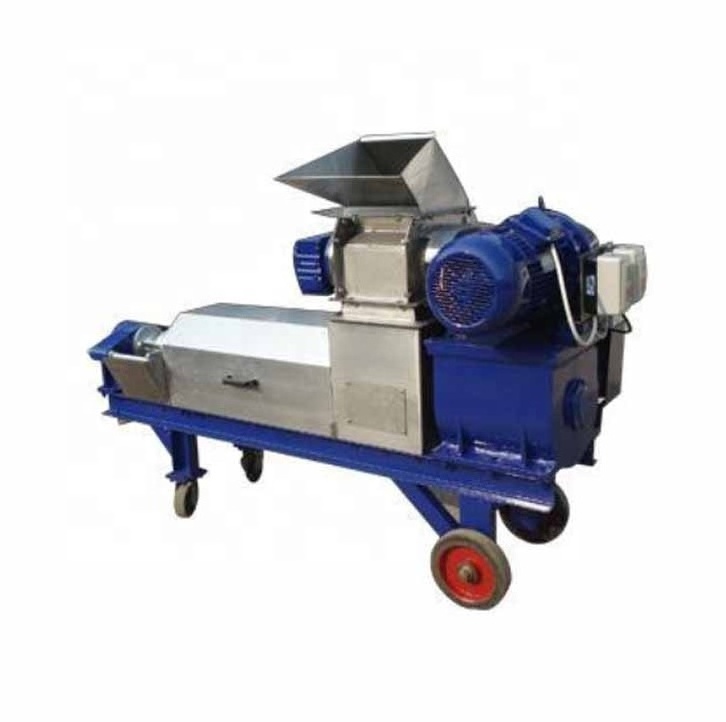

Screw press machine

The screw press machine is a continuous dewatering machine for organic material extrusion liquid, inorganic material slag liquid
separation. screen cannot be blocked, there is no any request for the feed concentration, viscosity, hardness, astringency, and
particle size and fiber length and so on.it is continuous stable with low failure rate.

Low cost of operation and maintenance (non-stressed screen, protective extrusion), high juice yield and dehydration rate are its
main features,

Application Field

This machine can treat fiber or sticky material for solid-liquid separation. Such as the fermentated grape skin residue, ginger,spinach, rubber, Chinese herbal winter jujube, fruit and vegetable with certain fiber content, and waster dewatering the squeezer can also work continuously to the sea-buckhorn fruit with small branches, the mesh is specially made according to the size of the sea-buckthorn fruit.

Product Parameters

Model No	YZJ-0.3-1T	YZJ-3T	YZJ-5T	YZJ-10T	YZJ-10T-Above
Working Volume(kg/h)	300-1000	3000	5000	10000	10000-above
Screw diameter(mm)	260	350	420	500	500-above
Power (kw)	5.5	7.5	11	15	15-above
Dimension(cm)	192X75X120	350X70X100	350X100X148	374x114x178	various
Weight(kg)	900	1300	2000	2445	2445-above

Working Principle

The material stay in the feeding box, the conveying screw will push the material into squeezing screw, by narrowing the screw pitch and enlarging the axle diameter of the squeezing screw, and under the resistance force of screen wall and conical body, the liquid (juice) will be squeezed out, outflow from the mesh, concentrated in the juice bucket.The pressed fruit residue is discharged between the end of the cylindrical screen and conical body, the spring loaded at the back of the conical body, by adjusting the spring pre-tightening force and position, can change the size of the resistance and slag
notch, used to adjust the squeezing degree of dry and wet.This machine feeding box ,sieve cylinder and screw adopt high-quality acid and alkali resistant 304 stainless steel materials.
