GEYA 100A ATS 4P 3 Phase Automatic Transfer Switch for Generator 63A PC Class Home Use 160A 4 Pole Automatic Changeover Switch

GEYA 100A ATS 4P 3 Phase Automatic Transfer Switch for Generator 63A PC Class Home Use 160A 4 Pole Automatic Changeover Switch

FOB Reference Price: Get Latest Price

≥20 Pieces

US $17.46

≥100 Pieces

US $16.37

≥200 Pieces

US $15.41

≥500 Pieces

US $14.56

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: GEYA OEM ODM

Model Number:: W2R-220V-3P

Rated Current:: 16-100A

Frame current:: 100

Product name:: Dual Power Automatic Transfer Switch ATS

Insulation Voltage:: AC 690V

Rated Voltage:: AC 400V

Rated frequency:: 50/60Hz

Certificate:: CE ISO

Guarantee:: 2years

Whether the smart:: Yes

Max. Voltage:: 400V

Max. Current:: 100A

Quick Details

Type:: PC

Number of Pole:: 3

Place of Origin:: Zhejiang, China

Brand Name:: GEYA OEM ODM

Model Number:: W2R-220V-3P

Rated Current:: 16-100A

Frame current:: 100

Product name:: Dual Power Automatic Transfer Switch ATS

Insulation Voltage:: AC 690V

Rated Voltage:: AC 400V

Rated frequency:: 50/60Hz

Certificate:: CE ISO

Guarantee:: 2years

Whether the smart:: Yes

Max. Voltage:: 400V

Max. Current:: 100A

···········This link price is only for W2R-220V-3P··········

Products Description

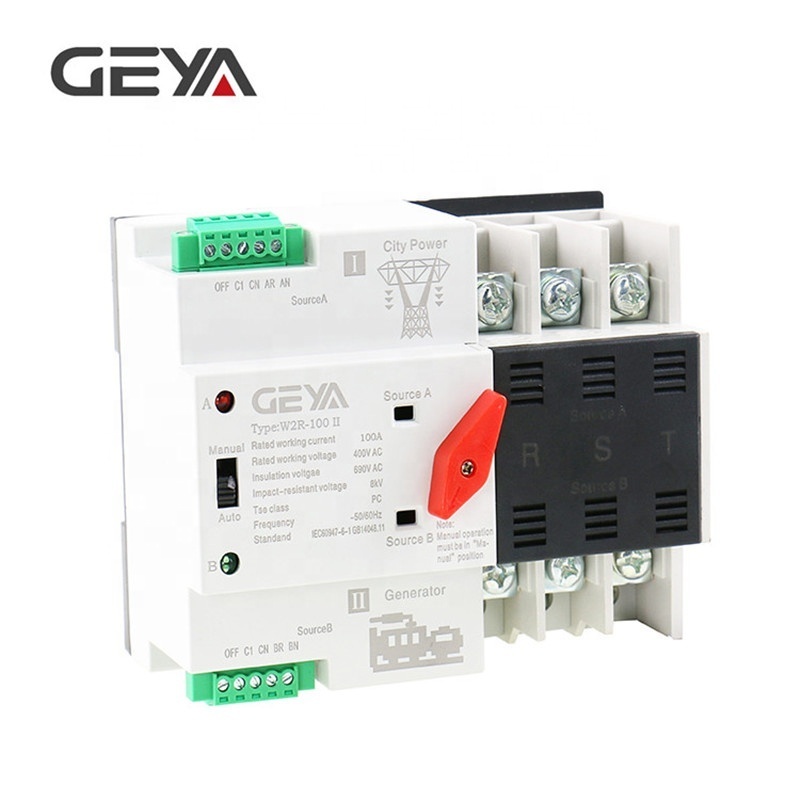

W2R series dual power automatic transfer switch is new developed micro household power transfer switch..

The switch is mainly used for testing whether normal or spare power is normal or not. When the normal power is abnormal, the spare power works at once, which therefore ensures the continuirty, reliability, and safety of power supply. The product is specially designed for household orbit-type installation and specially use in PZ30 power distribution box.

W2R series automatic transfer switch is suitable for the emergency power supply system with 50 or 60 Hz alternatting current rated 400V 60A. TSE is compact in structure, reliable in transfer, convenient in instabllation and maintenance, and has long lif expectancy. Widely used In various occasions where continuous power failure ls not allowed, it can be operated both electrically and manually.

ATSE is composed of TSE and the controller. ATSE compiles with requirements of Low-voltage Switch Gear and Control Gear specified by GB/T14048. 11, Part 6-1 : Multiple functional equipment and transfer switch equipment.

Product Paramenters

ITEM NO.	W2R
Rated current Ie(A)	16A, 20A, 25A, 32A, 40A, 50A, 63A,100A
Installation	Din rail
Rated insulation voltage Ui (V)	AC690, 50HZ
Rated working voltage Ue (V)	AC400, 50HZ
Rated impulse withstand voltage (KV )	8KV
Poles	2P 3P 4P
Weight (KG)	1.7 2.1 2.6
Connecting and breaking	6.0Ie 1.05Ue cosØ=0.50±0.05, 50 times
Operating performance	2.0Ie 1.05Ue cosØ=0.80±0.05, 6000 times
Rated limited short-circuit current Iq	50KA
SCPD (FUSES )	RT16-00-63A
Control circuit	Rated supply voltage Us: AC220V, 50HZ. Working condition:85% Us~110% Us
Ancillary circuit	Two isolated relays, each relay with 2 groups of passive switch contact. Contact capacity: AC220 50Hz, Ie=5A
Switching time	<50ms
Action time	<50ms
