Quick Details
-
Brand Name:
-
ETU-Link
-
Use:
-
FTTX
-
Warranty Time:
-
3 year
-
Data Rate:
-
10G
-
Wavelength:
-
850nm
-
Transmission distance:
-
300M
-
Connector:
-
LC
-
Operating temperature:
-
0~70'C(Standard)
-
Power supply:
-
3.3V
-
Function:
-
Digital Diagnostic Monitoring(DDM)
-
Material:
-
Zinc alloy
-
Package:
-
Standard Package
-
Warranty:
-
3 Yeas
Quick Details
-
Type:
-
Fiber Optic Transceivers
-
Model Number:
-
ES85X-3LCD03
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ETU-Link
-
Use:
-
FTTX
-
Warranty Time:
-
3 year
-
Data Rate:
-
10G
-
Wavelength:
-
850nm
-
Transmission distance:
-
300M
-
Connector:
-
LC
-
Operating temperature:
-
0~70'C(Standard)
-
Power supply:
-
3.3V
-
Function:
-
Digital Diagnostic Monitoring(DDM)
-
Material:
-
Zinc alloy
-
Package:
-
Standard Package
-
Warranty:
-
3 Yeas

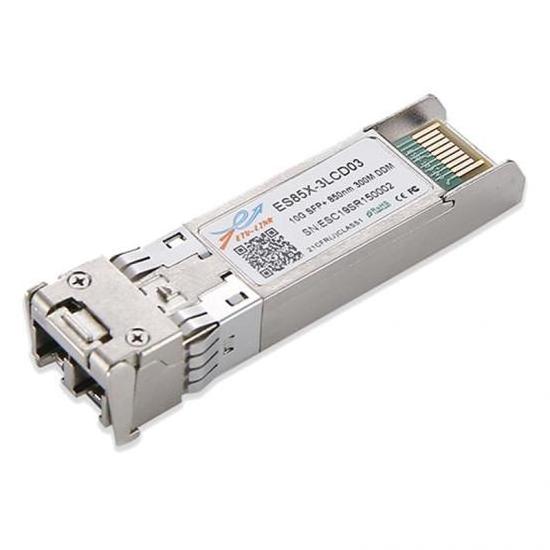

Product Parameters
|
Product series
|
Optical transceiver
|
ETU-Link Number
|
ES85X-3LCD03
|
|||
|
Type
|
SFP+
|
Data Rate
|
Up to 10 Gb/s
|
|||
|
Wavelength
|
850nm
|
Fiber Type
|
MMF
|
|||
|
Max Distance
|
300M
|
Optical Components
|
VCSEL+PIN
|
|||
|
Transmit Power
|
-6~-1dBm
|
Receiver Sensitivity
|
< -10dBm
|
|||
|
Connector
|
LC
|
Operating Voltage
|
3.3V
|
|||
|
DDM
|
Yes
|
Hot-pluggable
|
Yes
|
|||
|
Operating Temp
|
0℃ - 70℃ （Commercial）
|
Package
|
Paper box/Plastic tray/Static bag
|
|||
|
Application
|
Optical fiber switches
Optical fiber routers
Optical network cards
Optical fiber server
|
Compliance
|
IEEE 802.3ae
SFF-8431 RoHS |
|||
|
|
|
|
||||
Products Description
Product Feature
* Optical interface compliant to IEEE 802.3ae
* Electrical interface compliant to SFF-8431
* Hot Pluggable
* 850nm VCSEL transmitter, PIN photo-detector
* Maximum link length of 300m on 2000MHz/km MMF
* Operating case temperature: 0 to 70 °C
* Low power consumption
* Maximum link length of 300m on 2000MHz/km MMF
* All-metal housing for superior EMI performance
* Advanced firmware allow customer system encryption information to be stored in transceiver
* Cost effective SFP+ solution, enables higher port densities and greater bandwidth
* RoHS6 compliant (lead free)
* Electrical interface compliant to SFF-8431
* Hot Pluggable
* 850nm VCSEL transmitter, PIN photo-detector
* Maximum link length of 300m on 2000MHz/km MMF
* Operating case temperature: 0 to 70 °C
* Low power consumption
* Maximum link length of 300m on 2000MHz/km MMF
* All-metal housing for superior EMI performance
* Advanced firmware allow customer system encryption information to be stored in transceiver
* Cost effective SFP+ solution, enables higher port densities and greater bandwidth
* RoHS6 compliant (lead free)
About 10G SFP+
|
10G SFP+ SR 850nm 300M
|
10G SFP+ LR 1310nm 10KM
|
10G SFP+ ER 1310nm 40KM
|
10G SFP+ ZR 1550nm 100KM
|
|
10G
|
10G
|
10G
|
10G
|
|
850nm
|
1310nm
|
1310nm
|
1550nm
|
|
10KM
|
10KM
|
40KM
|
100KM
|
|
LC
|
LC
|
LC
|
LC
|
|
MM
|
SM
|
SM
|
SM
|
|
DDM
|
DDM
|
DDM
|
DDM
|
|
0 to 70°C
|
0 to 70°C
|
0 to 70°C
|
0 to 70°C
|
1. What is SFP-10G-SR for?
SFP-10G-SR is a SFP+ module with the lowest cost and power consumption for very short distance applications, which can reach up to 300 meters matched with OM3 Multimode Fiber (MMF), known as the lowest-cost, lowest-power modules implemented with a VCSEL.
SFP-10G-SR is for Cisco, Juniper, Arista, Brocade, HPE ProCurve, HPE Aruba, HPE BladeSystem, HPE H3C, H3C, Dell, Extreme, HW, Generic, Intel, Netgear, IBM, Mellanox, Ciena, Fortinet, Avago, Avaya, Alcatel-Lucent, D-Link, F5, Ubiquiti.
2. What is the difference between 1G and 10G SFP+?
The main difference between 1G and 10G SFP+ (Small Form-Factor Pluggable Plus) lies in their data transfer speed. 1G SFP+ supports a data transfer rate of up to 1 gigabit per second, while 10G SFP+ supports a data transfer rate of up to 10 gigabits per second. This means that 10G SFP+ is ten times faster than 1G SFP.
3. What is difference between SFP and SFP+?
The main difference between SFP and SFP+ is that the SFP+ is used in Gigabit Ethernet applications while SFP is for 100Base or 1000Base applications. SFP doesn't support 10G transmission data rate, which means they can't be used in the same network.
4. What is SFP+ port used for?
SFP + modules are commonly used for Gigabit Ethernet and 10 Gigabit Ethernet connections and can adapt to various application scenarios, including high-speed network connections and fiber optic links.
SFP-10G-SR is a SFP+ module with the lowest cost and power consumption for very short distance applications, which can reach up to 300 meters matched with OM3 Multimode Fiber (MMF), known as the lowest-cost, lowest-power modules implemented with a VCSEL.
SFP-10G-SR is for Cisco, Juniper, Arista, Brocade, HPE ProCurve, HPE Aruba, HPE BladeSystem, HPE H3C, H3C, Dell, Extreme, HW, Generic, Intel, Netgear, IBM, Mellanox, Ciena, Fortinet, Avago, Avaya, Alcatel-Lucent, D-Link, F5, Ubiquiti.
2. What is the difference between 1G and 10G SFP+?
The main difference between 1G and 10G SFP+ (Small Form-Factor Pluggable Plus) lies in their data transfer speed. 1G SFP+ supports a data transfer rate of up to 1 gigabit per second, while 10G SFP+ supports a data transfer rate of up to 10 gigabits per second. This means that 10G SFP+ is ten times faster than 1G SFP.
3. What is difference between SFP and SFP+?
The main difference between SFP and SFP+ is that the SFP+ is used in Gigabit Ethernet applications while SFP is for 100Base or 1000Base applications. SFP doesn't support 10G transmission data rate, which means they can't be used in the same network.
4. What is SFP+ port used for?
SFP + modules are commonly used for Gigabit Ethernet and 10 Gigabit Ethernet connections and can adapt to various application scenarios, including high-speed network connections and fiber optic links.
