*Efficiency is improved by 30%
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
35
-
Voltage:
-
220V
-
Current:
-
30-197A
-
Rated Capacity:
-
Other
-
Use:
-
Stud Welding
-
Product name:
-
Stud Welding Machine
-
Welding speed:
-
10-15 pc/min
-
OEM and ODM:
-
Supply
-
Packing:
-
Wooden Case
-
Application:
-
steel ,carbon steel ,alloy
-
Rated Duty Cycle:
-
80%
-
Usage:
-
stud welding ,insulation welding ,bolt welding
Quick Details
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XIAOWEI
-
Weight (KG):
-
35
-
Voltage:
-
220V
-
Current:
-
30-197A
-
Rated Capacity:
-
Other
-
Use:
-
Stud Welding
-
Product name:
-
Stud Welding Machine
-
Welding speed:
-
10-15 pc/min
-
OEM and ODM:
-
Supply
-
Packing:
-
Wooden Case
-
Application:
-
steel ,carbon steel ,alloy
-
Rated Duty Cycle:
-
80%
-
Usage:
-
stud welding ,insulation welding ,bolt welding

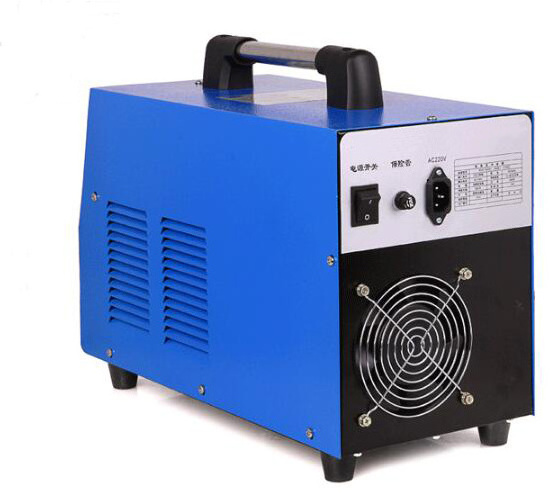

Capacitor Discharge Stud Welding Machine
Compact, portable Capacitor Discharge equipment XW-RSR2500 designed to weld up to 10mm diameter studs. With its simple and robust construction the XW-RSR2500 range offers an economic and reliable method of fixing Mild Steel, Stainless Steel, Aluminium and Brass studs. Fast and accurate, the XW-RSR2500 range gives you better weld results. Designed and built to exacting standards and meets all required standards. Not only satisfy the welding of different metal materials, and meet the needs of different users using welding method.
|
No
|
Item
|
Parameter
|
|
1
|
Model
|
XW-RSR2500
|
|
2
|
Input Voltage
|
AC 110/220V±10%V AC 50/60Hz
|
|
3
|
Power
|
1.8 kW
|
|
4
|
Charging Voltage
|
33~200V (adjustable)
|
|
5
|
Capacitance
|
108000 uF
|
|
6
|
Welding Power
|
2500 JW/S
|
|
7
|
Stud Diameter
|
M3~M10
|
|
8
|
Welding Time
|
1~3 ms
|
|
9
|
Cable Length
|
5 meters
|
|
10
|
Welding Speed
|
1-50 studs/min
|
|
11
|
Welding Material
|
steel (unalloyed and alloyed), aluminum, weldable special alloys, brass
|
|
12
|
After-sales Service Provided
|
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
|
|
13
|
After-sales Service Provided
|
Video technical support, Online support, Spare parts, Field maintenance and repair service
|
|
14
|
Product Dimensions
|
250mm (L) x 250mm (W) x 470 mm(H)
|
|
15
|
Weight
|
23kg
|
|
16
|
Warranty
|
One year warranty with lifetime support
|
Features
1. Compact, lightweight portable machine. 2. Strong, robust construction.
3. Rapid welding action reduces weld time.
4. Super fast recharge time improves profitability.
5. Easy adjustment of capacitor voltage.
6. LED displays allow easy monitoring of functions.
7. Welds Mild Steel, Stainless Steel, Aluminium and Brass.
8. Quality and reliability from TAYLOR Stud welding Systems Ltd.
9.Quality assurance: monitoring and optimization of welding quality.
3. Rapid welding action reduces weld time.
4. Super fast recharge time improves profitability.
5. Easy adjustment of capacitor voltage.
6. LED displays allow easy monitoring of functions.
7. Welds Mild Steel, Stainless Steel, Aluminium and Brass.
8. Quality and reliability from TAYLOR Stud welding Systems Ltd.
9.Quality assurance: monitoring and optimization of welding quality.
*Adapt digital technology
*All the connections adapt waterproof structure design, suitable for outdoor construction, can operation on rainy days.
*Windened the positioning pin
*Stainless steel protective sleeve
* CEN capacitor
* Large capacity 36000Uf/pcs
* Good output performance
* Long service life
* Toroidal transformer
* High temperature
* Copper wire
XIAOWEI after-sales service policy
1. One year guarantee, one Year spare parts free if the machine parts damage, whole life technician support.
2. With professional engineers, you can go to the world for on-site mechanical maintenance
3. Operation Manual, Operation or repair Video,
4. 24-hours Email technical support, we will do our best to help the clients solve any question or problems.
5. Available to send our engineer to clients factory, to install the machines, train the workers, repair the machines.
3. Operation Manual, Operation or repair Video,
4. 24-hours Email technical support, we will do our best to help the clients solve any question or problems.
5. Available to send our engineer to clients factory, to install the machines, train the workers, repair the machines.
