Quick Details
-
Brand:
-
RUIAO
-
Model:
-
TLX
-
Core Components:
-
cable drag chain
-
Product Name:
-

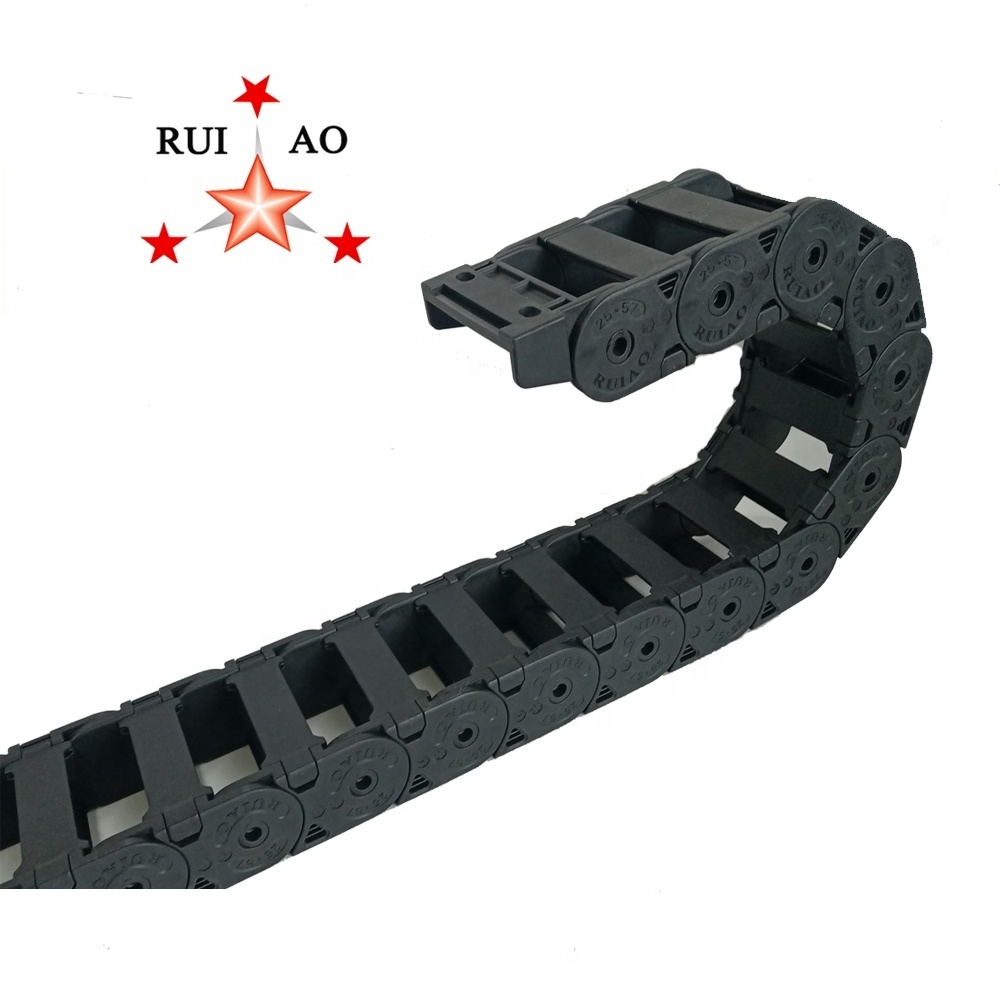

CNC Energy Drag Chain Cable Carriers Flexible Cable Tray
-
Place of Origin:
-
China (Mainland)
-
Color:
-
Black
-
Function:
-
DRAG CHAIN
-
Impact Strength:
-
50KJ/m2
-
Temperature Range:
-
-40℃~130℃
-
Fricition Factor:
-
0.3
-
Tensile strength:
-
180N/mm2
-
After Warranty Service:
-
Spare parts
-
After-sales Service Provided:
-
Free spare parts
Quick Details
-
Brand Name:
-
RUIAO
-
Material:
-
reinforced nylon
-
Weight (KG):
-
2
-
Brand:
-
RUIAO
-
Model:
-
TLX
-
Core Components:
-
cable drag chain
-
Product Name:
-
CNC Energy Drag Chain Cable Carriers Flexible Cable Tray
-
Place of Origin:
-
China (Mainland)
-
Color:
-
Black
-
Function:
-
DRAG CHAIN
-
Impact Strength:
-
50KJ/m2
-
Temperature Range:
-
-40℃~130℃
-
Fricition Factor:
-
0.3
-
Tensile strength:
-
180N/mm2
-
After Warranty Service:
-
Spare parts
-
After-sales Service Provided:
-
Free spare parts
|
Product Name
|
Nylon Bridge or Enclosed CNC Energy Drag Chain Cable Carriers Flexible Cable Tray
|
|
Material
|
reinforced nylon PA66
|
|
Color
|
black structure ,different color dots required
|
|
Shape
|
rectangular
|
|
Thickness
|
customized
|
|
Fuction
|
drag chain cable hose carrier
|
|
Certification
|
ISO9001/CE/ROHS
|
|
Used
|
CNC machine tools , Laser equipment, grinder, milling machine, machining center
|
Product Description
Hot sale flexible cable tray:
Inner height : 35mm, 45mm, 56mm
Inner width : 50mm, 75mm,100mm, 125mm
150mm,175mm,200mm,250mm,300mm
|
model
|
inside diameter
|
outside diameter
|
bending radius
|
pitch
|
|
TLX35K.50
|
35*51
|
60*79
|
75 100 125 150 175 200 250
|
62
|
|
TLX35K.60
|
35*61
|
60*89
|
|
|
|
TLX35K.75
|
35*76
|
60*104
|
|
|
|
TLX35K.100
|
35*101
|
60*129
|
|
|
|
TLX35K.125
|
35*126
|
60*154
|
|
|
|
TLX35K.150
|
35*151
|
60*179
|
|
|
|
TLX35K.175
|
35*176
|
60*204
|
|
|
|
TLX35K.200
|
35*201
|
60*229
|
|
|
|
TLX35K.250
|
35*251
|
60*279
|
|
|
|
TLX35K.300
|
35*301
|
60*329
|
|
|
|
|
|
|
|
|
|
TLX45K.50
|
45*51
|
70*79
|
75 100 125 150 175 200 250
|
74
|
|
TLX45K.60
|
45*61
|
70*89
|
|
|
|
TLX45K.75
|
45*76
|
70*104
|
|
|
|
TLX45K.100
|
45*101
|
70*129
|
|
|
|
TLX45K.125
|
45*126
|
70*154
|
|
|
|
TLX45K.150
|
45*151
|
70*179
|
|
|
|
TLX45K.175
|
45*176
|
70*204
|
|
|
|
TLX45K.200
|
45*201
|
70*229
|
|
|
|
TLX45K.250
|
45*251
|
70*279
|
|
|
|
TLX45K.300
|
45*301
|
70*329
|
|
|
|
|
|
|
|
|
|
TLX56K.100
|
56*100
|
86*140
|
125 150 175 200 250 300 350 400 500
|
90
|
|
TLX56K.125
|
56*125
|
86*165
|
|
|
|
TLX56K.150
|
56*150
|
86*190
|
|
|
|
TLX56K.175
|
56*175
|
86*215
|
|
|
|
TLX56K.200
|
56*200
|
86*240
|
|
|
|
TLX56K.250
|
56*250
|
86*290
|
|
|
|
TLX56K.300
|
56*300
|
86*340
|
|
|
small size flexible cable tray
Inner height : 7mm, 8mm, 10mm,15mm,18mm
Inner width:
7mm,8mm,10mm,15mm,20mm,25mm,
30mm,40mm,50mm
|
model
|
inside diameter
|
outside diameter
|
bending radius
|
pitch
|
|
TP7.7
|
7*7
|
10.1*12.5
|
15
|
|
|
TP8.8
|
8*8
|
11.2*14
|
15
|
|
|
TP10.10
|
10.4*10.5
|
14*17
|
18 28
|
13
|
|
TP10.15
|
10.4*15.5
|
14*22
|
|
|
|
TP10.20
|
10.4*20.5
|
14*27
|
|
|
|
TP10.25
|
10.4*25.5
|
14*32
|
|
|
|
TP15.15
|
15*15
|
20.2*25
|
28 38 48
|
27
|
|
TP15.20
|
15*20
|
20.2*30
|
|
|
|
TP15.30
|
15*30
|
20.2*40
|
|
|
|
TP15.40
|
15*40
|
20.2*50
|
|
|
|
TP15.50
|
15*50
|
20.2*60
|
|
|
|
TP18.18
|
18*18
|
23*29
|
28 38 48
|
30
|
|
TP18.25
|
18*25
|
23*36
|
|
|
|
TP18.35
|
18*35
|
23*46
|
|
|
|
TP18.40
|
18*40
|
23*51
|
|
|
|
TP18.50
|
18*50
|
23*61
|
|
|
Products Show
Our Service
Our Company
Packing & Delivery
Packing Details of cable hose carrier : Packing in standard exporting carton, wooden case
Delivery Details : 7-15 days after order confirmed
hot sale : Nylon Bridge or Enclosed CNC Energy Drag Chain Cable Carriers Flexible Cable Tray
Our Certifications
Application
FAQ
Q: Are you trading company or manufacturer ?
A: We are Manufacturer , we have specialized in drag chain's line nearly 30 years .
Q: How long is your delivery time?
A: quantity smaller than 500 meters can be deliveried within one week .
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but customer need to share shipping freight together .
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.
