Quick Details
-
Frequency:
-
27.12MHZ
-
Welding Area:
-
300*600
-
Dimensions:
-
1560*1050*1770
-
Usage:
-
Heat sealing of car tarpaulin
-
Weight (KG):
-
550 KG
-
Power (kW):
-
10KW
-
Color:
-
Red
-
Application:
-
PVC, EVA, PEVA, PET, APET, PETG (GPET), GAG, TPU, TPR, PU, PE, MPE
-
Function:
-
welding
-
Material:
-
Advertiser canvas
-
Drive mode:
-
Air pressure
-
Advantage:
-
Adjust pressure arbitrarily
-
Certificate:
-
CE Certificate
-
Packing:
-
Wooden Box
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
GUOCHIQIANG
-
Voltage:
-
380V
-
Frequency:
-
27.12MHZ
-
Welding Area:
-
300*600
-
Dimensions:
-
1560*1050*1770
-
Usage:
-
Heat sealing of car tarpaulin
-
Weight (KG):
-
550 KG
-
Power (kW):
-
10KW
-
Color:
-
Red
-
Application:
-
PVC, EVA, PEVA, PET, APET, PETG (GPET), GAG, TPU, TPR, PU, PE, MPE
-
Function:
-
welding
-
Material:
-
Advertiser canvas
-
Drive mode:
-
Air pressure
-
Advantage:
-
Adjust pressure arbitrarily
-
Certificate:
-
CE Certificate
-
Packing:
-
Wooden Box

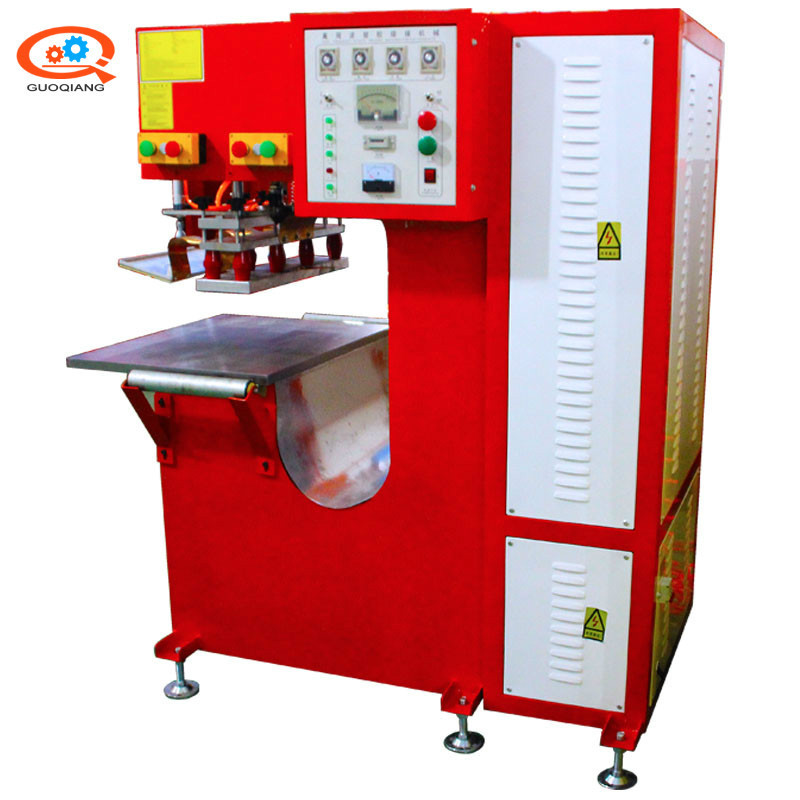

The Machine is designed specifically for production of small and large format tensile structures, membranes, tarpaulin, tents, oil booms, truck covers, swimming pool liners & covers, airline hangars, large billboards, fast doors, side curtains, etc. This basic design machine can be fitted with special impulse electrode for welding non-HF weldable fabrics made of PE and PP, as well as multilayer welding electrode and curved HF electrodes for sealing round window profiles made of clear PVC and any other shapes requiring precision welding. The machine is equipped with special deep and wide trough behind the electrode for material storage and handling. Machine has optional smooth glide wheels for easy movement in-around welded fabric, or relocation to a desired place in manufacturing hall.
- International standard 27.12MHZ frequency.
- Pressure adjustable by controller,
- Used auxiliary heating device, improved work efficiency.
- Equipped with spark protective device, safely protected all parts of the machine.
- Flat mold installation method, it is easier to adjust the mold.
- Universal usage for PVC, PET, PU
- High weld precision and efficiency
- Small footprint and great work ergonomics
- Protective fixed guard - working table HF shielded and filtered
|
Model No |
GCQ-W8KW |
GCQ-W10KW |
GCQ-W15KW |
|
Voltage |
AC220/380/400/415/440V 50/60HZ(Customized) |
||
|
Output Power |
8KW |
10 KW |
1 5 KW |
|
Input Power |
10 KVA |
1 5 KVA |
18 KVA |
|
HF Frequency |
27.12MHZ ±0.6% |
||
|
Oscillation Tube |
8T85RB |
8T85RB |
8T85RB |
|
Anti-spark Tube |
NL-5557 |
NL-5557 |
NL-5557 |
|
Gap of Electrode |
200mm |
200mm |
200mm |
|
Size of upper electrode |
20×700mm |
20×800mm |
20×1000mm |
|
Machine Size |
1200×900×1800 |
1200×900×1800 |
1200×900 ×1800 |
|
Machine Weight |
500KG |
520KG |
550KG |
