Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
SUCCESS
-
Model Number:
-
Quartz Glass Test Tube
-
Color:
-
Opaque/clear
-
Brand:
-
SUCCESS Quartz Glass Tube
-
Material:
-
>99.99% Sio2
-
Certification:
-
ISO9001
-
Product name:
-
Clear large diameter quartz glass tube
-
Size:
-
Customized the size of tube
-
Length:
-
Customized
-
Density:
-
2.2g/cm3
-
Available Shape:
-
Both end open tube, one end closed tube
-
Operating Temperature:
-
1250℃
-
Package:
-
Standard Export Packing
Quick Details
-
Type:
-
Clear Quartz Pipe
-
Application:
-
Heater
-
Outside Diameter:
-
3-450mm
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
SUCCESS
-
Model Number:
-
Quartz Glass Test Tube
-
Color:
-
Opaque/clear
-
Brand:
-
SUCCESS Quartz Glass Tube
-
Material:
-
>99.99% Sio2
-
Certification:
-
ISO9001
-
Product name:
-
Clear large diameter quartz glass tube
-
Size:
-
Customized the size of tube
-
Length:
-
Customized
-
Density:
-
2.2g/cm3
-
Available Shape:
-
Both end open tube, one end closed tube
-
Operating Temperature:
-
1250℃
-
Package:
-
Standard Export Packing
Product Description

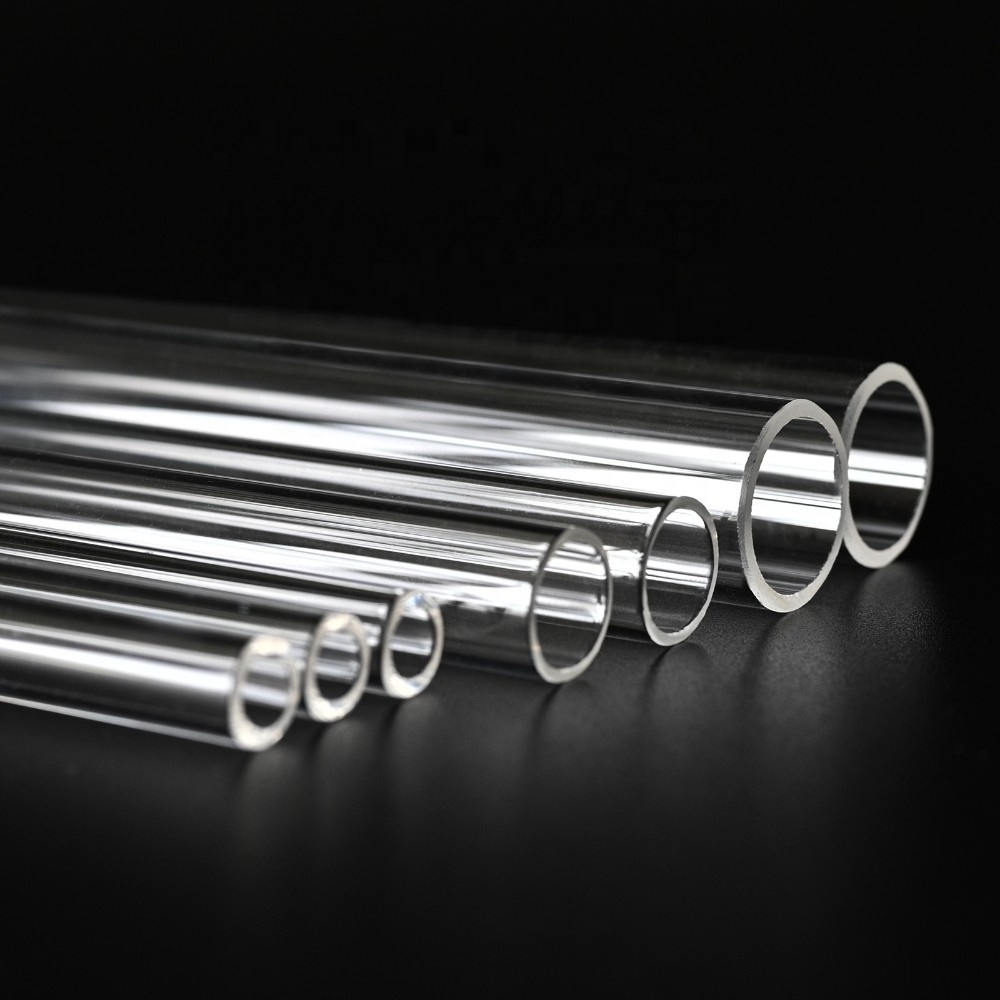

SUCCESS Quartz Glass Tube
We are a manufacturer of Transparent Quartz Tube Furnace.
Size&design: Accept customize according to different diameter, thickness,length or sending your drawing.
Advantage of Quartz Tube Furnace:
1)High purity:SiO₂> 99.99%.
2)Operating Temperature: 1200℃; Soften Temperature: 1730℃.
3)Good thermal stability.
4)Acid and alkali resistance.
5)High transmittance.
6)Excellent electrical insulator.
|
Product Name
|
SUCCESS Quartz Glass Tube
|
|
Material
|
Sio
2
＞99.99%
|
|
Color
|
Transparent or
Opaque
|
|
Size
|
1. Diameter: 3-450mm
2. Thickness: 0.75-10mm.
3. Length: 10-3500mm. 4. OEM:
All different sizes can be done according to customer's demand.
|
Quartz Performance
Chemical properties：
Quartz glass is an acidic material, except for hydrofluoric acid and hot phosphoric acid, it is inert to any other acid and is a very good acid-resistant material, with better chemical stability than opaque quartz glass, non-hygroscopic and non-weathering.
Electrical Properties：
Quartz glass has high dielectric strength and low conductivity, even at high temperature, high pressure and high frequency, still maintain high dielectric strength and resistance, almost no dielectric loss in the applied frequency band, so quartz glass is excellent high temperature dielectric insulation material.
Optical Performance：
Quartz glass has its unique optical properties, it can transmit both the far-ultraviolet spectrum, which is a good choice for all UV-transmitting materials, and can transmit visible light and near-infrared spectrum, high temperature resistance, small coefficient of thermal expansion, good chemical thermal stability, bubbles, streaks, uniformity, birefringence and comparable to general optical glass.
Thermal Properties：
The coefficient of thermal expansion of quartz glass is small, only one-twelfth to one-twentieth of the ordinary glass times, the standard stipulates that the specimen will be burned to 1200 degrees Celsius and then cast sharply into cold water, repeatedly more than three times is not allowed to blow up.
Mechanical properties：
Quartz glass mechanical properties than coin glass and ceramics are better, but the brittleness is poor. The theoretical calculated strength of quartz glass is very high, about 24 * 1.3 MPA, but the actual measured strength is tens of times lower than this value.
Airtight performance：
The structure of quartz is very relaxed, even at high temperatures also allows the ions of certain gases to diffuse through the network, including the diffusion of sodium ions for the faster. This property of quartz glass is particularly important for users.
Physical Property
|
Property
|
Value
|
Noted
|
|
Density
|
2.2g/cm3
|
Thermal stability:
Put the quartz material from 1100 °C to 20 ℃ three times, will not cracks. It will be not changed color under 1100 degree for three hours. |
|
Hardness
|
570KHN100
|
|
|
Tensile strength
|
4.8×107Pa(N/m2)
|
|
|
Compression strength
|
>1.1×109 Pa
|
|
|
Coefficient of thermal expansion (20℃-300℃)
|
5.5×10-7cm/cm℃
|
|
|
Thermal conductivity (20℃)
|
1.4W/m℃
|
|
|
Specific heat(20℃)
|
660J/kg℃
|
|
|
Softening point
|
1730℃
|
|
|
Annealing point
|
1250℃
|
|
Chemical Composition
|
Unit: PPM
|
|
|
|
|
|
|
|
|
||||||||
|
K+Na
|
Ca
|
Fe
|
Al
|
Mg
|
Ti
|
Ba
|
Li
|
Cu
|
||||||||
|
<10
|
<3
|
<1.5
|
<20
|
<1.0
|
<3.0
|
<0.2
|
<1.0
|
<0.5
|
||||||||
Notes for purchase and use
2.
For example: the larger the outer diameter of the quartz tube, the thicker the wall thickness, the higher the price. The more quantity you buy, the cheaper the price will be. Please contact the seller for details.
