Quick Details
-
Model Number:
-
12V24V10A
-
Place of Origin:
-
China
-
Product name:
-
Intellegent Lead-acid Battery Charger
-
Connector:
-
Current Protection
-
Output:
-
12V/24V
-
Application:
-
Electric Vehicle E-bike Scooter
-
Package:
-
Customized Package
-
Power:
-
15W/10W/7.5W/5W Automatic Identification
-
Feature:
-
Fast Charging Speed
-
OEM/ODM:
-
Accept OEM Orders
-
Warranty:
-
12 Months
-
Charging efficiency:
-
90%
Quick Details
-
Type:
-
Electric, Power Supply Adapter, CAR CHARGER, Fast Charger
-
Port:
-
DC, AC
-
Brand Name:
-
UW-WONG
-
Model Number:
-
12V24V10A
-
Place of Origin:
-
China
-
Product name:
-
Intellegent Lead-acid Battery Charger
-
Connector:
-
Current Protection
-
Output:
-
12V/24V
-
Application:
-
Electric Vehicle E-bike Scooter
-
Package:
-
Customized Package
-
Power:
-
15W/10W/7.5W/5W Automatic Identification
-
Feature:
-
Fast Charging Speed
-
OEM/ODM:
-
Accept OEM Orders
-
Warranty:
-
12 Months
-
Charging efficiency:
-
90%

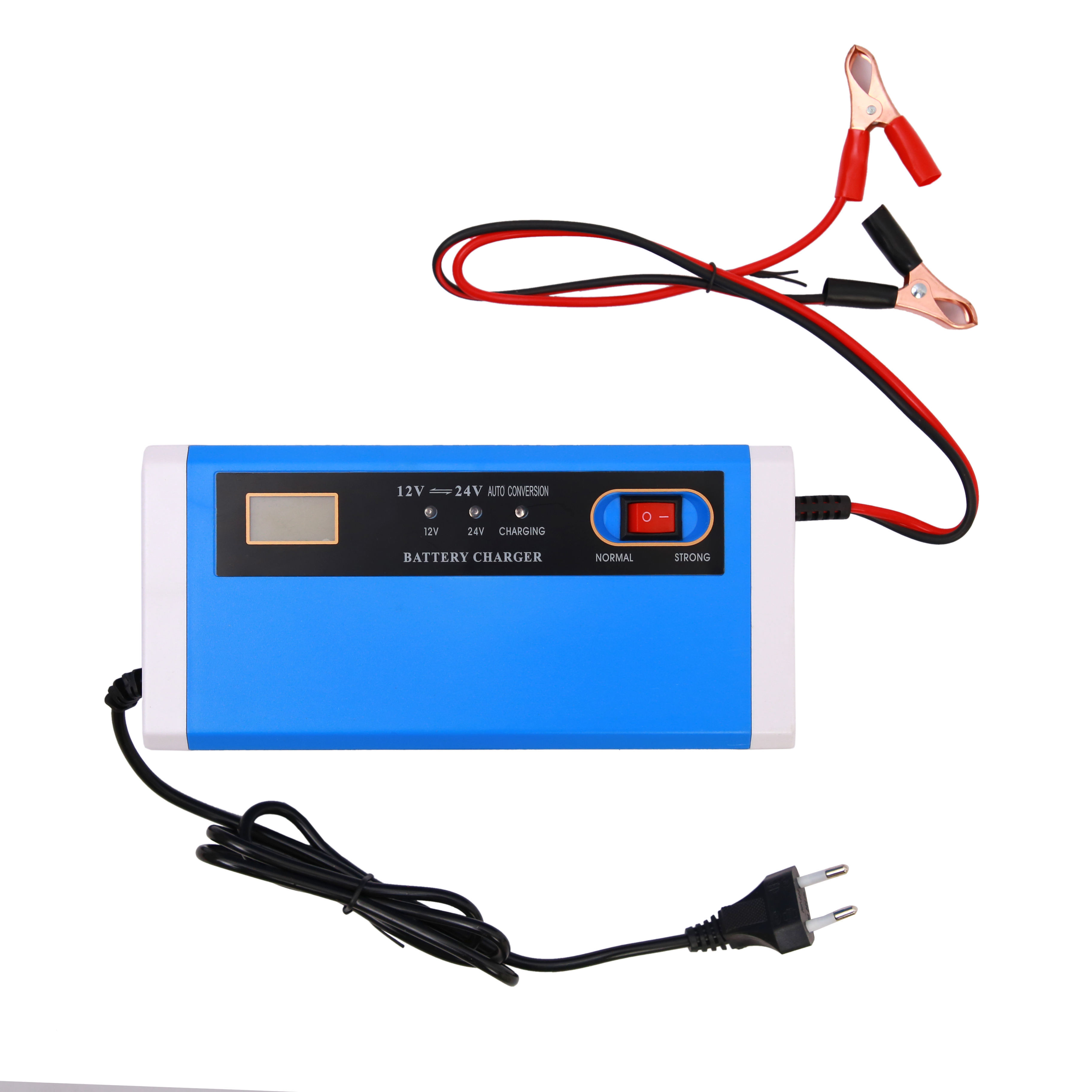

12V 10A 24V 5A Automatic Smart Car Battery Charger for Gel Wet AGM Battery
Specification
|
Name
|
Intelligent 12V 24v 12A lead acid battery charger
|
|
Mode
|
12V24V10A
|
|
Input
|
110Vac or 220Vac
|
|
Output
|
14.7V Float charge voltage:13.8V (for 12V lead acid battery)
|
|
Output current
|
10A
|
|
Features:
|
Temperature control compensation charger
|
|
Compatibility
|
35AH,60AH 80AH 100AH 120AH 150AH 180AH 200AH lead acid battery
|
|
Protection
|
-Short circuit protection
-Overvoltage protection -Overcurrent protection -Overheating protection -Reverse connection protection |
|
Apply to
|
Children's toy cars, motorcycles, cars, etc.
|
|
Efficiency
|
85%
|
|
Material
|
ABS
|
Product Description
(1) output short circuit, anti-reverse connection: the product has an output short
circuit, reverse battery prompt (reverse connection 1-2S detection, detection of reverse connection reverse
(3) winter and summer mode: during the charging process, detect the ambient temperature, timely adjustment of the product charging
state to ensure battery life and charging safety, winter mode: LCD display snowflakes, summer mode: LCD display sun
(4) over-temperature protection: the product has over-temperature protection function, the product detects the temperature is too high, will start the over-temperature protection program, when the temperature returns to normal values, restore the initial charging state
(5) Overcharge protection: the product has an overcharge protection function to avoid overcharging resulting in a decline in battery life and to enhance the reliability of charging safety (maximum charging time default 15.5-16.0H)
(6) Charging voltage self-test: automatic self-test after the battery is charged, without artificial switching, the self-test
passes into the floating charge, and vice versa into the compensation charge, the compensation charge is completed into the floating charge
(7) LCD display status.
a: full state: LCD display "FUL", power grid "100%"
e: charging status: LCD cycle display voltage, current, temperature, power grid "charging special effects display"
f: repair mode: LCD display "PUL", power grid "repair effect display", repair icon flashing
g: no-load battery detection: LCD cycle display voltage, temperature, power grid according to the battery power in the form of percentage display.
circuit, reverse battery prompt (reverse connection 1-2S detection, detection of reverse connection reverse
connection or short circuit when the LCD display "ERO", the detection process will not cause damage to the product because of reverse connection or short circuit), and reverse connection, after the microprocessor program processing, there will be no reverse connection sparking henomenon occurs.
(2) battery power detection: no access to AC input voltage, battery clamps clamped on the positive and negative
(2) battery power detection: no access to AC input voltage, battery clamps clamped on the positive and negative
ends of the battery (red positive and black negative), you can display the battery current and voltage parameters in time (digital tube display data: voltage and ambient temperature cycle display, power grid according to the detected data
in the form of a percentage display, the first power 6S self-test waiting, 6S not to show the temperature, 6S to reach the temperature
and voltage cycle display)
(3) winter and summer mode: during the charging process, detect the ambient temperature, timely adjustment of the product charging
state to ensure battery life and charging safety, winter mode: LCD display snowflakes, summer mode: LCD display sun
(4) over-temperature protection: the product has over-temperature protection function, the product detects the temperature is too high, will start the over-temperature protection program, when the temperature returns to normal values, restore the initial charging state
(5) Overcharge protection: the product has an overcharge protection function to avoid overcharging resulting in a decline in battery life and to enhance the reliability of charging safety (maximum charging time default 15.5-16.0H)
(6) Charging voltage self-test: automatic self-test after the battery is charged, without artificial switching, the self-test
passes into the floating charge, and vice versa into the compensation charge, the compensation charge is completed into the floating charge
(7) LCD display status.
a: full state: LCD display "FUL", power grid "100%"
e: charging status: LCD cycle display voltage, current, temperature, power grid "charging special effects display"
f: repair mode: LCD display "PUL", power grid "repair effect display", repair icon flashing
g: no-load battery detection: LCD cycle display voltage, temperature, power grid according to the battery power in the form of percentage display.
