Quick Details
-
Model Number:
-
3/16''-2''
-
Name:
-
Natural Gas LPG/CNG Rubber Hose
-
Length:
-
50m/100m roll
-
Material:
-
NBR
-
Application:
-
Transporting liquefied petroleum gas, natural gas, hydrogen, nitrogen,
-
Certification:
-
ISO9001/TS16949
-
Color:
-
Blue Yellow Green Black Red
-
MOQ:
-
1 Meter
-
Feature:
-
Weather Resistant
-
OEM:
-
OEM Services Provided
-
Temperature:
-
-40°C~+100°C
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
PROLEADER
-
Model Number:
-
3/16''-2''
-
Name:
-
Natural Gas LPG/CNG Rubber Hose
-
Length:
-
50m/100m roll
-
Material:
-
NBR
-
Application:
-
Transporting liquefied petroleum gas, natural gas, hydrogen, nitrogen,
-
Certification:
-
ISO9001/TS16949
-
Color:
-
Blue Yellow Green Black Red
-
MOQ:
-
1 Meter
-
Feature:
-
Weather Resistant
-
OEM:
-
OEM Services Provided
-
Temperature:
-
-40°C~+100°C
EN 1762 Wholesale Flexible BS669 Cooker Hose Catering High Pressure Gas LPG CNG Hoses

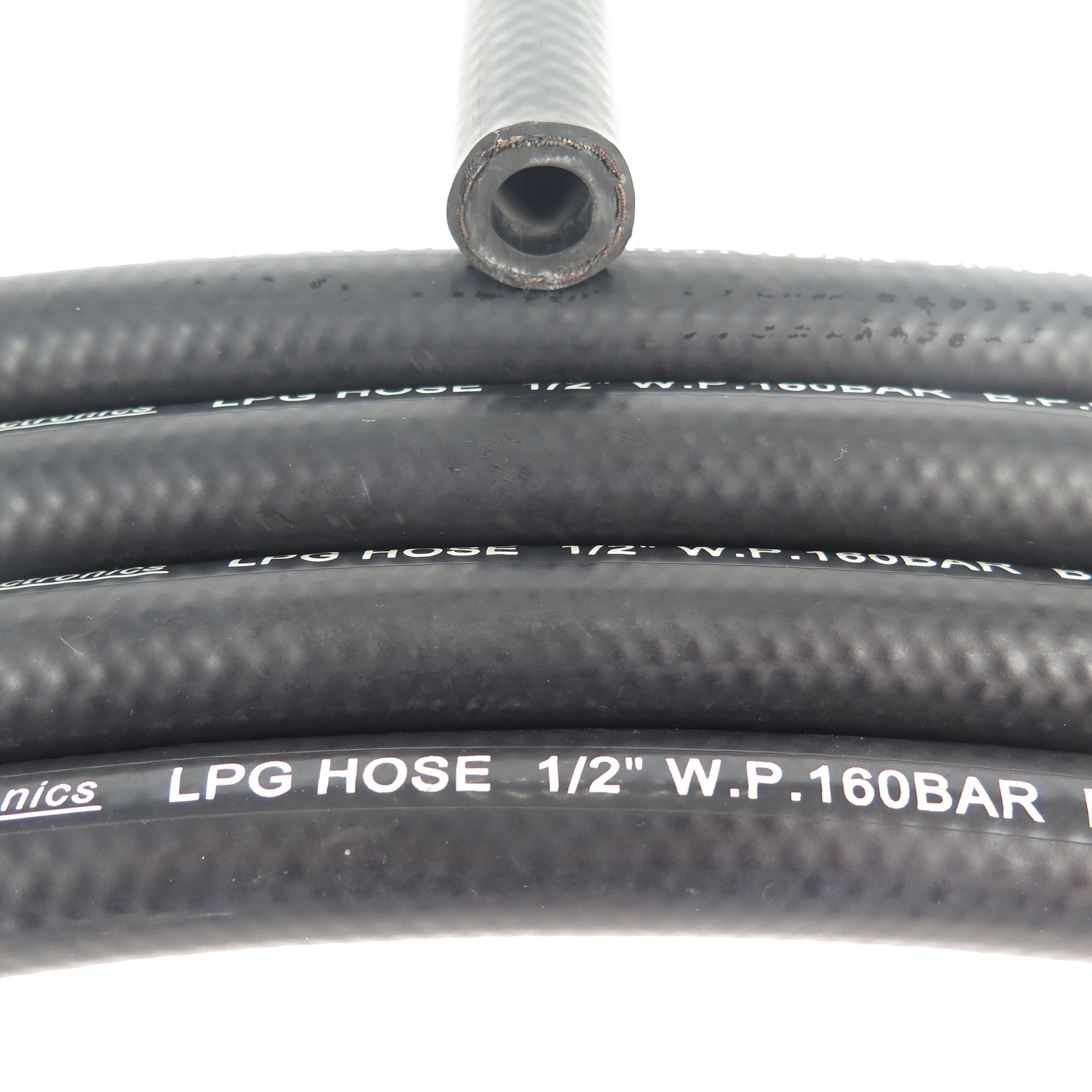

EN 1762 Wire Braided LPG & CNG Hose
| SIZE I.D | O.D | W.P | B.P | B.R | L | W.T | ||||
| dash | inch | mm | mm | bar | psi | bar | psi | mm | m/roll | kg/m |
| -3 | 3/16" | 4.8 | 13.0 | 250 | 3600 | 1000 | 14400 | 90 | 50-100 | 0.19 |
| -4 | 1/4" | 6.4 | 14.5 | 225 | 3250 | 900 | 13000 | 100 | 50-100 | 0.22 |
| -5 | 5/16" | 7.9 | 17.0 | 215 | 3100 | 860 | 12400 | 115 | 50-100 | 0.26 |
| -6 | 3/8" | 9.7 | 19.5 | 180 | 2600 | 720 | 10400 | 125 | 50-100 | 0.34 |
| -8 | 1/2" | 12.7 | 23.5 | 160 | 2300 | 640 | 9200 | 180 | 50-100 | 0.41 |
| -10 | 5/8" | 16.0 | 26.5 | 130 | 1900 | 520 | 7600 | 205 | 50-100 | 0.51 |
| -12 | 3/4" | 19.1 | 28.0 | 105 | 1500 | 420 | 6000 | 240 | 50 | 0.60 |
| -14 | 7/8" | 22.2 | 32.0 | 100 | 1500 | 400 | 5800 | 280 | 50 | 0.75 |
| -16 | 1" | 25.4 | 36.0 | 97 | 1260 | 388 | 5040 | 300 | 50 | 0.85 |
| -18 | 1.1/8" | 28.6 | 40.3 | 90 | 1350 | 360 | 5220 | 400 | 40 | 1.10 |
| -20 | 1.1/4" | 31.8 | 42.5 | 62 | 900 | 248 | 3600 | 420 | 40 | 1.22 |
| -24 | 1.1/2" | 38.1 | 48.5 | 50 | 720 | 200 | 2880 | 500 | 40 | 1.41 |
| -29 | 1.13/16" | 46.0 | 57.2 | 45 | 675 | 180 | 2610 | 600 | 40 | 1.76 |
| -32 | 2" | 50.8 | 62.0 | 40 | 580 | 160 | 2320 | 630 | 40 | 1.88 |
Tube: NBR; Reinforcement: One high tensile steel wire braid; Cover: Oil and weather resistant CR
Application: Transporting liquefied petroleum gas, natural gas, hydrogen, nitrogen, etc
Temperature Range: -40°C~+100°C; Appearance: Smooth or wrapped; Color: Black or multiple colors
