Quick Details
-
Model Number:
-
RIFFLEBOX
-
Product name:
-
Riffle Box
-
Standard:
-
EN 932-1, ASTM C136, BS 812, AASHTO T27 / T87
-
Range size:
-
6.3 mm
-
Material:
-
Stainless Steel 304
-
Weight:
-
1.5 kg
-
Application:
-
Used for the rapid preparation of dry material
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Hebei
-
Brand Name:
-
Festar
-
Model Number:
-
RIFFLEBOX
-
Product name:
-
Riffle Box
-
Standard:
-
EN 932-1, ASTM C136, BS 812, AASHTO T27 / T87
-
Range size:
-
6.3 mm
-
Material:
-
Stainless Steel 304
-
Weight:
-
1.5 kg
-
Application:
-
Used for the rapid preparation of dry material
Product Description

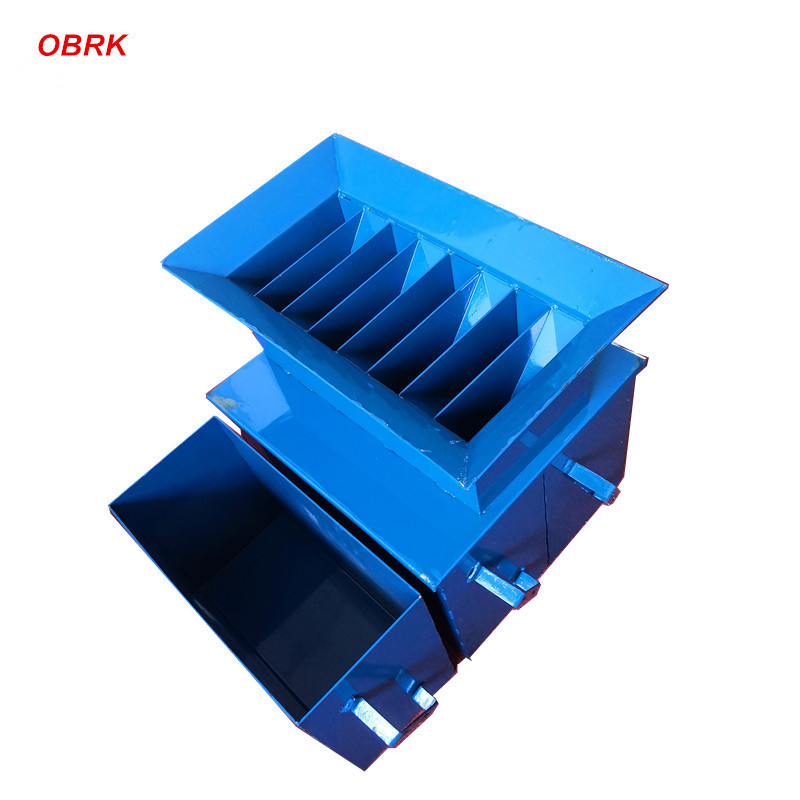

Lab Aggregate Sample Splitter / Soil Riffle Box / Riffle Sampler Dividers
Standard:
EN 932-1, ASTM C136, BS 812, AASHTO T27 / T87
Used for the rapid preparation of dry material such as cement, gravel, sand, soil etc. Material poured into the hopper is divided into two equal portions by a series of slot that discharge the material alternately in opposite direction into separate pans.
Used for the rapid preparation of dry material such as cement, gravel, sand, soil etc. Material poured into the hopper is divided into two equal portions by a series of slot that discharge the material alternately in opposite direction into separate pans.
Technical Specifications:
|
Model
|
Sloth Width
|
Sloth No.
|
Receiving container
|
Dimension (LxWxH)
|
Weight
|
|
NO.1
|
¼ inch / 6.3 mm
|
12
|
3 nos.
|
193 x 133 x 142 mm
|
1.5 kg
|
|
NO.2
|
3/8 inch / 9.5 mm
|
12
|
3 nos.
|
265 x 107 x 175 mm
|
3 kg
|
|
NO.3
|
½ inch / 12.7 mm
|
12
|
3 nos.
|
266 x 161 x 176 mm
|
3 kg
|
|
NO.4
|
¾ inch / 19.0 mm
|
12
|
3 nos.
|
400 x 214 x 263 mm
|
7 kg
|
|
NO.5
|
1 inch / 25.4 mm
|
12
|
3 nos.
|
340 x 243 x 295 mm
|
7 kg
|
|
NO.6
|
1½ inch / 38.0 mm
|
8
|
3 nos.
|
483 x 286 x 390 mm
|
15 kg
|
|
NO.7
|
2 inch / 50.8 mm
|
8
|
3 nos.
|
573 x 286 x 390 mm
|
18 kg
|
|
NO.8
|
2½ inch / 63.5 mm
|
8
|
3 nos.
|
653 x 380 x 430 mm
|
20 kg
|
