Quick Details
-
Brand Name:
-
BONAD
-
Model Number:
-
BND-SM208
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BONAD
-
Model Number:
-
BND-SM208
Specification
|
item
|
value
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM, ODM
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
BONAD
|
|
Model Number
|
BND-SM208
|
|
Power
|
Electronic
|
|
|
|
Product Description

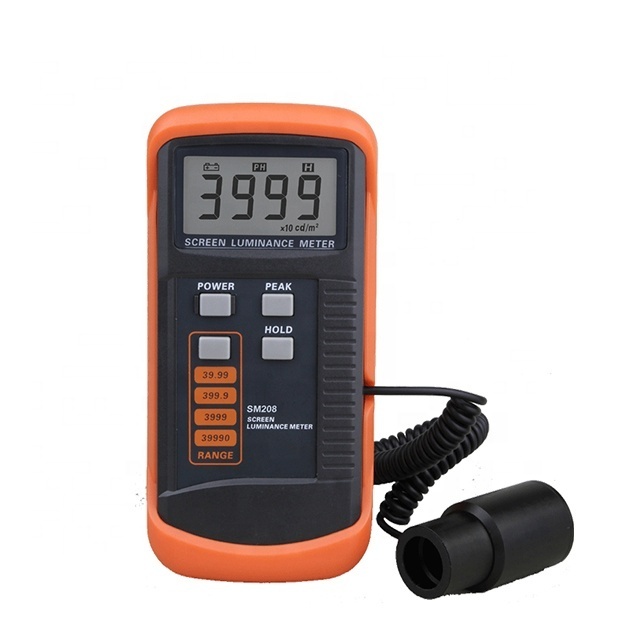

SM208 color screen luminance flux brightness meter
Features:
Adopting a detector powered by a silicone photocell with high stability, photostability, and shock resistance, strict vision
correction and accurate photometric measurement can be realized.
With a wide measuring range, it can measure between 0.01-39990cd/m2 without a dimmer.
It is a digital display with good indication reproducibility, data latching and peak value latching functions;
With very low power consumption, it can operate continuously for 100 hours on a 9V layer-built battery;
Mini light probe, measuring angle <10O;
Compact, portable, easy to use.
Technical specifications:
Measuring range 0.01-39990cd/m2
Measuring distance ≤1m
Object size ≥20, increasing with the increase of measuring distance
Precision:
≤+0.5% of the measured value +1 figure
Indication error:
≤+0.5% of the measured value +1 figure (relative to NIM standard)
Spectrum response characteristics:
In accordance with the standard of national grade I illuminometer
Linearity error: ≤+0.2% of the measured value +1 figure
Temperature characteristics: ≤+0.1% of the measured value +1 figure
Operating environment:
Temperature: (0-40)0C
Relative humidity: ≤85%
Dimensions and weight: 149X71X41mm3
Power supply: 9V layer-built battery (model 6F22)
Features:
Adopting a detector powered by a silicone photocell with high stability, photostability, and shock resistance, strict vision
correction and accurate photometric measurement can be realized.
With a wide measuring range, it can measure between 0.01-39990cd/m2 without a dimmer.
It is a digital display with good indication reproducibility, data latching and peak value latching functions;
With very low power consumption, it can operate continuously for 100 hours on a 9V layer-built battery;
Mini light probe, measuring angle <10O;
Compact, portable, easy to use.
Technical specifications:
Measuring range 0.01-39990cd/m2
Measuring distance ≤1m
Object size ≥20, increasing with the increase of measuring distance
Precision:
≤+0.5% of the measured value +1 figure
Indication error:
≤+0.5% of the measured value +1 figure (relative to NIM standard)
Spectrum response characteristics:
In accordance with the standard of national grade I illuminometer
Linearity error: ≤+0.2% of the measured value +1 figure
Temperature characteristics: ≤+0.1% of the measured value +1 figure
Operating environment:
Temperature: (0-40)0C
Relative humidity: ≤85%
Dimensions and weight: 149X71X41mm3
Power supply: 9V layer-built battery (model 6F22)
Packing & Delivery
customize Carton box
Delivery: 7 work days after payment
