Quick Details
-
Model Number:
-
RZ036A, RZ023WG
-
Type:
-
Wireless PIR motion sensor switch
-
Power:
-
Incandescent:1100W/220VAC Min.3W
-
Sensing Range:
-
7~9m ( <27°C)
-
Sensor Type:
-
Occupancy Motion Sensor Light Switch
-
Item No:
-
RZ036A,RZ023WG
-
Power source:
-
100V AC~265V AC
-
Detection Range:
-
<150°.
-
Detection Distance:
-
7~9m ( <27°C)
-
Installation Height:
-
1.2~1.6m
-
Time Delay:
-
15s, 1min, 3min, 5min, 15min, 30min(adjustable)
-
Light Sensor:
-
off, 15Lux, 25Lux, 35Lux
-
Working Temperature:
-
-20 ~ +40℃
-
Certification:
-
FCC,CE, Iso9001
Quick Details
-
Voltage:
-
100V AC~265V AC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayzeek
-
Model Number:
-
RZ036A, RZ023WG
-
Type:
-
Wireless PIR motion sensor switch
-
Power:
-
Incandescent:1100W/220VAC Min.3W
-
Sensing Range:
-
7~9m ( <27°C)
-
Sensor Type:
-
Occupancy Motion Sensor Light Switch
-
Item No:
-
RZ036A,RZ023WG
-
Power source:
-
100V AC~265V AC
-
Detection Range:
-
<150°.
-
Detection Distance:
-
7~9m ( <27°C)
-
Installation Height:
-
1.2~1.6m
-
Time Delay:
-
15s, 1min, 3min, 5min, 15min, 30min(adjustable)
-
Light Sensor:
-
off, 15Lux, 25Lux, 35Lux
-
Working Temperature:
-
-20 ~ +40℃
-
Certification:
-
FCC,CE, Iso9001
Products Description

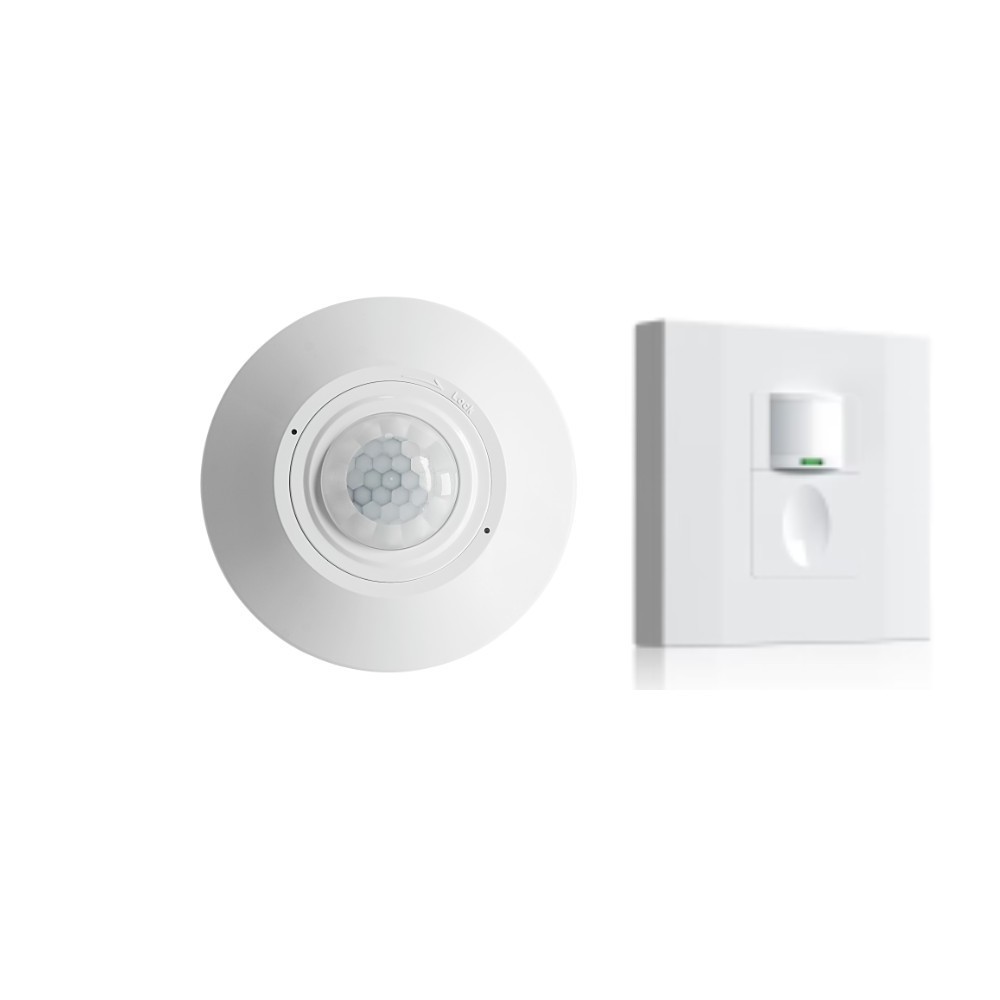

Automatic auto on off Double Control 2 way Wireless kit Ceiling mounted PIR motion sensor light switch
It is more convenient to adjust the time delay and other settings when adding this wall mounted wireless motion sensor switch to match the ceiling mounted motion sensor. No need to find a ladder to climb up to adjust it any more.
RZ023WG Product Description:
The RZ023WG Wireless occupancy sensor powered by 2 AAA batteries and is equipped with a wireless module. Its
primary function is to detect motion and communicate with the main control sensor (RZ036A). When motion is
detected, the sensor sends a signal to the control sensor (RZ036A) to switch on or maintain the light. If neither sensor
detects any movement within the user-set time period, the controller sensor (RZ036A) will determine that the space is
unoccupied and switch off the light. The RZ023WG Wireless occupancy sensor can be installed in areas where wiring
installation would be difficult or impossible, resulting in a significant reduction in labor and installation costs. Moreover,
its wireless nature allows for future flexibility as it can be easily moved to accommodate changes in room usage or
configuration.
The RZ036A can match RZ023WG, motion sensor light switch kit, control LED light or other device in double way. Each RZ036A can match 1 to max 10pcs RZ023WG. Since RZ023WG is wireless and 2*AAA battery powered, which can be installed in different places where you need to detect motion to control LED light, or the different places that difficult to wire. This RZ023WG match the RZ036A, it can solve the wiring problem in different detect area.
This kit uses an advanced passive infrared (PIR) motion sensor to detect people in the sensor zone and integrates a photocell for daylight sensing. Users can adjust the configuration by simply pressing the two push buttons on the panel without uncovering the wallplate.
RZ036A+RZ023WG Transmit Paring
Transmitter: the device powered by battery; (RZ022WG)
Receiver: the device connected to mains power; (RZ036A)
a. Add New Pairings
1) To prevent battery interference, firstly remove the battery from the transmitter or turn it back to people, there should be no other transmitters working nearby;
2) Press and hold the big button of the receiver, the red indicator will flash 1-6 times, and then release the big button after the indicator light stays on, new parings can be added at least 10 sets;
3) Install the battery on the transmitter and wait for 2-3 seconds, short press the big button of the transmitter, the learning will be successful after the indicator light flashes and goes out;
4) Optional testing.
b. Delete Existing Pairings
1) To prevent battery interference, firstly remove the battery from the transmitter or turn it back to people, there should be no other transmitters working nearby;
2) Press and hold the small button of the receiver, the red indicator flash 1-3 times, and then release the small button after the indicator light stays on, it will erase the existing pairings;
3) Install the battery on the transmitter and wait for 2-3 seconds, short press the big button of the transmitter, the learning will be successful after the indicator light flashes and goes out;
4) Optional testing.
|
Features
|
Power Source:
|
2pcs*AAA battery
|
|
|
||
|
|
Detection Range:
|
≤150°
|
|
|
||
|
|
Detection Distance:
|
6-9m max(<24)
|
|
|
||
|
|
Installation Height:
|
1m~1.6m
|
|
|
||
|
|
Working Humidity:
|
<93%RH
|
|
|
||
|
|
Working Temperature:
|
-20~+40
|
|
|
||
|
|
Communication range:
|
12-20Meters,suggest distance between RZ036A and RZ023WG not more than 12meter.
|
|
|
||
|
RZ036A
Features
|
Sensor Mode
|
Vacancy mode, Occupancy mode, Manual ON/OFF mode
|
|
|
||
|
|
Time-Delay
|
15 s, 1 min (default), 3 mins, 5 mins, 15 mins, 30 mins
|
|
|
||
|
|
Light Sensor
|
Off, 15 Lux, 25 Lux (default), 35 Lux
|
|
|
||
|
|
Sensor Sensitivity
|
Low Sensitivity, High Sensitivity
|
|
|
||
|
|
Power Source
|
100 VAC ~ 265 VAC
|
|
|
||
|
|
Power Frequency
|
50 / 60Hz
|
|
|
||
|
|
Installation Height
|
1.2 m ~ 1.6 m
|
|
|
||
|
|
Working Humidity
|
< 93%RH
|
|
|
||
|
|
Working Temperature
|
-20 ~ +40℃
|
|
|
||
|
Detection Capability
|
Detection Distance
|
7 m ~ 9 m (<27℃)
|
|
|
||
|
|
Detection Range
|
< 150°
|
|
|
||
|
|
Detection Speed
|
0.6 ~ 1.5m/s
|
|
|
||
|
Bulb Compatibility
|
Fluorescent / Ballast / LED
|
550 W / 120 VAC, 800 W / 277 VAC Min.3W
|
|
|
||
|
|
Incandescent / Halogen
|
550 W / 120 VAC Min.3W
|
|
|
||
It’s never too late to experience convenient, energy-saving, and hands-free motion-activated lighting. Easily save up to 60% of
energy and reduce your electricity bills with a simple upgrade to motion sensor light switches.
The versatile RZ036 motion sensor switch is applicable for every residential and commercial application with easy adjust for time delay, light lux and sensitivity, integrated for max compatibility, flexibility, and ease of use.
energy and reduce your electricity bills with a simple upgrade to motion sensor light switches.
The versatile RZ036 motion sensor switch is applicable for every residential and commercial application with easy adjust for time delay, light lux and sensitivity, integrated for max compatibility, flexibility, and ease of use.
RZ036A +RZ023WG, control your LED light in different way when you need
Rayzeek introduces the exclusive double way, or more way, to control the LED light or fan. When it is the classroom, people enter from one door, it will detect the motion and turn on the light or fan. When people enter the clasroom from the other door, one more RZ023WG will detect the motion, matches the RZ036A through RF433MHZ, to control the light or fan in the classroom.
This kit allowing users to permanently keep the load ON or OFF the same as a standard light switch. It’s so convenient that users can seamlessly switch between detection mode and manual mode with only one tap. Say goodbye to all these real-life headaches.
Do you need more RZ023WG to match your RZ036A for more motion detect area?
If yes, we solve the problem for you and no need to add wire. RZ023WG is wireless. Just need 2pcs AAA battery and adhersive to the wall, it will detect the motion and send signal to RZ036A to control the light or fan. We allow as much as 1pcs to 10 pcs RZ023WG to match RZ036A. It depends on how many different places that you want to detect the motion.
Exclusive ON/OFF Mode
Rayzeek introduces the exclusive double way, or more way, to control the LED light or fan. When it is the classroom, people enter from one door, it will detect the motion and turn on the light or fan. When people enter the clasroom from the other door, one more RZ023WG will detect the motion, matches the RZ036A through RF433MHZ, to control the light or fan in the classroom.
One significant profit after upgrading to motion-activated light switches is that you can both permanently keep the load ON or OFF the same as a standard light switch. And at the same time, it’s so convenient that you can seamlessly switch between detection mode and manual mode with only one tap, no need to just have one option to keep the lights always ON like you’re used to with the old wall switch.
The Best Of Both Worlds?
Rayzeek introduces the exclusive ON/OFF mode, allowing users to permanently keep the load ON or OFF the same as a standard light switch. It’s so convenient that users can seamlessly switch between detection mode and manual mode with only one tap.
Features & Benefits
* Magnetic latching relay provides better performance
* Made of fire-resistant materials for your safety
* RoHS, CE, FCC certified
* Time delay options: 15s, 1 min, 3 mins, 5 mins, 15 mins, 30 mins
* Enable ambient light sensor to keep lights off when there is ample natural light
* Low and high sensitivity adjustable
* Adjust settings by tapping buttons without removing the switch plate
* Magnetic latching relay provides better performance
* Made of fire-resistant materials for your safety
* RoHS, CE, FCC certified
RZ036 motion sensor switch is surface mounted and has wide voltage 100V-265VAC. It is suitable to all market that need ceiling mounted to control the light, fan or other devices.
* 5A Load:
Ideal for daily home and commercial use cases for controlling lights or fans
The RZ036A is designed for the US markets applications. The 100V-265V voltage range works well in homes and offices and the 5A current rating is competent for daily uses.
Installation Instructions
Product Paramenters
