Quick Details
-
Brand Name:
-
PXCSC
-
colour:
-
White , black , gray
-
Shape:
-
Square , Round
-
Holes Shape:
-
Square Holes, Round Holes, Triangle Holes
-
Meterial:
-
Cordierite, Mullite, High-Alumina ,Silicon Carbide, etc.
-
Hole size (mm):
-
1.3-1.92
-
Wall Thickness (mm):
-
0.45-0.6
-
heat transfer area (m2m3):
-
1190-1580
-
Porosity (%):
-
51.3-57
-
Size (mm):
-
customizable
Quick Details
-
Material:
-
Alumina Ceramic
-
Place of Origin:
-
Jiangxi, China
-
Model Number:
-
JXCSTT-CHS-003
-
Brand Name:
-
PXCSC
-
colour:
-
White , black , gray
-
Shape:
-
Square , Round
-
Holes Shape:
-
Square Holes, Round Holes, Triangle Holes
-
Meterial:
-
Cordierite, Mullite, High-Alumina ,Silicon Carbide, etc.
-
Hole size (mm):
-
1.3-1.92
-
Wall Thickness (mm):
-
0.45-0.6
-
heat transfer area (m2m3):
-
1190-1580
-
Porosity (%):
-
51.3-57
-
Size (mm):
-
customizable

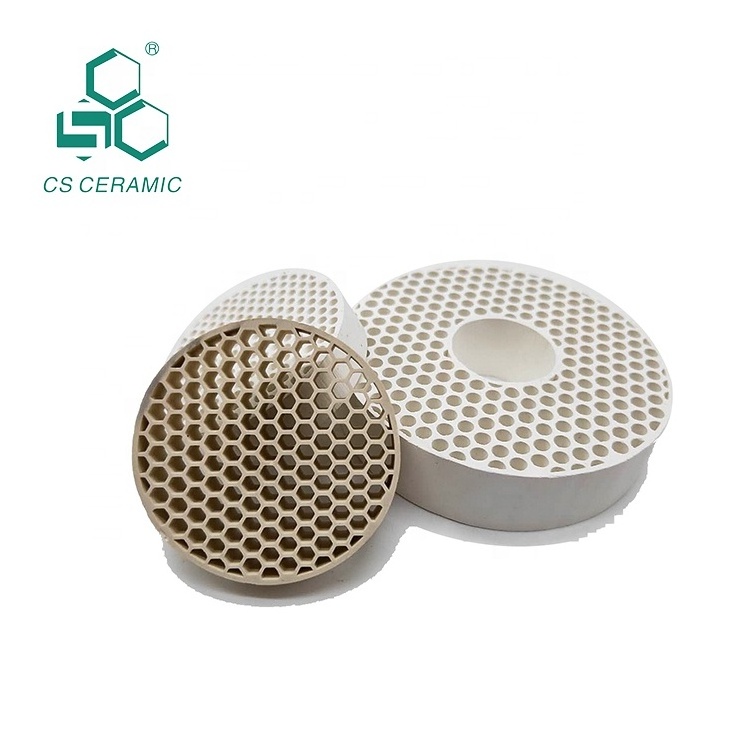

High purity honeycomb ceramic alumina ceramic filter for industrial use
Due to their basic filtering capacity and high heat capacity,these Ceramic Honeycomb Strainer are used rather in smaller dimensions and thickness for grey cast iron castings. The Ceramic Honeycomb Strainer capture particular slags and make mould filling more homogeneous and uniform, thus increasing purity of the cast metal and eliminating sand mixture erosion during casting.
| Class | Dimension (mm) | Hole Size (mm) | Wall Thickness (mm) | Heat Transfer Area (m 2 /m 3 ) | Porosity (%) |
| Ceramic Honeycomb Filter with Square Holes | 40*40*12 | 1.3 | 0.45 | 1580 | 51.3 |
| 40*40*12 | 1.92 | 0.6 | 1190 | 57 | |
| 50*50*12 | 1.3 | 0.45 | 1580 | 51.3 | |
| 50*50*12 | 1.92 | 0.6 | 1190 | 57 | |
| 55*55*12 | 1.3 | 0.45 | 1580 | 51.3 | |
| 55*55*12 | 1.92 | 0.6 | 1190 | 57 | |
| 66*66*12 | 1.3 | 0.45 | 1580 | 51.3 | |
| 66*66*12 | 1.92 | 0.6 | 1190 | 57 | |
| Ceramic Honeycomb Filter with Round Holes | 40*40*10 | 2.3 | 1.0 | 758 | 43.6 |
| 40*40*12.5 | 2.3 | 1.0 | 758 | 43.6 | |
| 50*50*12.5 | 2.3 | 10. | 758 | 43.6 | |
| 55*55*10 | 2.0 | 1.0 | 1190 | 40 | |
| 66*66*12.5 | 2.3 | 1.0 | 758 | 43.6 | |
| 75*75*15 | 2.3 | 1.0 | 758 | 43.6 | |
| 81*81*12 | 2.3 | 1.0 | 758 | 43.6 | |
| 81*81*15 | 2.3 | 1.0 | 758 | 43.6 | |
| 100*100*20 | 3.5 | 1.0 | 590 | 51 | |
| 132*132*20 | 5.0 | 1.2 | 438 | 57 | |
| Ceramic Honeycomb Filter with Triangle Holes | 40*40*12 | 2 | 0.45 | 1395 | 40 |
| 50*50*12 | 2 | 0.45 | 1186 | 40 | |
| 66*66*12 | 3 | 0.7 | 1186 | 52 | |
| 75*75*12 | 3 | 0.7 | 1186 | 52 | |
| 82*82*13 | 3 | 0.7 | 1186 | 52 | |
| 100*100*15 | 3 | 0.7 | 1186 | 52 |
1. What standards do you have?
Our products meet the stand
ards, such as
ANSI
,
BS
, AMS, DIN,
IEO
etc.
The third party testing is all available for us.
2. How can you control your quality?
For each production processing, we have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and the quality certificate will be shipped along with goods.
3. Does your company accept customization?
We accept OEM service.
4. What is your lead time?
It usually needs about 15- 20 days after receiving the PO.
5. What's the payment term that u can accept?
T/T or L/C
6. Are u the factory or trading company?
We are factory who was founded on 2002's with 61.58 million(Chinese Yuan)registered capital.
7. Can we visit your company?
Yes, for sure, you are welcome to visit our company.
8. Do you supply samples?
Yes, we would like to send the samples for your to check the quality.
Please feel free to contact us if you have any questions if you are interested.
