package can be customized
1pcs in a box
10pcs in one carton
GW: 18.85kg
Size:
60*55*40
cm
- Product Details
- {{item.text}}
Quick Details
-
Output level adjust range:
-
0-20dB
-
Input video:
-
0.7-1.4Vp-p
-
In Impedance:
-
75Ω
-
Video/Modulation:
-
87.5%
-
Frequency range:
-
47-900Mhz or Fixesd output
-
Ferquency stability:
-
≤5KMHz
-
RF-output level:
-
117dBμv
-
Difference of carrier frequency:
-
6500±5KMHz
-
S/N:
-
≥55dB
-
Item:
-
Agile Channel Optical Modulator
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WOLCK
-
Model Number:
-
WM-860P
-
Output level adjust range:
-
0-20dB
-
Input video:
-
0.7-1.4Vp-p
-
In Impedance:
-
75Ω
-
Video/Modulation:
-
87.5%
-
Frequency range:
-
47-900Mhz or Fixesd output
-
Ferquency stability:
-
≤5KMHz
-
RF-output level:
-
117dBμv
-
Difference of carrier frequency:
-
6500±5KMHz
-
S/N:
-
≥55dB
-
Item:
-
Agile Channel Optical Modulator

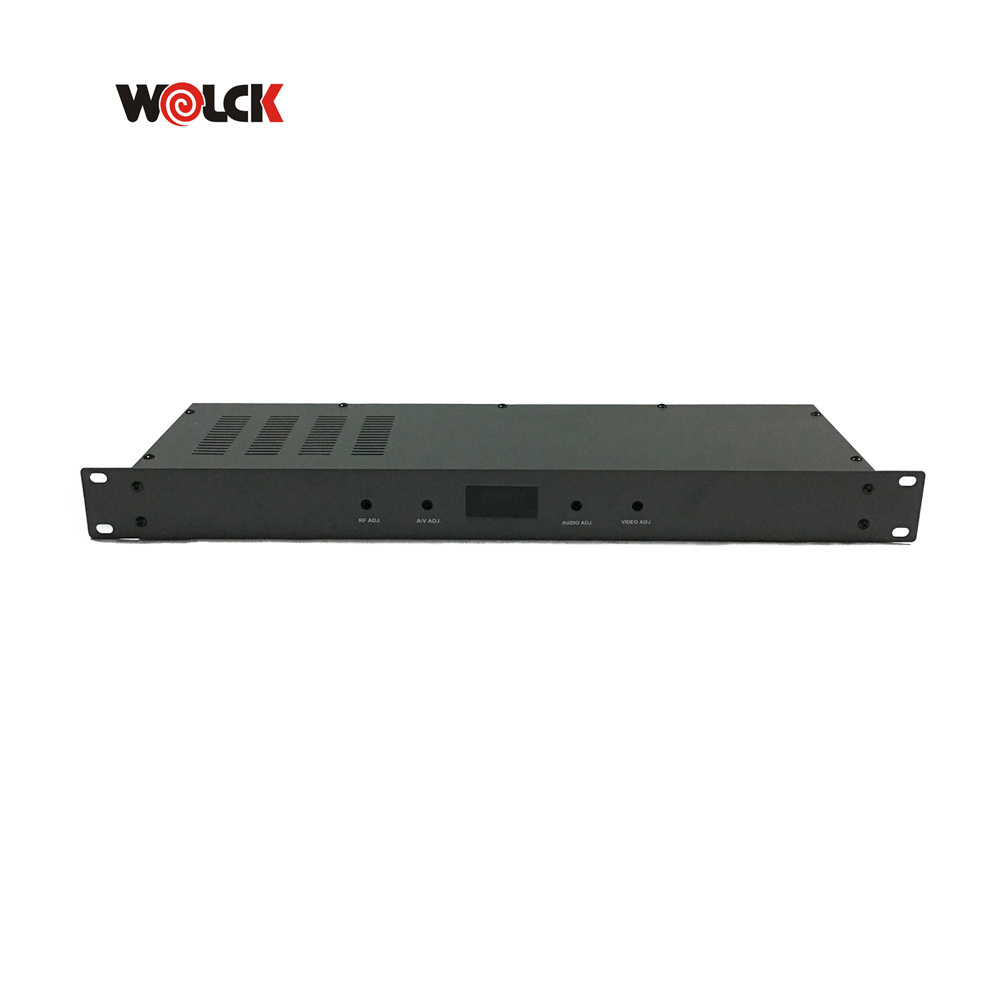

Professional Fixed CATV Modulator(WM-860P)
WM-860P Modulator use facial filler price,voice technology,IF/38MHz signal, picture, voice PLL technology, reliable filtter,excellent restrain abilty and high quality, high stabilty RF-output signal,suitable for CATV transmitting system.
(1)Standard radio and vedio signal input.
(2)All Channels in 47~900MHz.
(3)Use SAWF technology, ensure output signal.
(4)V/A、Video、radio adjustable.
(5)RF-output level adjustment: 0~－20dB.
(2)All Channels in 47~900MHz.
(3)Use SAWF technology, ensure output signal.
(4)V/A、Video、radio adjustable.
(5)RF-output level adjustment: 0~－20dB.
Single fixed modulator
|
Video UNIT
|
Input scope
|
0.71~.4Vp-p
|
RF UNIT
|
|
|
|
|
IN Impedance
|
75Ω
|
|
|
|
|
|
Video/Modulation
|
87.5%
|
|
|
|
|
|
Flatness in band
|
≤±1.5dB (Wide 5MHz)
|
|
|
|
|
|
Differential Gain
|
≤4%
|
|
|
|
|
|
Differential Phase
|
≤4°
|
|
|
|
|
|
Chrominance Luminance delay
|
≤40ns
|
|
|
|
|
|
S/N
|
≥52dB
|
Freguency range
|
47~900 MHz
Channel fixed output |
|
|
|
Suppression ability
|
≥26dB
|
Frequency stablilty
|
≤5KHz
|
|
|
Audio UNIT
|
Audio Input Level
|
0.775V±10dB
|
RF-output level
|
117dBμV
|
|
|
|
IN Impedance
|
10KΩ
|
Audio/Video Ratio
|
18dB±1
|
|
|
|
Audio Input Configuration
|
±50KHz
|
Output Impedance
|
75Ω
|
|
|
|
Aggravat
|
±50μs
|
Output Return loss
|
≥ 16dB
|
|
|
|
Flatness in band
|
≤±1.5dB (40Hz~15KHz)
|
Out Restrain
|
≥60dB
|
|
|
|
Distortion
|
≤1%
|
Difference of carrier frequency
|
6500±2KHz，6000±2KHz
|
|
|
|
S/N
|
≥55dB
|
Output Level adjust range
|
0~－20dB
|
|
Shenzhen Wolck Network Product Co.,Ltd. is located in Shenzhen city which is one of the first-tier cities in China. Wolck company is a high-tech enterprise specializing in the development of technology and equipment for EPON/GPON/CATV equipments.Production and equipments detailed can be shown online, and all products will be passed the test before shipment.
Wolck company not only offer equipments but also offer technical support and best service for after-sales. Wolck company also is Quality Guarantee Enterprise, got the ISO9000 cetificate, and offer cetificates such as CE, CO, FORM-E/F/M etc.
