Quick Details
-
Model Number:
-
wp-11
-
Installation:
-
speed 15sqm/person/day
-
Specification:
-
various and customized
-
Certificate:
-
CE,ISO,SGS
-
Feature:
-
light weight but strong
-
Customers:
-
Maldives,Morocco,Russia,Australia,Singapore,etc
-
Application:
-
wall,floor,roof
-
Advantage:
-
weatherproof,fireproof,anti-crack
-
Service:
-
best after-sale service
Quick Details
-
Type:
-
EPS Sandwich Panels
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
ZJT
-
Model Number:
-
wp-11
-
Installation:
-
speed 15sqm/person/day
-
Specification:
-
various and customized
-
Certificate:
-
CE,ISO,SGS
-
Feature:
-
light weight but strong
-
Customers:
-
Maldives,Morocco,Russia,Australia,Singapore,etc
-
Application:
-
wall,floor,roof
-
Advantage:
-
weatherproof,fireproof,anti-crack
-
Service:
-
best after-sale service
partition wall types /composite sandwich panels/ prefab basement walls
1. Composition: Calcium Silicate Board /Fiber Cement Board+ Cement+ EPS Foam
2. Products
|
Length (mm) |
Width (mm) |
Thickness (mm) |
Density (kg/m2) |
Application |
Appearance |
|
2440
2270
|
610 |
50 |
38± 5 |
Non-load bearing wall of houses & buildings |
With face board, solid |
|
60 |
42± 5 |
||||
|
75 |
45± 5 |
||||
|
90 |
52± 5 |
||||
|
100 |
56± 5 |
||||
|
120 |
62± 5 |
||||
|
125 |
65±5 |
||||
|
135 |
68±5 |
||||
|
150 |
72±5 |
||||
|
165 |
78±5 |
||||
|
180 |
85±5 |
||||
|
200 |
95±5 |
Remarks: 2270mm is the best size due to the width of container is 2300mm.

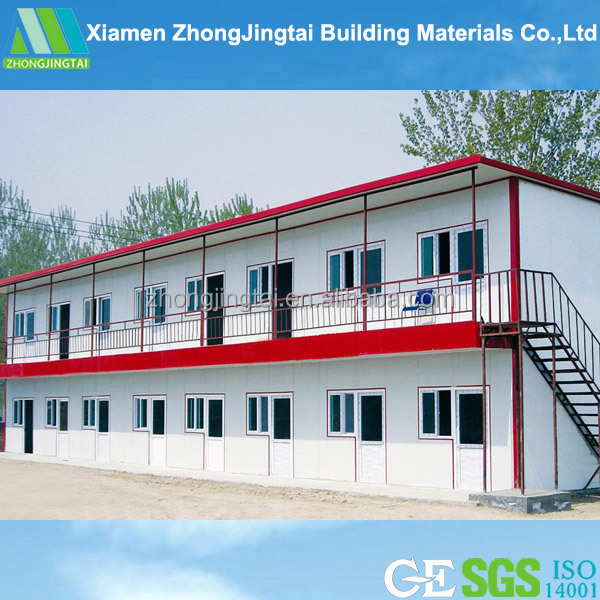

3.Application
*All kinds of new and old building constructions of indoor and outdoor decoration ;
*Indoor and outdoor decoration of office buildings, hospitals, shops , restaurants, bars and other public buildings;
Roof
*Interior and exterior wall decoration of family homes, luxury apartments , villas etc;
*Particularly suitable for high-rise building exterior wall insulation decoration.
4. Advantages
Sound-insulation 40bB-60dB
Best hanging force
Area–saving, fire-proof for 4 hours under 1000 degrees Celsius
Waterproof and wetproof
Anti-quake and ianti-mpact
Healthy and high efficient construction
Energy-saving, light weight, environment-friendly
| features | more detail | ||||||||||||
| 1 | green | 100% free of harmful substances and are of A non-radioactive products, standard GB6566-2001. | |||||||||||
| 2 | lightweight economic | The volume-weight only 750-800kg/m3 , the weight of 75mm thickness ZJT board is 60kg/m2, equal to 1/6 of brick weight, 1/7 of 120mm thickness masonry. | |||||||||||
| 3 | increase valid space |
the thickness of ZJT wall decreases 85mm by using 75mm thickness ZJT boards. Thus, valid space increases 1/m2 per 11.8mm. in other words, it can increase 6/m2 per 100/m2 .
|
|||||||||||
| 4 | moistureproof waterproof | will keep dry and leave no stains. During humid days, the boards will not condense water either. suitable to be installed in such wet areas as kitchens, bath rooms, basements because of its moistureproof and waterproof. | |||||||||||
| 5 | fireproof | Fireproof limit of ZJT boards is more than 4 hours and does not emit toxic gases under 1000 degree. The nonflammable performance reaches national A-class standard. | |||||||||||
| 6 | heat insulation | ZJT board is composed of special material to keep heat and thermal within a favorable condition. At same time, the ZJT boards are able to adjust moisture automatically and keep moisture at a balance level. | |||||||||||
| 7 | sound insulation | The raw materials of ZJT boards have good performance in sound insulation. ZJT board with 90mm thickness gains sound insulation of 42dB. | |||||||||||
| 8 | walls can be nailed and grooved | ZJT board can be grooved to have conductor arrangement or nailed to hang heavy object. The surface of ZJT board is smooth enough to make finisher processing directly with tile, wall trim and so on. | |||||||||||
| 9 | good integration | By using steels at the joints, the strength of walls is high enough to do partition in large story height and long span structures and it anti-seismic performance is several times higher than masonry. | |||||||||||
| 10 | easy and fast construction | It can be cut to adjust length and width at will. The process of installation is easy and fast, without the need of plastering. | |||||||||||
5. Installation ways
6. Technical parameters
| Item | National Standards | Testing Indexes | |||||
| 60mm | 90mm | 120mm | 60mm | 90mm | 120mm | ||
| 1 | Anti-impact Capacity/times | ≥5 | ≥5 | ≥5 | ≥8 | ≥10 | ≥15 |
| 2 | Anti-bending damage load/times over deadweight | ≥1.5 | ≥1.5 | ≥1.5 | ≥3 | ≥4 | ≥5 |
| 3 | Compressive strength /Mpa | ≥3.5 | ≥3.5 | ≥3.5 | ≥5 | ≥5 | ≥5 |
| 4 | Softening coefficient | ≥0.80 | ≥0.80 | ≥0.80 | ≥1 | ≥1 | ≥1 |
| 5 | Surface density g/m2 | ≤70 | ≤90 | ≤110 | ≤55 | ≤70 | ≤85 |
| 6 | Moisture rate a/% | ≤12/10/8 | ≤10/9/7 | ||||
| 7 | Drying shrinkage value /mm/m | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.45 | ≤.0.5 | ≤0.5 |
| 8 | Hanging Force/N | ≥1000 | ≥1000 | ≥1000 | ≥1200 | ≥1300 | ≥1500 |
| 9 | Sound insulation capacity in the air /Db | ≥30 | ≥35 | ≥40 | ≥35 | ≥40 | ≥45 |
| 10 | Fire proof limit /h | ≥1 | ≥1 | ≥1 | ≥2.5 | ≥3 | ≥4 |
| 11 | Heat transfer coefficient w/m2.k | ≤1.0 | ≤1.0 | ||||
| 12 | Radioactivity Limit | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| 13 | IRa (Inner radiation indexes) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| 14 | Ir (Outer radiation indexes) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
7. Certification
9. Our factory
10. PACKAGE and shipment
Goods will be packed well in 20"/40"container, shipped by sea.
| Items(mm) Length*Width*Thickness | single(Pc) | Load by 20'GP | ||||||
| m3 | Kg/pc | kg/2 | Qty(pc) | m 2 | Tons | |||
| 2270*610*75 | 0.10 | 65 | 52 | 252 | 349 | 17 | ||
| 2270*610*90 | 0.12 | 73 | 60 | 216 | 299 | 17 | ||
| 2270*610*100 | 0.14 | 79 | 65 | 198 | 274 | 17 | ||
| 2270*610*120 | 0.17 | 90 | 74 | 162 | 224 | 16 | ||
| 2270*610*150 | 0.21 | 106 | 88 | 126 | 174 | 15 | ||
| 2270*610*180 | 0.25 | 123 | 102 | 108 | 150 | 14 | ||
| 2440*610*120 | 0.18 | 95 | 69 | 132 | 196 | 14 | ||
| 2440*610*150 | 0.22 | 112 | 76 | 102 | 152 | 12 | ||
| 2440*610*180 | 0.27 | 130 | 88 | 90 | 134 | 13 | ||
Xiamen ZhongJingtai Building Materials Co.,Ltd is a specialized high-tech enterprise integrating the R&D, production, sale and installation of new energy-saving lightweight wall materials such as wall eps sandwich panel, wall panel, wall tiles and the manufacture of relevant machinery product line . In an active r esp onse to the national policy about wall material reforming, our company has fully absorbed the advanced technologies from at home and abroad.
High quality best price ZJT will be your best choice and we welcome your test sample!!! Contact: Alice, skype:rose47991, Mobile:+86-592-5216902
