Quick Details
-
Weight (KG):
-
650
-
Voltage:
-
220V
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
KST
-
Dimension(L*W*H):
-
3727 * 1260 * 2432mm
-

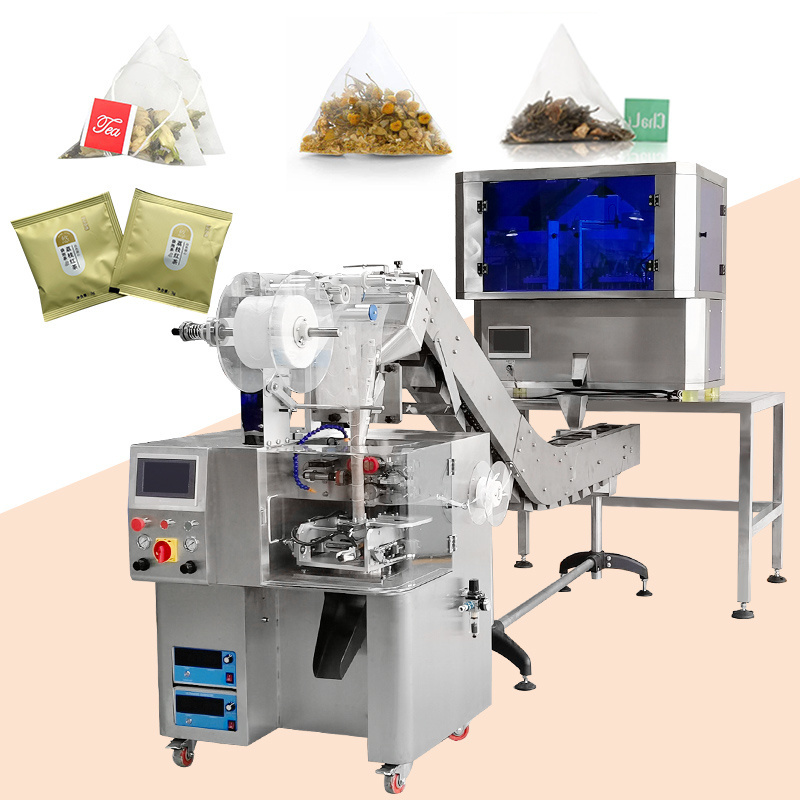

Machine type:
-
Pyramid tea packing machine
-
Inner Sealing Method:
-
Full ultrasonic
-
Certification:
-
CE Certification
-
Capacity:
-
45-60 bags per minute
-
Filling Range:
-
2~10 g
-
Film Width:
-
120, 140, 160mm or customized
-
Control System:
-
Control System
-
Packing type:
-
Seal 3-side Seal
-
Filling material:
-
Powder Sachet
-
After-sales Service Provided:
-
Online Support
Quick Details
-
Function:
-
FILLING, Labeling, Sealing
-
Packaging Type:
-
Bags, Foil
-
Packaging Material:
-
Plastic, laminated film
-
Weight (KG):
-
650
-
Voltage:
-
220V
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
KST
-
Dimension(L*W*H):
-
3727 * 1260 * 2432mm
-
Machine type:
-
Pyramid tea packing machine
-
Inner Sealing Method:
-
Full ultrasonic
-
Certification:
-
CE Certification
-
Capacity:
-
45-60 bags per minute
-
Filling Range:
-
2~10 g
-
Film Width:
-
120, 140, 160mm or customized
-
Control System:
-
Control System
-
Packing type:
-
Seal 3-side Seal
-
Filling material:
-
Powder Sachet
-
After-sales Service Provided:
-
Online Support
We are leading manufacturer of tea bag packaging machines. Offering professional solutions for various single tea leaf, flower tea, fruit tea, herbs etc. for domestic and international clients.
Designed to meet any production rates, package style and budget.
Our vibration scales are high precision for smaller weigher measuring,can pack all regular tea or those irregular shape herbs, flowers. Also can blend and weight different tea material into one tea bag etc.
The automatic filling sealing system to make it’s friendly for operation.Ultrasonic sealing system to make it’s healthier and more beautiful bag forming. Both inner and outer bag packing make production easier and higher effieciency.
There’re different measuring devices for options depends on the products’ formula and speed requests.
For granules: 2heads/4heads/6heads/8heads/10 heads/12heads scales. (The more scales, the quicker speed, each scale’s capacity about 10bags/min.) Please adopt Mingdian high speed pyramid tea bag packing machine if you request for more than 60bags/Min.
For powder: Screw measuring system, auger feeder.(Eg.: Dip coffee)
|
Model
|
KST-160D
|
|
|
|
|||
|
Working Speed
|
30-60 bags/min
|
|
|
|
|||
|
Filling System
|
2 Times Feeding Weigher
|
|
|
|
|||
|
Bag Size
|
L:50-52mm, Width:68-70mm
|
|
|
|
|||
|
Bag Type
|
Pyramid / Rectangular
|
|
|
|
|||
|
Sealing Method
|
Ultrasonic Sealing
|
|
|
|
|||
|
Air Comsumpion
|
≥0.6Mpa ,0.4m³/min ( Air compressor to be prepared by client)
|
|
|
|
|||
|
Power
|
220V, Single Phase, 50Hz
|
|
|
|
|||
|
Weight
|
387kg
|
|
|
|
|||
|
Overall Denmensions
|
3727mm*1260mm*2432mm
|
|
|
|
|||
1.This machine adopts
PLC
control system,which makes it working more stable, accuracy,high performance and efficiency.
2.It’s avaliable for both pyramid and flat-square tea bag packages, and can be easily exchanged between each form.
3.
Electronic scales weighing system is more suitable for single material, multi kind materials or irregular materials,which volume cup and liner weigher can not work. The measuring of each scale can be controlled separately and the independent program control system can be used to achieve any combination
.
4.The ultrasonic cutting sealing system for inner bag makes it more realiable and beautiful bags.
5.The independent R and D technical for degradable materials makes its finished product >20% better than others.
KST grown from the brand of "Ming dian",was established in Chengdu,China in the year of 2011.It is an integrating enterprase of
R&D, manufacturing and sales. With more than 10years experences in fieds of packaging solutions,KST be the leading supplier for
industries as tea,coffee,food and medicine etc...
R&D, manufacturing and sales. With more than 10years experences in fieds of packaging solutions,KST be the leading supplier for
industries as tea,coffee,food and medicine etc...
Since it's building, "Ming dian" dedicated in "MADE IN CHINA 2025" and product coverage reaches 30% at home and 70% abroad
international market.Focus on the development and service of international market. KST creating a SAFE,STABLE and HIGH-PERFORMANCE
packaging equipment system,providing our customers with exclusive services,keeping our goals as "Quality guarantee""Delivery
guarantee""Consistent improvement""Customer satisfaction". We are willing to cooperate with all our clients and seek our common
development.
international market.Focus on the development and service of international market. KST creating a SAFE,STABLE and HIGH-PERFORMANCE
packaging equipment system,providing our customers with exclusive services,keeping our goals as "Quality guarantee""Delivery
guarantee""Consistent improvement""Customer satisfaction". We are willing to cooperate with all our clients and seek our common
development.
CONTACT US
If you would like to know more product details and inspection reports, please contact us
FAQ
Service before Sale
1
.
24 hours on line
for quick response: reply within 2 hours for any inquiry.
2.
Free
solutions consultation.
3.
Free
sample testing.
4.
Visit our factory
is welcome.
Service on Sale
1. Strict QC for each assembling process, testing and assembled machines.
2.
Assembling pictures / testing videos
during production is available.
3. Pack well with
standard export wooden case
after you confirm the machine is OK for shipment:
Cleaning---Oil---Wrapping---Fixed tightly
in wooden case.
4. Delivery on time.
Service after Sale
1. Free training.
2.
Operation manual and videos
for installation, setting, debugging, maintenance
3.
Free online communication
with our
engineer
is available.
4. Quick
answers within 2 hours
for any questions.
5. AS engineer is available to send to your factory for services.
6. During warranty, if any defects or malfunctions which have been proved to be caused by our side, we are obliged to
supply technical assistance to the buyer
to ensure their normal production and
send spare parts for replace as free
, but the buyer should pay the transport charges.
