Quick Details
-
Brand Name:
-
TPLK
-
Use:
-
FTTH
-
Warranty Time:
-
1year
-
Model:
-
Digital RF Encoder Modulator
-
Certification:
-
FCC RoHS ce
-
Modulation:
-
DVB-T/DVB-C/T/ATSC/ISDB-T
-
Input:
-
8/16/24 HD MI+2ASI
-
Power requirements:
-
AC100~240V,50/60Hz
Quick Details
-
Type:
-
FTTx Solutions
-
Model Number:
-
Digital RF Encoder Modulator
-
Place of Origin:
-
Guangdong, China, Guangdong China (Mainland)
-
Brand Name:
-
TPLK
-
Use:
-
FTTH
-
Warranty Time:
-
1year
-
Model:
-
Digital RF Encoder Modulator
-
Certification:
-
FCC RoHS ce
-
Modulation:
-
DVB-T/DVB-C/T/ATSC/ISDB-T
-
Input:
-
8/16/24 HD MI+2ASI
-
Power requirements:
-
AC100~240V,50/60Hz
Product Description
|
Input
|
4/8/12/16/20/24 tuner; and the tuner supports (DVB-S2/DVB-C/DVB-T/ATSC/ISDBT)
|
|
|
|
|||
|
|
2 ASI inputs
|
|
|
|
|||
|
|
1000M IP input
|
|
|
|
|||
|
Output
|
4/8/16/ RF output（DVB-C/DVB-T/ATSC/ISDBT）
|
|
|
|
|||
|
|
2 ASI output
|
|
|
|
|||
|
|
IP output（SPTS and MPTS）IP output over UDP and RTP protocol
|
|
|
|
|||
|
Multiplexing
|
Maximum PID Remapping
|
180 output pids per channel
|
|
|
|||
|
|
Function
|
PID remapping ( automatically or manually)
|
|
|
|||
|
|
|
Accurate PCR adjusting
|
|
|
|||
|
Modulator
|
DVB-T
|
RF number
|
4/8/16 RF DVB-T output
|
|
|||
|
|
|
Standard
|
EN300744
|
|
|||
|
|
|
FFT mode
|
2K
|
|
|||
|
|
|
bandwidth
|
6M, 7M, 8M
|
|
|||
|
|
|
Constellation
|
QPSK, 16QAM, 64QAM
|
|
|||
|
|
|
Guard Interval
|
1/4, 1/8, 1/16, 1/32
|
|
|||
|
|
|
FEC
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
|||
|
|
|
MER
|
≥42 dB
|
|
|||
|
|
|
RF frequency
|
50~960MHz, 1KHz step
|
|
|||
|
|
|
RFoutput level
|
-34~ -10 dBm, 0.1db step
|
|
|||
|
|
DVB-C
|
RF number
|
4/8/16 RF DVB-C output
|
|
|||
|
|
|
Standard
|
EN300 429/ITU-T J.83A/B/C
|
|
|||
|
|
|
MER
|
≥42db
|
|
|||
|
|
|
RF frequency
|
50~960MHz, 1KHz step
|
|
|||
|
|
|
RFoutput level
|
-34~-10dBm , 0.1dBm step
|
|
|||
|
|
|
Symbol Rate
|
5.0Msps~7.0Msps,1ksps stepd
|
|
|||
|
|
|
|
J.83A
|
J.83B/J.83C
|
|||
|
|
|
Constellation
|
16/32/64/128/256QAM
|
64/256 QAM
|
|||
|
|
|
Bandwidth
|
8M
|
6M
|
|||
|
|
ATSC
|
RF number
|
4/8/16 RF ATSC output
|
|
|||
|
|
|
Standard
|
ATSC A/53
|
|
|||
|
|
|
Bandwidth
|
6M
|
|
|||
|
|
|
Constellation
|
8VSB
|
|
|||
|
|
|
FEC
|
RS(208 188)+Trellis
|
|
|||
|
|
|
MER
|
≥42dB
|
|
|||
|
|
|
RF frequency
|
50~960MHz, 1KHz step
|
|
|||
|
|
|
RFoutput level
|
-34~-10dBm , 0.1dBm step
|
|
|||
|
|
ISDB-T
|
RF number
|
4/8/16 RF ISDB-T output
|
|
|||
|
|
|
Standard
|
ARIB STD-B31
|
|
|||
|
|
|
Bandwidth
|
6M
|
|
|||
|
|
|
Constellation
|
QPSK, 16QAM, 64QAM
|
|
|||
|
|
|
Guard Interval
|
1/32, 1/16, 1/8, 1/4
|
|
|||
|
|
|
Transmission Mode
|
2K
|
|
|||
|
|
|
Code rate
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
|||
|
|
|
MER
|
≥42dB
|
|
|||
|
|
|
RF frequency
|
50~960MHz, 1KHz step
|
|
|||
|
|
|
RFoutput level
|
-34~-10dBm , 0.1dBm step
|
|
|||
|
System function
|
Network management(WEB)
|
|
|
|
|||
|
|
Chinese and English language
|
|
|
|
|||
|
|
Ethernet software upgrade
|
|
|
|
|||
|
Miscellaneous
|
Dimension
(W×L×H) |
550mm×515mm×140mm
|
|
|
|||
|
|
weight
|
6kg
|
|
|
|||
|
|
Environment
|
0~45℃(work)；-20~80℃(storage)
|
|
|
|||
|
|
Power requirements
|
AC100~240V，50/60Hz
|
|
|
|||

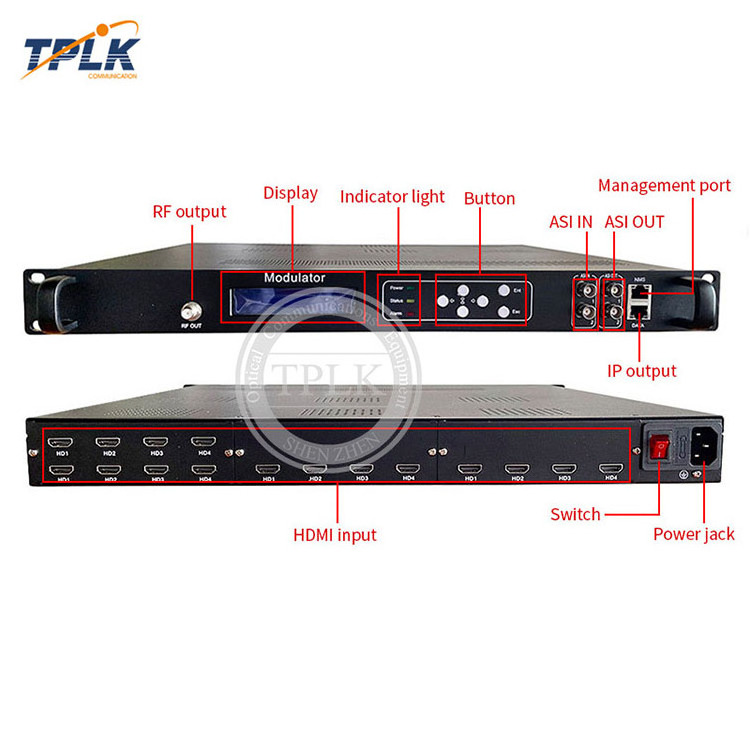

HD Encoder Modulator is Catcast’s professional high integration device which includes encoding, multiplexing, and modulation. It supports 4/8/12/16/20/24 HD MI input, 1000 trillion IP input/output, 4/8 carriers RF output (DVB-C、DVB-T、ATSC、ISDB-T、DTMBT), support IP output (4/8/12/20/24 SPTS and 1 MPTS output). In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, IPTV multicast, digital TV broadcasting etc.
Features
● 4/8/12/16/20/24 HD MI input, support HDCP
● Support MPEG-4 AVC/H.264 video encoding
● Support MPEG-1 Layer2, LC-AAC, HE-AAC v1&v2 audio encoding
● 1000 trillion IP input over UDP and RTP protocol, and IP output over UDP and RTP protocol(MPTS and SPTS)
● RF output (DVB-C、DVB-T、ATSC、ISDB-T、DTMBT optional)
● 4/8/12/16 HD MI input, 4 carrier RF output
● 20/24 HD MI input, 8 carrier RF output
● 2 ASI input
● 2 ASI Independent output (optional) as copy of 1 MPTS
● Support “Null PKT Filter” function
● Support PID Remapping/ PCR accurate adjusting
● PID pass
● LCD、key function
● Control via web management, and easy updates via web
