Quick Details
-
Raw materials:
-
Sand, cement, fly ash, eps etc.
-
Advantage:
-
Waterproof, fireproof and eco-friendly etc.
-
Anti-earthquake:
-
8-13 grade
-
Use life:
-
>70 years
-
Sound insulation:
-
>45dB
-
Anti-wind:
-
13 degree
-
Compressive strength:
-
≥3.5 Mpa
-
Hanging force:
-
≥1000 N
-
Sample available:
-
Yes
Quick Details
-
Place of Origin:
-
Aland Islands
-
Brand Name:
-
zjt
-
Model Number:
-
zjt-p355
-
Raw materials:
-
Sand, cement, fly ash, eps etc.
-
Advantage:
-
Waterproof, fireproof and eco-friendly etc.
-
Anti-earthquake:
-
8-13 grade
-
Use life:
-
>70 years
-
Sound insulation:
-
>45dB
-
Anti-wind:
-
13 degree
-
Compressive strength:
-
≥3.5 Mpa
-
Hanging force:
-
≥1000 N
-
Sample available:
-
Yes
ZJT EPS Cement Sandwich Panel is a kind of lightweight energy saving wall material, which uses cement calcium silicate or reinforced calcium silicate board as face panel, filled with cement, Expanded Polystyrene (EPS) foam particles, and as core material and forming by one time compound.
Advanatges of ZJT Eps cement sandwich panel
1. FAST INSTALLATION AND FIRE PROOF
Our pre-cast wall panels feature a tongue and groove
design that reduces installation times, increases labor
efficiency and saves on costs. Electrical and plumbing
installations can be completed 5 - 10 times faster when
compared to using traditional hollow blocks.
FAHSTWALL panels were also tested to withstand up to
1,000°C for 120 minutes and compliant to the standard for Grade A Fireproof Materia
2. ACOUSTICALLY EFFECTIV
A 42dB sound insulation test result complies with the
National Insulation Test Standard GBJ121-88.
Minimal sound transmission and noise reduction are
accomplished due to the higher density and unique
composition of the wall panel material. This results in a
more comfortable and quiet environment without the need
to use any additional insulation products thereby saving on costs
3. Highly Seismic Resilient
The tongue and groove design of our wall panels are
attached and secured using a firm sealant and adhesive.
This transforms multiple wall panels into one sturdy wall
with impact resistance and bending qualities that are better
than traditional brick walls secured with ordinary cement.
4. STRUCTURALLY SAFE AND ECONOMICAl
The lightweight materials used in our panels are 1/6th the
weight of normal 120mm thick brick walls and 60% lighter
than traditional hollow blocks. This minimizes the load on
the beams and columns which equates to significant cost
reduction on the structural frame of the building.
Our panels are also moisture proof, water resistant and
ready for painting as soon as they are installed and joined
using our firm sealant and adhesive
5. .THERMALLY EFFICIENT AND GREEN
The ZJT WALL system is much more thermally efficient
in heat absorption and dissipation due to its density and
the materials used. This results in a cooler interior
environment and cost savings from reduced air
conditioning usage.
Our wall panels comply with the Standard of Radiation
Hygiene and Protection of Building Material (GB6566-86)
making them environmentally friendly and safe.

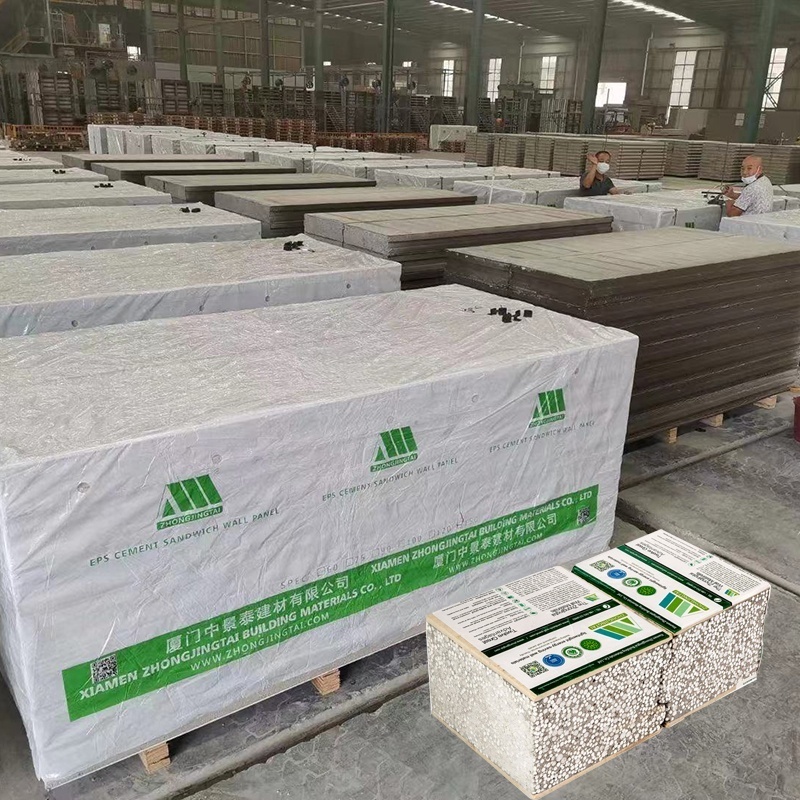

8. ZJT Sandwich Panel Package and Shipping
1) Free packing, normal pallet + packing belt
2) Standard exporting packing, good pallet+pearl wool+corner protective paper+packing belt+plastic thin film
3) Packing size: 2270*610*(60-200)mm
4)Loading: Normally 18 pallets per 20' container or according to clients' requirements
|
Items(mm) Length*Width*Thickness |
single(Pc) |
Load by 20'GP |
||||
|
m3 |
Kg/pc |
kg/2 |
Qty(pc) |
m2 |
Tons |
|
|
2270*610*75 |
0.10 |
65 |
52 |
252 |
349 |
17 |
|
2270*610*90 |
0.12 |
73 |
60 |
216 |
299 |
17 |
|
2270*610*100 |
0.14 |
79 |
65 |
198 |
274 |
17 |
|
2270*610*120 |
0.17 |
90 |
74 |
162 |
224 |
16 |
|
2270*610*150 |
0.21 |
106 |
88 |
126 |
174 |
15 |
|
2270*610*180 |
0.25 |
123 |
102 |
108 |
150 |
14 |
|
2440*610*120 |
0.18 |
95 |
69 |
132 |
196 |
14 |
|
2440*610*150 |
0.22 |
112 |
76 |
102 |
152 |
12 |
|
2440*610*180 |
0.27 |
130 |
88 |
90 |
134 |
13 |
9. About us
Xiamen ZhongJingtai building materials Co., Ltd, is a professional high-tech research and development company producing new wall materials, machinery and equipment development, technology production and promotion of product applications. The company is situated in the charming Xiamen city, with the convenience of water and land transportation and only ten minutes from the airport. We respond positively to the national policy on wall reforming. We have developed successfully wall panels that meet the energy saving needs of modern architecture. We can produce more than 2 million square meters of various wall materials annually.
The light composite wall materials produced by us are environmentally-friendly, highly efficient, light, solid, thin, seismic resistant, good insulation, sound-proof, water-proof, fire-resistant , among other advantages.
We adhere to the "quality first, win-win cooperation" business philosophy and provide our value customers with strong technical support and package services. With our top quality products and credibility, we pledge to collaborate with our partners to thrive together while meeting the demands of the market. We are committed to contribute these superior and environmentally-friendly wall materials to the society.
