Quick Details
-
Product name:
-

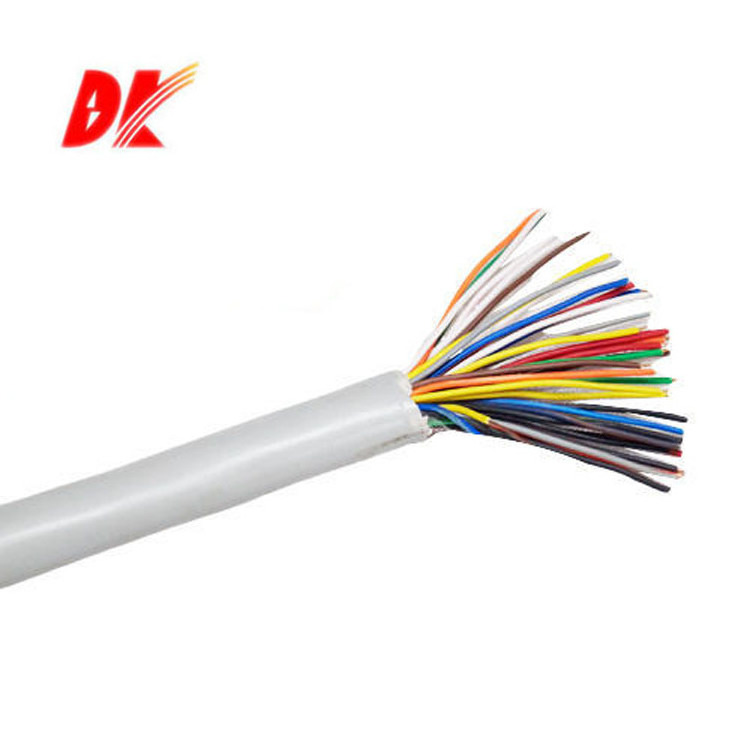

40 pairs multicore telephone cable
-
cable type:
-
Telephone cable, HYV HYY
-
Pairs:
-
2 to 50
-
Standard:
-
IEC 60708
-
Conductor:
-
solid bare copper
-
Conductor Size:
-
0.5mm or 0.4mm
-
Insulation:
-
PE
-
Sheath:
-
PVC or LDPE
-
Packing:
-
100m per roll
-
Certification:
-
CE/CB/CCC/SAA
Quick Details
-
Brand Name:
-
BDK
-
Type:
-
Outdoor
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
40 pairs multicore telephone cable
-
cable type:
-
Telephone cable, HYV HYY
-
Pairs:
-
2 to 50
-
Standard:
-
IEC 60708
-
Conductor:
-
solid bare copper
-
Conductor Size:
-
0.5mm or 0.4mm
-
Insulation:
-
PE
-
Sheath:
-
PVC or LDPE
-
Packing:
-
100m per roll
-
Certification:
-
CE/CB/CCC/SAA
Product description
| Type | 40 pairs multicore telephone cable | |
| Max.transmission frequency | Voice frequency 150KHz analog signal and 2048k bits/s digital signal | |
| Core &Pairs | 2 to 10 cores, 2 to 50 pairs | |
| Conductor size (solid bare copper ) | 0.50mm or 0.4mm solid bare copper | |
| Application | These cables are used for the connection between floor cabling systerm in the telephone communication cabling systerm and the user's telephone outlet. | |
| Standard | IEC 60708, YD/T840, YD/T322, AS/ACIF S008 | |
| Constructions | Conductor: | Solid bare copper |
| Insulation: | PE | |
| Sheath | PVC or LDPE | |
| Packing | 100 meters per roll or 200 meters per roll | |
| Remarked | The cable can be flame retardance, fire resistance and other property | |
Main Manufacturing Procedure
1, Copper wire drawing and annealing.
2, Copper wire stranding .
3, PVC insulation extruding.
4, Cores Twisting.
5, Outer sheath extruding and labeling
6, Spooling
Company Overview
Shenzhen Bendakang cables.Co.,LTD. is the NO.1 largest professional electric wires and cables manufacturer in south China certified by ISO9001, ISO14001, OHSMS28001 ,CE,CB,SAA . Also we are a leading company with many years’ export experience and we have a very good reputation internationally. We can produce thousands of electric wires and power cables as per different standards, such as IEC, BS, UL, AS/NZS, VDE, etc.
