Quick Details
-
Warranty:
-
1
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Maytop
-
Model Number:
-
P2
-
Suit PU material:
-
Poly and ISO
-
Nozzle diameter:
-
1.7mm
-
type:
-
Pressure gun
-
attribute:
-
High pressure spray gun
-
Dynamic type:
-
Pneumatic
-
Certification:
-
other
Quick Details
-
Type:
-
High Pressure Gun
-
Application:
-
Paint Spray Gun
-
Cup Volume:
-
no cup
-
Warranty:
-
1
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Maytop
-
Model Number:
-
P2
-
Suit PU material:
-
Poly and ISO
-
Nozzle diameter:
-
1.7mm
-
type:
-
Pressure gun
-
attribute:
-
High pressure spray gun
-
Dynamic type:
-
Pneumatic
-
Certification:
-
other

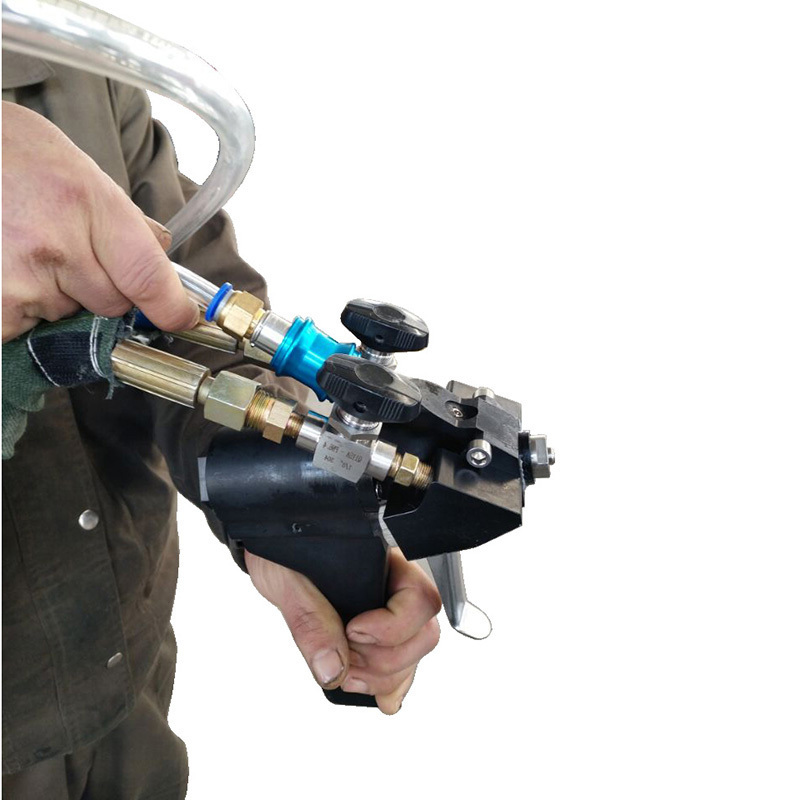

Portable polyurethane wall paint automatic spray gun for foaming machine P2 spray gun
Product Paramenters
|
Max.fluid
|
working pressure:24Mpa
|
|
Air inlet pressure:
|
0.4-0.8mpa
|
|
Cleaning method:
|
self cleaning with air
|
|
Working flow
|
2-9kg/min
|
|
Mix Chamber Size
|
1.3mm(1.5mm could select)
|
|
pray nozzle size
|
1.6mm
|
|
Spray gun parts:
|
Free
|
|
Gross weight:
|
2.0kg
|
Product Features
1. The pipe joint Angle, reduce the gun load, make operation easy.
2. Gas valve can prevent trigger is stuck.
3. Gas auxiliary spring can quickly cut into the mixing head of raw materials.
4. Jet linear continuous and smooth, no field control.
5. Pneumatic wrench can reduce the labor intensity of operators.
6. All steel hybrid head, output, precise control of spraying position, reduce the waste of raw materials, particularly applicable
to residential construction between two walls of spraying.
7. Single valve device can prevent ISO material and POLY material flow back, and not apart gun, which can check the gun insidemost of the seal.
8. Use manual switch valve, no tool can quickly and easily switch gun.
9. High pressure vacuum mixed to ensure the best
P2 gun lightweight, easy to handle , even in the difficult position of spray can and spray ease of operation , its excellent
production efficiency has been widely recognized by the industry . At the end of the work day , maintenance is simple. P2 gun with one-way valve to separate the wet area of the gun .
trigger rapid response - double piston provides a powerful driving force .
replacement of the mixing chamber can insert , without replacing the entire mixing chamber .
Anti- crossover design to virtually eliminate the possibility of material fleeing into the air piston.
ergonomic handle design for peace and comfort , compact , and lightweight.
2. Gas valve can prevent trigger is stuck.
3. Gas auxiliary spring can quickly cut into the mixing head of raw materials.
4. Jet linear continuous and smooth, no field control.
5. Pneumatic wrench can reduce the labor intensity of operators.
6. All steel hybrid head, output, precise control of spraying position, reduce the waste of raw materials, particularly applicable
to residential construction between two walls of spraying.
7. Single valve device can prevent ISO material and POLY material flow back, and not apart gun, which can check the gun insidemost of the seal.
8. Use manual switch valve, no tool can quickly and easily switch gun.
9. High pressure vacuum mixed to ensure the best
P2 gun lightweight, easy to handle , even in the difficult position of spray can and spray ease of operation , its excellent
production efficiency has been widely recognized by the industry . At the end of the work day , maintenance is simple. P2 gun with one-way valve to separate the wet area of the gun .
trigger rapid response - double piston provides a powerful driving force .
replacement of the mixing chamber can insert , without replacing the entire mixing chamber .
Anti- crossover design to virtually eliminate the possibility of material fleeing into the air piston.
ergonomic handle design for peace and comfort , compact , and lightweight.
