- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Part No:
-
S5731S-H24T4S-A
-
Part Number:
-
02353DJE
-
Description:
-
24 10/100/1000BASE-T ports, 4 GE SFP+
-
Connector type:
-
RJ45
-
Standards compliance:
-
IEEE802.3, IEEE802.3u, IEEE802.3ab
-
Working mode:
-
10/100/1000 Mbit/s auto-sensing
-
Memory (RAM):
-
4 GB
-
Flash:
-
1 GB in total
-
RPS:
-
Not supported
-
Maximum power consumption:
-
91 W
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Model Number:
-
S5731S-H24T4S-A
-
Place of Origin:
-
China
-
Part No:
-
S5731S-H24T4S-A
-
Part Number:
-
02353DJE
-
Description:
-
24 10/100/1000BASE-T ports, 4 GE SFP+
-
Connector type:
-
RJ45
-
Standards compliance:
-
IEEE802.3, IEEE802.3u, IEEE802.3ab
-
Working mode:
-
10/100/1000 Mbit/s auto-sensing
-
Memory (RAM):
-
4 GB
-
Flash:
-
1 GB in total
-
RPS:
-
Not supported
-
Maximum power consumption:
-
91 W
Product Description

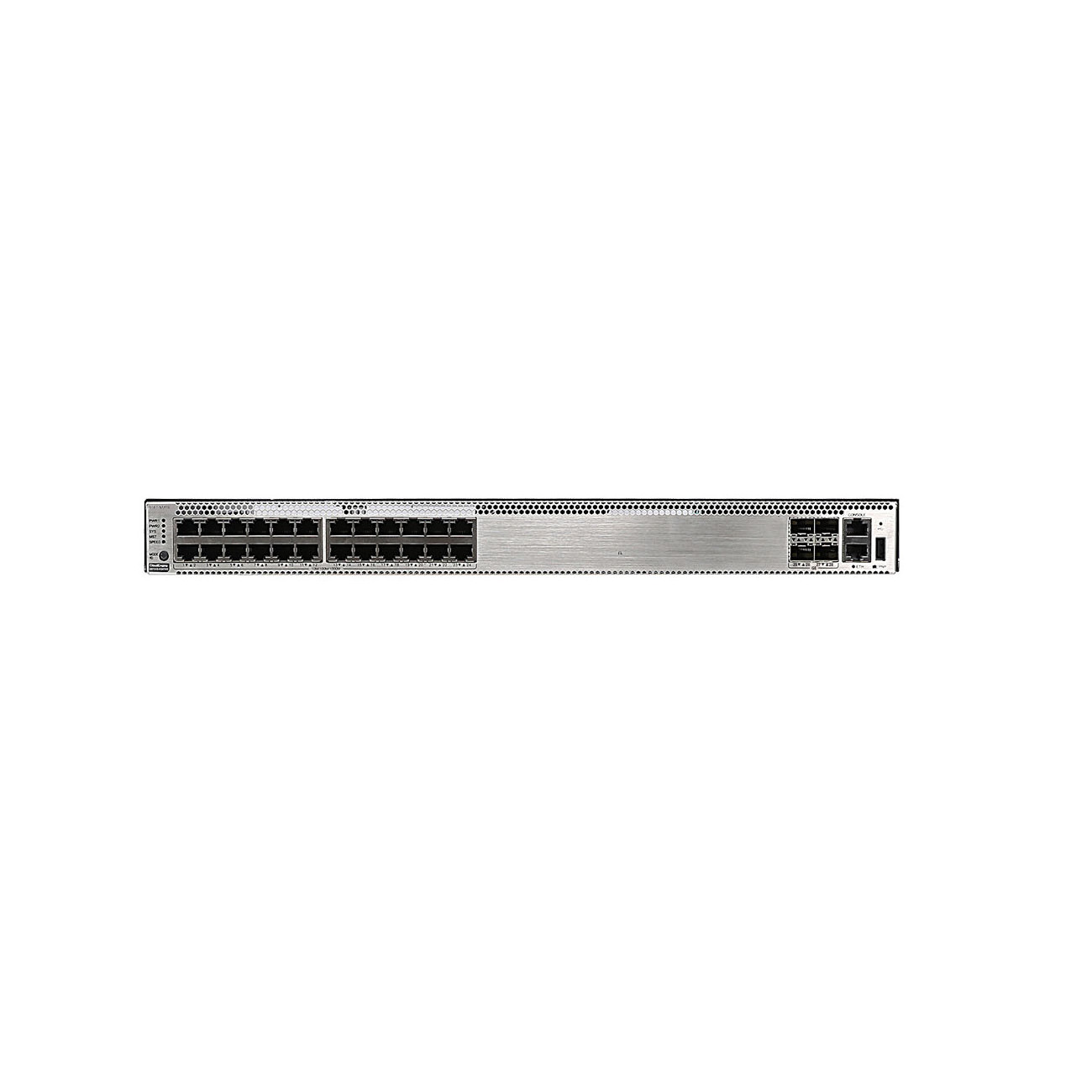

S5731S-H24T4S-A
Model: S5731S-H24T4S-A S5731 Series Switches
Detail: S5731 switch, 24 × 10/100/1000BASE-T ports, 4 × GE SFP+, 1 × 150W AC Power Supply, Distribution model
Specification
S5731S-H24T4S-A Overview
SS5731 switch, 24 × 10/100/1000BASE-T ports, 4 × GE SFP+, 1 × 150W AC Power Supply, Distribution model
Technical specifications
|
Item
|
Description
|
|
Memory (RAM)
|
4 GB
|
|
Flash
|
1 GB in total. To view the available flash memory size, run the display version command.
|
|
Mean time between failures (MTBF)
|
57.73 years
|
|
Mean time to repair (MTTR)
|
2 hours
|
|
Availability
|
> 0.99999
|
|
Service port surge protection
|
Common mode: ±6 kV
|
|
Power supply surge protection
|
Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
|
|
|
Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
|
|
Dimensions (H x W x D)
|
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
|
|
|
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x
448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
|
Weight (with packaging)
|
9.35 kg (20.61 lb)
|
|
Stack ports
|
1000BASE-X ports on the front panel
|
|
RTC
|
Supported
|
|
RPS
|
Not supported
|
|
PoE
|
Not supported
|
|
Rated voltage range
|
AC input: 100 V AC to 240 V AC, 50/60 Hz
|
|
|
High-Voltage DC input: 240 V DC
|
|
|
DC input: -48 V DC to -60 V DC
|
|
Maximum voltage range
|
AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
|
|
|
High-Voltage DC input: 190 V DC to 290 V DC
|
|
|
DC input: -38.4 V DC to -72 V DC
|
|
Maximum power consumption (100% throughput, full speed of fans)
|
91 W
|
|
Typical power consumption (30% of traffic load, tested according to ATIS standard)
|
70 W
|
|
Part number
|
|
Packaging:1 pc in gift box, original and new .
Delivery Detail: 2-3 work days after payment received. Shipping:
We have strong cooperation with DHL, FedEx, UPS and TNT. Sea shipping and air shipping are also available.
