* SWD: short way of diamond.
* LWD: long way of diamond.
* SWO: short way of opening.
* LWO: long way of opening.
* Width: strand width.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
BONI0039
-
Brand Name:
-
BONI
-
Product name:
-
Brass/Copper Expanded Mesh with Different Opening Shape
-
Temperature:
-
Normal
-
Main Type:
-
Expanded with diamond hole
-
Thickness of panel:
-
0.025-0.8MM
-
Usage:
-
Metallurgy, Chemical industry etc.
-
Surface:
-
Smooth Surface
-
Certificate:
-
ISO9001
-
MOQ:
-
1SQM
-
Opening:
-
Diamond
Quick Details
-
Material:
-
carbon steel, stainless steel, or aluminum
-
Type:
-
Expanded Mesh
-
Application:
-
Filters,Anode
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
BONI0039
-
Brand Name:
-
BONI
-
Product name:
-
Brass/Copper Expanded Mesh with Different Opening Shape
-
Temperature:
-
Normal
-
Main Type:
-
Expanded with diamond hole
-
Thickness of panel:
-
0.025-0.8MM
-
Usage:
-
Metallurgy, Chemical industry etc.
-
Surface:
-
Smooth Surface
-
Certificate:
-
ISO9001
-
MOQ:
-
1SQM
-
Opening:
-
Diamond
Products Description

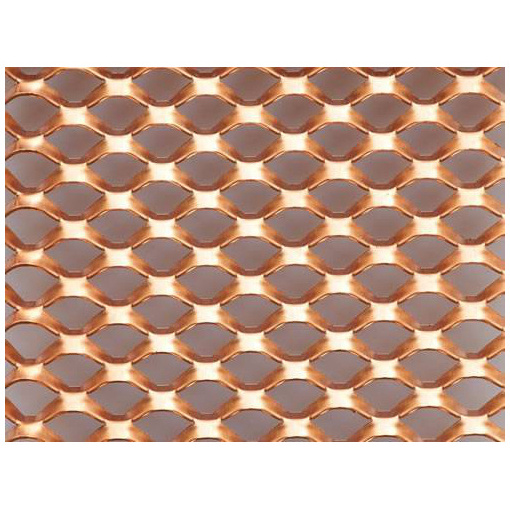

Brass/Copper Expanded Mesh with Different Opening Shape
Brass/copper expanded metal mesh
is a slit and stretched metal sheet to form a wide array of opening shapes. The opening shapes could be diamond, hexagon, square, scale hole and so on.
Material
can be brass or copper, also can be aluminum, stainless steel,carbon steel with copper or brass coating. A square foot of raw material can produce two or three times or more area without scrap.
Specification
* Material:
brass, copper, aluminum, stainless steel, carbon steel.
* Surface treatment: plated copper or brass when using other metals.
* Mesh type: light, medium, heavy.
* Opening shape: diamond, hexagon, square, scale hole.
* Width of expanded metal mesh : 0.5-2 m.
* Length of expanded metal mesh: 0.6-4 m.
* Surface treatment: plated copper or brass when using other metals.
* Mesh type: light, medium, heavy.
* Opening shape: diamond, hexagon, square, scale hole.
* Width of expanded metal mesh : 0.5-2 m.
* Length of expanded metal mesh: 0.6-4 m.
* Specification can be customized.
*
Expanded Metal Mesh
Classification: standard, flattened.
• Regular/Standard Expanded Metal
is a finished product as it comes from the press. The strands and bonds are set in a uniform manner creating different size openings and thicknesses. This regular or raised configuration gives added strength and rigidity as well as slip resistance to the mesh.
• Flattened Expanded Metal
is regular expanded metal which has been cold rolled leaving a flat,smooth surface.
Standard vs. Flattened Expanded Metal
Regular or Standard expanded metal
is raised at the bonds of the diamond.
Flattened expanded metals has been passed through rollers and is smooth across each bond.
Flattened expanded metals has been passed through rollers and is smooth across each bond.
Expanded Metal Mesh
Pattern Orientation:
Standard Flow:
Pattern runs with the LWD running the length of the sheet and the SWD running across the width of the sheet.
Reverse Flow: Pattern runs with the LWD running across the width of the sheet and the SWD running the length of the sheet.
Reverse Flow: Pattern runs with the LWD running across the width of the sheet and the SWD running the length of the sheet.
Expanded Metal Mesh
Shearing:
Bond Shear: The expanded metal sheet is cut through the center of the bonds resulting in closed diamond at the edge of the sheet.
Random Shear: The expanded metal sheet is cut through diamonds resulting in partial diamonds at the sheet’s edge. The partial
diamonds result in exposed strands that are very sharp and should be protected with U-Edging or framing.
Random Shear: The expanded metal sheet is cut through diamonds resulting in partial diamonds at the sheet’s edge. The partial
diamonds result in exposed strands that are very sharp and should be protected with U-Edging or framing.
Application
Copper Expanded Metal Mesh Application:
1: Ventilation mesh, decorative mesh.
2: Protection mesh for machine, electric equipment, aquatic products breeding.
3: Screen for window, door, wall, ceiling, facade, roof, retail shelf, signage, partition.
4:Fence for highway, studio, garden, green belt, bridge, stadium.
5: Chimney caps and handcrafts.
6: Used in construction, concrete reinforcement, filtration.
7: Heavy expanded mesh can be used as stair for corridor, oil tank, working platform, escalator, walking road for big ship, heavy model equipment, petroleum well, mine well, boiler, automobile vehicle, footbridge.
2: Protection mesh for machine, electric equipment, aquatic products breeding.
3: Screen for window, door, wall, ceiling, facade, roof, retail shelf, signage, partition.
4:Fence for highway, studio, garden, green belt, bridge, stadium.
5: Chimney caps and handcrafts.
6: Used in construction, concrete reinforcement, filtration.
7: Heavy expanded mesh can be used as stair for corridor, oil tank, working platform, escalator, walking road for big ship, heavy model equipment, petroleum well, mine well, boiler, automobile vehicle, footbridge.
Details Images
Brass/Copper Expanded Mesh with Different Opening Shape
Features of Micro Expanded Metal:
* Durable
* Attractive
* One-piece construction
* Easy handling
* Excellent strength-to-weight ratio
* Easy to cut to size
* Available in many styles
* Available in many materials, such as nickel, aluminum, carbon steel, galvanized, and stainless steel
* Durable
* Attractive
* One-piece construction
* Easy handling
* Excellent strength-to-weight ratio
* Easy to cut to size
* Available in many styles
* Available in many materials, such as nickel, aluminum, carbon steel, galvanized, and stainless steel
Product packaging
Expanded Metal Mesh
Packaging
Packed in rolls with water proof paper, outside is wooden case or wooden pallet.
Heavy expanded metal mesh is packed in panels with wires binding them.
Packed in rolls with water proof paper, outside is wooden case or wooden pallet.
Heavy expanded metal mesh is packed in panels with wires binding them.
