Quick Details
-
Brand Name:
-
HYDER
-
Fork Length:
-
1070mm
-
Fork Width:
-
150mm
-
Overall Dimensions:
-
2890*1370*2320
-
Type:
-
Powered Pallet Truck
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Name:
-
narrow aisle stackers
-
Loading Capacity:
-
1500kg
-
Lifting Height:
-
3000mm-7500mm
-
Certification:
-
CE/ISO9001
Quick Details
-
Min. Lifting Height:
-
85mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
HYDER
-
Fork Length:
-
1070mm
-
Fork Width:
-
150mm
-
Overall Dimensions:
-
2890*1370*2320
-
Type:
-
Powered Pallet Truck
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Name:
-
narrow aisle stackers
-
Loading Capacity:
-
1500kg
-
Lifting Height:
-
3000mm-7500mm
-
Certification:
-
CE/ISO9001

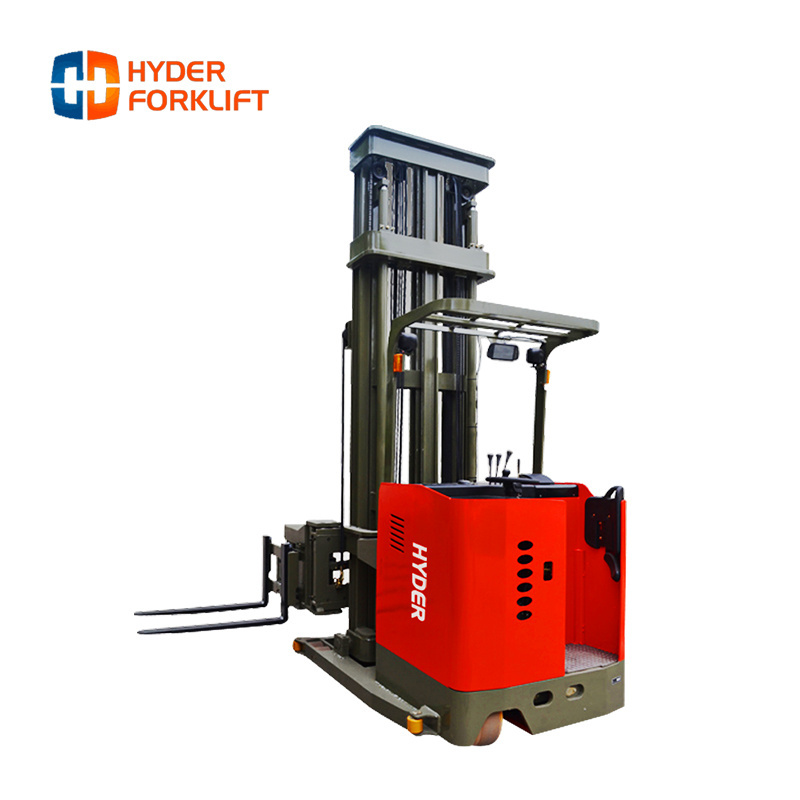

Wholesale high quality 3 way narrow aisle forklift side-loader forklift truck
Data Sheet
| 3 Ways Very Narrow Aisel Truck Forklift Specification | ||||
| Manufacturer | — | HYDER | HYDER | |
| Operation type | — | Standing posture | Standing posture | |
| Model | — | HTC10-60 | HTC15-60 | |
| Power type | — | Full-Electric | Full-Electric | |
| Capacity | kg | 1000 | 1500 | |
| Max lifting height | mm | 6000 | 6000 | |
| Load center | mm | 500 | 500 | |
| Wheel type | — | Pu solid tire | Pu solid tire | |
| Fork dimensions | mm | 1070*100*35 | 1070*125*50 | |
| Fork spread | — | 260-820 | 265-760 | |
| Overall length including fork | mm | 2890 | 3010 | |
| Overall width | mm | 1370 | 1550 | |
| Height-mast Lowered | mm | 3250 | 3125 | |
| Turning radius | mm | 1880 | 2000 | |
| The height of overhead guards | mm | 2325 | 2280 | |
| Min ground clearance | mm | 40 | 40 | |
| Max travel speed | km/h | 7.0/8.0 | 6.8/7.8 | |
| Lifting speed | mm/s | 180/315 | 120/270 | |
| Total weight | kg | 5250 | >5600 | |
| Driving wheel | mm | Φ380×165 | Ø382*142 | |
| front wheel | mm | Φ140×100 | Ø145*100 | |
| Balance wheel | mm | Φ204×76 | Ø180*76 | |
| Battery capacity | V/Ah | 48V /400 AH | 48/400 | |
| Charger-intelligent | V/A | 48V /50 A | 48/50 | |
| Driving motor | kw | 5.5 (AC) | 5.0(AC) | |
| Lifting motor | kw | 7.5 | 7.5(DC) | |
| Transmission controller type | — | Electric | Electric | |
| Walking adjustable type | — | Holzer type accelerator | Holzer type accelerator | |
| Braking type | — | Electromagnetic | Electromagnetic | |
1)How do you guarantee the quality of your forklift and equipment?
Our forklifts and equipment with advanced technology design and we assemble it with high quality and famous brand parts. Strictly inspection before delivery
2)How to solve and maintain once some problems happened?
Our engineer and sales team offer 24hrs full time service. We can give the best suitable solution to solve your problems as soon as possible. At the same time you also can ask your operators to come to our site for learning or we arrange our engineer to your site for training.
3)What will benefit us if we become your exclusive distributor in promissory area?
We can invest professional exhibition supporting and give potential clients information from B2B website to you for developing. We make sure to provide you with the newest information and development tendency in the fields. A abundant bonus will be offered if you can finish target sales volume.
4)Which kind of certificate do you have?
All our forklifts with CE certificate. We passed ISO and LPG forklift engine passed EPA approved.
5)How long is the warranty of your forklift?
One year or 2000hrs which come first
