Quick Details
-
Brand Name:
-
XCMG
-
Model Number:
-
SD7N
-
Dimension(Long * Breadth * High):
-
7616*3500*3402mm
-
Ground pressure:
-
71.9kpa
-
Track gauge:
-
1980mm
-
Min. ground clearance:
-
404mm
-
Blade width:
-
3500mm
Quick Details
-
Machine Weight:
-
23800 KG
-
Dozing Capacity:
-
8.4m³
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XCMG
-
Model Number:
-
SD7N
-
Dimension(Long * Breadth * High):
-
7616*3500*3402mm
-
Ground pressure:
-
71.9kpa
-
Track gauge:
-
1980mm
-
Min. ground clearance:
-
404mm
-
Blade width:
-
3500mm
Products Description

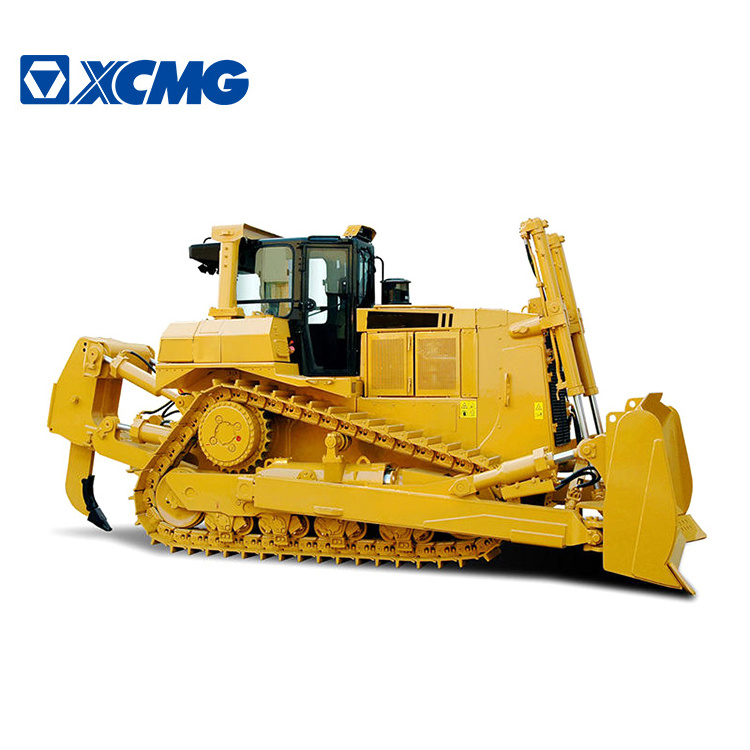

XCMG brand 8.4m3 crawler bulldozers SD7N 230hp mini bull dozers
.
SD7N bulldozer is 230 horsepower track-type dozer with elevated sprocket, power shift drive, semi-rigid suspended and hydraulic controls.
SD7N-230 horsepower, elevated sprocket bulldozer integrate with modular design is easy to repair& maintenance, It relieves oil with difference pressure, the hydraulic system performs protecting environment and save energy with high working efficiency. Safety and comfortable operation condition, electric monitoring and ROPS cabin with reliable entire quality, excellent service is your wise choosing.
Specification
|
Item
|
SD7N
|
|
Dozer
|
Tilt
|
|
Operation weight (kg)
|
23800
|
|
Ground pressure (kpa)
|
71.9
|
|
Track gauge (mm)
|
1980
|
|
Min. ground clearance (mm)
|
404
|
|
Gradient
|
30。/25。
|
|
Dozing capacity (m3)
|
8.4
|
|
Blade width (mm)
|
3500
|
|
Max. digging depth (mm)
|
498
|
|
Overall dimensions (mm)
|
7616*3500*3402
|
|
Engine brand
|
Cummins/ weichai
|
|
Rated revolution (rpm)
|
2100
|
|
Rated power (KW)
|
185
|
|
Max. torque (N.m/rpm)
|
1097/1500
|
|
Rated fuel consumption (g/KW.h)
|
235
|
|
Pitch (mm)
|
216
|
|
Width of shoe (mm)
|
560
|
