Quick Details
-
Panel Size:
-
640mm x640mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
QC-P5
-
Best Viewing Distance:
-
>3m
-
Quality Warranty:
-
2 years
-
Certificate:
-
CE ROHS FCC ISO9001
-
Operation Temperature:
-
-20℃~+65℃
-
Module Size:
-
320*160mm
-
Brightness:
-
≥1500cd/sqm
-
Pixel density:
-
40000pixels/sqm
-
Best View Angle:
-
Horizontal:140°, Vertical:120°
-
Weight:
-
35kg/square meter
-
Average Power Consumption:
-
300w/square meter
Quick Details
-
Application:
-
Indoor
-
Brand Name:
-
Qichuang
-
Color:
-
Full Color
-
Panel Size:
-
640mm x640mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
QC-P5
-
Best Viewing Distance:
-
>3m
-
Quality Warranty:
-
2 years
-
Certificate:
-
CE ROHS FCC ISO9001
-
Operation Temperature:
-
-20℃~+65℃
-
Module Size:
-
320*160mm
-
Brightness:
-
≥1500cd/sqm
-
Pixel density:
-
40000pixels/sqm
-
Best View Angle:
-
Horizontal:140°, Vertical:120°
-
Weight:
-
35kg/square meter
-
Average Power Consumption:
-
300w/square meter
P5 LED display LED screen LED video wall church rental big tv screen indoor
Technical Parameters:
|
Pitch Size |
5mm |
|
Module Size |
320*160mm |
|
Module Pixel(dots) |
64dots*32dots |
|
Pixel Configuration |
1 Red, 1 Green, 1 Blue SMD 3-in-1 |
|
LED chip |
Silan |
|
Color scale |
65536degree/16777216colors |
|
Pixel density |
40000pixels/square meter |
|
View angle(H/V) |
≥1 4 0/1 2 0degree |
|
Brightness |
≥ 15 00cd/square meter |
|
Brightness adjustment |
64 level automatic or manual |
|
View distance |
3--100m |
|
Power consumption |
100-1600W/square meter |
|
Net weight |
3 5kg/square meter |
|
Operating temperature |
—25°C~+60°C |
|
Operating humidity |
10%—95%RH |
|
Life time |
≥100,000hours |
|
Out of control dot |
≤1/10,000 |
|
Whole Display Flatness |
≤1mm Juncture |
|
Exchange frame speed |
>150frames per second |
|
Refresh frame frequency |
1920Hz |
|
Control distance |
120m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
|
Power |
110V/220V±15% 50Hz |
|
Operating system |
Windows98/Me/2000/Xp |
|
Drive mode |
constant current driving, 1/8 scan |
|
Display mode |
VGA640X480—VGA1600X1024 |
|
Protections for in door display |
IP 31 |
|
Maintenance way |
Rear access |
|
Accepting signal |
PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
|
Drive mode |
1/16 scan, constant current |

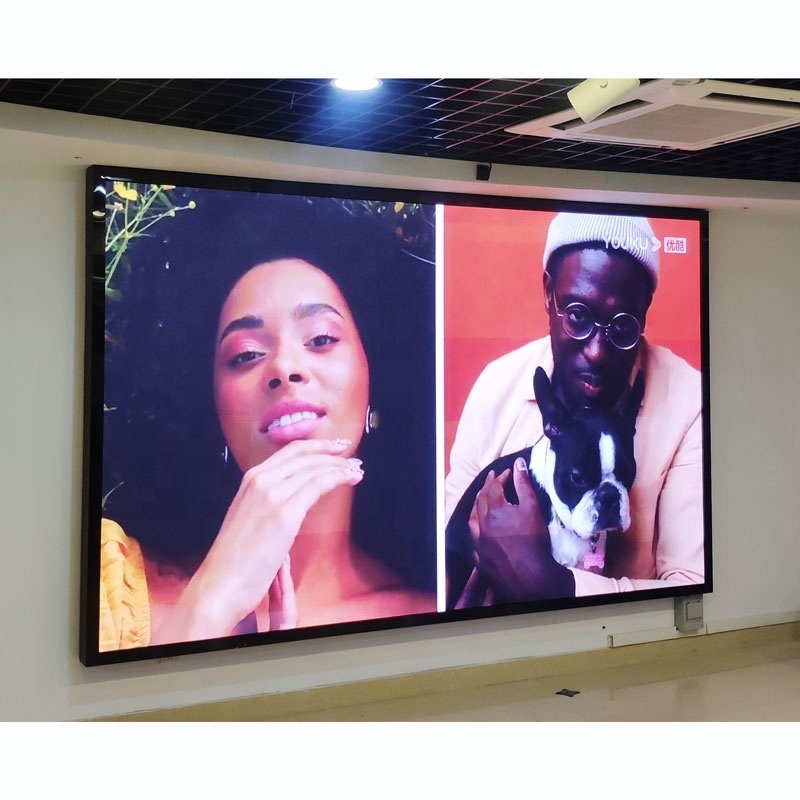

Reference photos:
