Quick Details
-
Model Number:
-
CZE-T251
-
Place of Origin:
-
Guangdong, China
-
Material:
-
Aluminium Alloy
-
Color:
-
Silver
-
Output Power:
-
25W
-
Frequency Response:
-
50Hz~15KHz
-
Frequency Range:
-
87-108MHz
-
Weight:
-
2kg
-
Connector:
-
NJ
-
Power supply:
-
12V 8A
-
Product Name:
-
FM Transmitter
-
Application:
-
FM Broadcast
Quick Details
-
Type:
-
Mini Amplifier
-
Channels:
-
2 (2.0)
-
Brand Name:
-
CZERF
-
Model Number:
-
CZE-T251
-
Place of Origin:
-
Guangdong, China
-
Material:
-
Aluminium Alloy
-
Color:
-
Silver
-
Output Power:
-
25W
-
Frequency Response:
-
50Hz~15KHz
-
Frequency Range:
-
87-108MHz
-
Weight:
-
2kg
-
Connector:
-
NJ
-
Power supply:
-
12V 8A
-
Product Name:
-
FM Transmitter
-
Application:
-
FM Broadcast

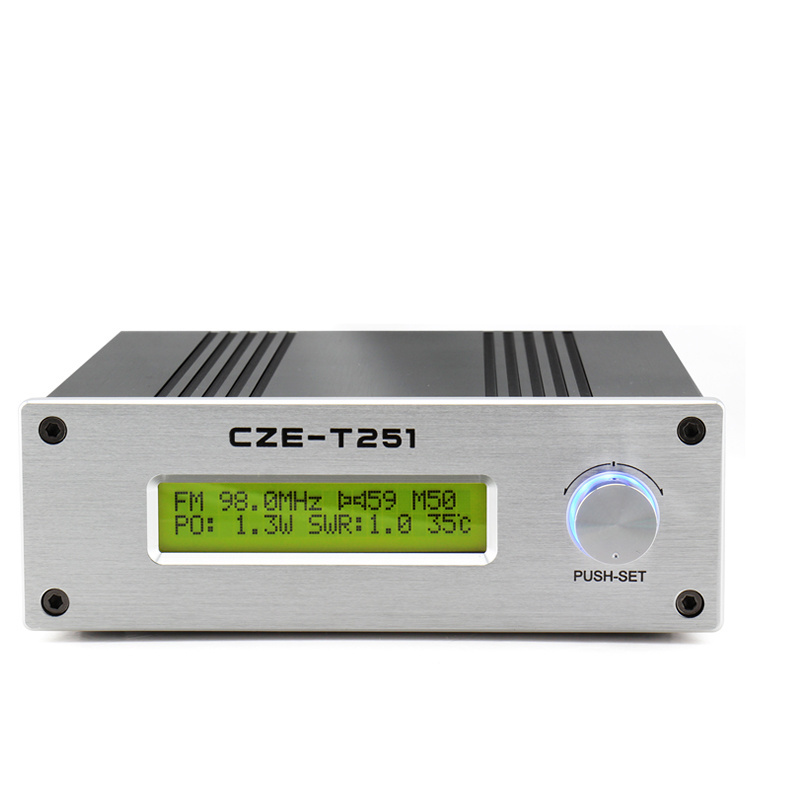

25W Stereo Audio Long Range FM Transmitter for Drive in Cinema FM Broadcast
|
|
1*CZE-T251 0-25w ONLY FM Transmitter
NOTE:
* Connect antenna first ,then connect the power supply.
|
|
|
1.Working Voltage:12V 2.Working Current:8A 3.Frequency Range:87~108MHz 4.Frequency Stability 10PPM 5.Frequency Stepping:100KHz 6.Environment temperature:-10 ~45 7.Output Impedance:50 8.RF output power:0W~25W 9.Harmonic, clutter radiation - 60dB 10.Audio distortion:0.2% 11.Frequency Response :50Hz~15000Hz 12.Separation 35 dB 13.Input level 15 dB V 14.Frequency Modulation 75KHZ 15.SNR 70dB 16.Size:210mm( L ) *174mm ( W ) *59mm ( H )( Exclude projected parts ) 17.Net Weight:About 1.5kg
Product Feature: CZE-T251 25w FM transmitter . 1.It is easier in operation, one button control for all functions. 2.It has VSWR protection, temperature protection, electronic volume adjusting,equipped with low pass filters. 3.It's applicable in many places, such as stadium, county radio station, community radio station, motel, public square,church, theater and so on. |
|
|
|
|
|
Q1:What is FM transmitter?
An FM transmitter is a device that can convert audio contents from any audio source such as MP3,Cellphone,Computer etc. to signals that transmits out in FM band, the signals can be picked up by any radio receivers that uses the same frequency at the other end.
Q2:How does FM transmitter work?
Firstly connect the audio source to FM transmitter, the audio signals will be converted to FM signals and broadcast out through the antenna via tuned frequency, people at the other end use a radio receiver to hear the audio by tuning to the same frequency.
Q3:How to choose antenna for transmitter?
Usually we need to check the maximum RF power that the antenna can afford, then use the antenna with transmitter that broadcasts at or below the antenna MAX.RF Power.
Q4:How many frequencies can I use in one transmitter?
Most of our transmitter are in normal FM frequency band(87~108mhz), you can change to any frequency within this band. Use one frequency at one time.
|
