Quick Details
-
Marketing Type:
-
New Product 2024
-
Weight (KG):
-
350 KG
-
Power (kW):
-
0.75
-
Processing diameter::
-
15-50mm square profile
-
Certification:
-
ISO
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
STR
-
Machine Type:
-
Wood Round Rod Stick Machine
-
Marketing Type:
-
New Product 2024
-
Weight (KG):
-
350 KG
-
Power (kW):
-
0.75
-
Processing diameter::
-
15-50mm square profile
-
Certification:
-
ISO
|

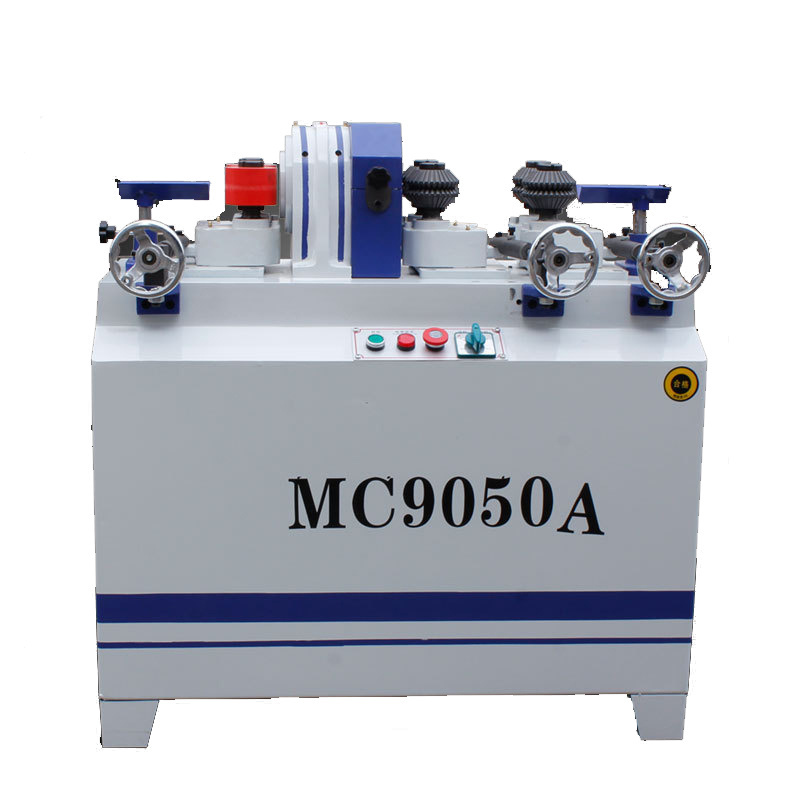

Model
|
MC9050
|
MC9050A
|
MC9050B
|
MC9060
|
MC9060A
|
MC9060B
|
MC9020A
|
MC9080B
|
|
Main motor power:
|
3KW
|
3KW
|
2.2KW
|
3KW
|
3KW
|
3KW
|
2.2KW
|
4KW
|
|
Feed motor power:
|
0.75KW
|
0.75KW
|
0.75KW
|
0.75KW
|
0.75KW
|
0.75KW
|
0.55KW
|
0.75KW
|
|
Main shaft speed:
|
4000r/min
|
4000r/min
|
4000r/min
|
4000r/min
|
4000r/min
|
4000r/min
|
5000r/min
|
4000r/min
|
|
Feeding speed:
|
3/5m/min Double pit wheel speed change
|
3/5m/min Double pit wheel speed change
|
3/5m/min Double pit wheel speed change
|
3/5m/min Double pit wheel speed change
|
3/5m/min Double pit wheel speed change
|
3/5m/min Double pit wheel speed change
|
3/5m/min Double pit wheel speed change
|
3/5m/min Double pit wheel speed change
|
|
Processing diameter:
|
15-50mm square profile
|
15-50mm square profile
|
15-50mm square profile
|
15-60mm square profile
|
15-60mm square profile
|
15-60mm square profile
|
6-20mm square profile
|
20-80mm square profile
|
|
Maximum cutting allowance:
|
2mm (radius)
|
2mm (radius)
|
2mm (radius)
|
2mm (radius)
|
2mm (radius)
|
2mm (radius)
|
1mm (radius)
|
2mm (radius)
|
|
Minimum processing length:
|
400mm
|
350MM
|
600MM
|
400mm
|
500MM
|
600MM
|
500MM
|
600MM
|
|
Dimension:
|
860*650 * 980mm
|
970*650*980MM
|
1100*650 * 980mm
|
860*650 * 980mm
|
970*650*980MM
|
1100*650 * 980mm
|
480*560 * 820mm
|
1200*610*1100
|
|
Weight:
|
250kg
|
210KG
|
350KG
|
250kg
|
310KG
|
350KG
|
200KG
|
420KG
|
|
Turbine speed reducer:
|
|
50:1 60 type
|
50:1 60 type
|
|
50:1 60 type
|
50:1 60 type
|
50:1 60 type
|
50:1 60 type
|
Single input and output rod machine Feeding wheel and discharging wheel are each set, which is suitable for processing short
materials with smaller diameter. The machine is equipped with 2 core sets (the size is up to you, if there is no requirement, it
is randomly equipped). Double input and single output rod machine MC9020A/MC9050A/MC9060A Material of discharge wheel: rubber
covering smooth, does not hurt the surface of the processed round rod. When processing round rods with different diameters, the
feed wheel needs to make the following adjustments: Such installation when the processing diameter is less than 25mm When the
processing diameter is greater than 25mm, replace Feeding wheel for installation The machine comes standard with two round bar
knives (one is installed on the cutter and the other is placed in the tool bag); Two core sets (one is installed on the cutter and
the other is placed in the tool bag). The size of the core sleeve determines the size of the round rod and is configured as
required. If the processing diameter is greater than 80mm, other large rod machine can be produced non-standard.
materials with smaller diameter. The machine is equipped with 2 core sets (the size is up to you, if there is no requirement, it
is randomly equipped). Double input and single output rod machine MC9020A/MC9050A/MC9060A Material of discharge wheel: rubber
covering smooth, does not hurt the surface of the processed round rod. When processing round rods with different diameters, the
feed wheel needs to make the following adjustments: Such installation when the processing diameter is less than 25mm When the
processing diameter is greater than 25mm, replace Feeding wheel for installation The machine comes standard with two round bar
knives (one is installed on the cutter and the other is placed in the tool bag); Two core sets (one is installed on the cutter and
the other is placed in the tool bag). The size of the core sleeve determines the size of the round rod and is configured as
required. If the processing diameter is greater than 80mm, other large rod machine can be produced non-standard.
