Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Senad
-
Voltage:
-
220V/380V make to order
-
Dimension(L*W*H):
-
6000*800*950mm
-
Weight (KG):
-
1000 kg
-
Product name:
-
Telescopic Belt Conveyor
-
Certification:
-
Trade Insurance
-
Feature:
-
High Efficiency
-
Packing:
-
Wooden Case
-
Advantage:
-
Hydraulic lifting speed adjustable
-
Design:
-
CAD Drawing
-
Belt material:
-
PVC PU Rubber Steel Rubber
-
After-sales Service:
-
Video Techinical Support
-
Belt width:
-
Customer's Reuqirement
Quick Details
-
Power:
-
1.5~4kw
-
Warranty:
-
1 Year
-
Width or Diameter:
-
800mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Senad
-
Voltage:
-
220V/380V make to order
-
Dimension(L*W*H):
-
6000*800*950mm
-
Weight (KG):
-
1000 kg
-
Product name:
-
Telescopic Belt Conveyor
-
Certification:
-
Trade Insurance
-
Feature:
-
High Efficiency
-
Packing:
-
Wooden Case
-
Advantage:
-
Hydraulic lifting speed adjustable
-
Design:
-
CAD Drawing
-
Belt material:
-
PVC PU Rubber Steel Rubber
-
After-sales Service:
-
Video Techinical Support
-
Belt width:
-
Customer's Reuqirement

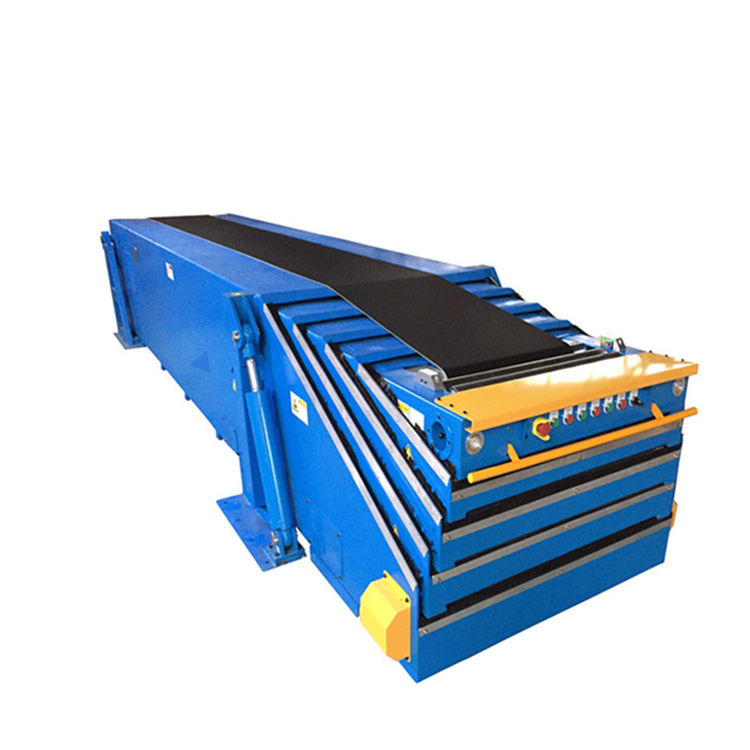

The telescopic belt machine is to increase the telescopic mechanism on the ordinary belt conveyor, which can adjust the telescopic length freely according to the site size and the actual demand. It is a special conveying equipment designed for the problems existing in the loading and unloading of goods. Under the condition of meeting the human body engineering, it can effectively reduce the damage of goods and the labor intensity of personnel, and improve the efficiency of loading and unloading vehicles. It is mainly used in vehicle loading and unloading and material transfer system with telescopic requirements.
Product Paramenters
|
Model
|
TBC2S-6/4
|
TBC3S-6/8
|
TBC4S-6/12
|
TBC5S-6/14
|
|||
|
Retracted Length(A)
|
6,000mm
|
6,000mm
|
6,000mm
|
6,000mm
|
|||
|
Extended Length(B)
|
4,000mm
|
8,000mm
|
12,000mm
|
14,000mm
|
|||
|
Total length(C)
|
10,000mm
|
14,000mm
|
18,000mm
|
20,000mm
|
|||
|
Height
|
750mm
|
800mm
|
1,000mm
|
1,200mm
|
|||
|
Conveyor Width
|
1,380mm
|
1,400mm
|
1,470mm
|
1,530mm
|
|||
|
Belt Width
|
600mm or 800mm
|
600mm or 800mm
|
600mm or 800mm
|
600mm or 800mm
|
|||
|
Belt Direction
|
Reversible
|
Reversible
|
Reversible
|
Reversible
|
|||
|
Belt Speed
|
0~36M/minute(adjustable)
|
|
|
|
|||
|
Capacity
|
60kg/meter
|
|
|
|
|||
|
Tilting
|
0~+5o, adjustable by hydraulic
|
|
|
|
|||
|
Driven Motor
|
1.5KW
|
2.2KW
|
3.0KW
|
4.0KW
|
|||
|
Weight
|
2T
|
3T
|
4T
|
5T
|
|||
Product Details
