Quick Details
-
After-sales Service Provided:
-
Online support, Field installation, commissioning and training, Video technical support, Overseas Call Centers, Return and Replacement, Shop warranty, Free spare parts, Field maintenance and repair service, Genius, Onsite Installation
-
Tank Volume:
-
7500L
-
车身尺寸:
-
10350*2500*3650
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
FAW
-
Product name:
-
Sewage Vacuum Tank Trucks
-
Pump:
-
Special Vacuum Pump
-
Chassis brand:
-
DongFeng.FAW.Foton.Sino.JAC.IVECO.Shacman
-
Drive type:
-
6*4
-
Tank capacity:
-
7500L
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 6
-
Gross Vehicle Weight:
-
20-25T
-
After-sales Service Provided:
-
Online support, Field installation, commissioning and training, Video technical support, Overseas Call Centers, Return and Replacement, Shop warranty, Free spare parts, Field maintenance and repair service, Genius, Onsite Installation
-
Tank Volume:
-
7500L
-
车身尺寸:
-
10350*2500*3650
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
FAW
-
Product name:
-
Sewage Vacuum Tank Trucks
-
Pump:
-
Special Vacuum Pump
-
Chassis brand:
-
DongFeng.FAW.Foton.Sino.JAC.IVECO.Shacman
-
Drive type:
-
6*4
-
Tank capacity:
-
7500L
Product overview:

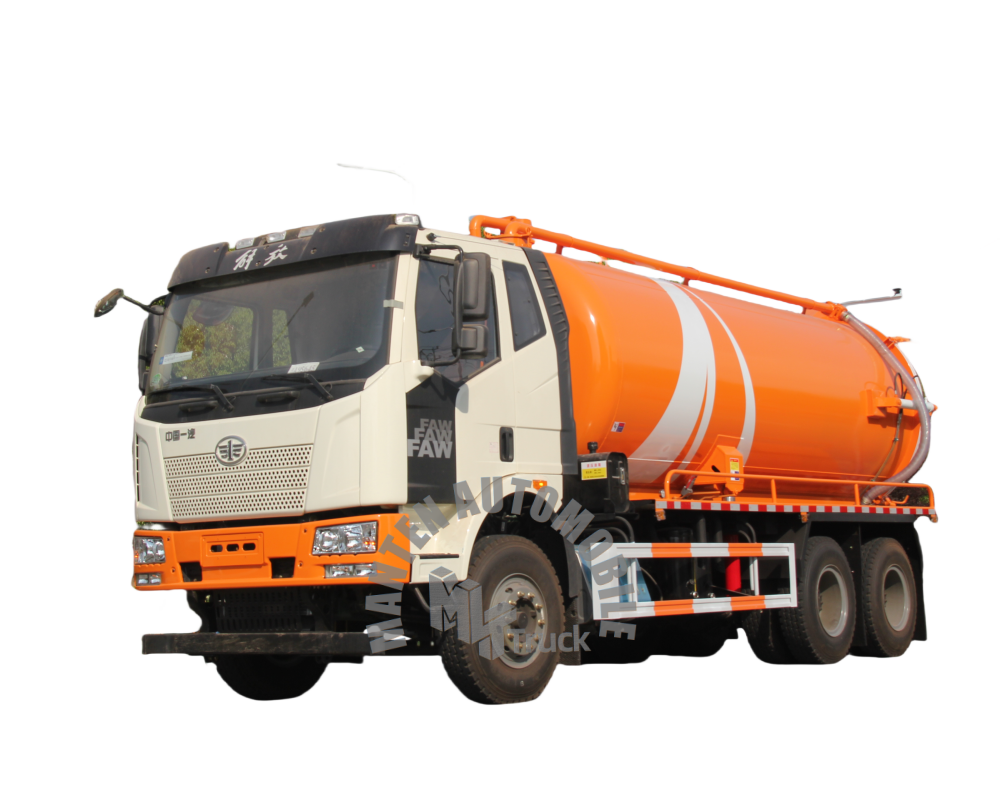

I. SEWAGE SUCTION TRUCK DISPLAY
II. SEWAGE SUCTION TRUCK PARAMETERS
| Specification of faw 6*4 sewage suction Truck | ||
| description | faw 6*4 sewage suction truck | |
| drive model | 6X4;Right hand drive;new condition | |
| fuel type | diesel oil | |
| vehicle main dimensions | dimensions(L*W*H)mm | 10350*2500*3650 |
| wheel base (mm) | 4725+1350 | |
| front track(mm) | 1964 | |
| rear track(mm) | 1860 | |
| front overhang(mm) | 1375 | |
| rear overhang(mm) | 2700 | |
| engine | model | CA6DLD-29E6 |
| Type |
six valves, high pressure common rail, supercharged intercooling, DOC+DPF+HISCR |
|
| maximum output power | 215KW | |
| horse power | 292HP | |
| maximum torque | 1100N.m | |
| vehicle displacement | 6600ml | |
| emission standard | euro II III IV V | |
| steering gear | Manual, 6 forward and 1 reverse | |
| tire | 10.11.00R20 18PR | |
| fuel tank | 200L | |
| Max driving speed(km/h) | 89 | |
| gross weight | 25000kg | |
| vehicle weight | 17500kg | |
| load capacity | 7305kg | |
| cab | 2,3seats | |
| row half | ||
| flat roof | ||
| siontuck howo brand.with A/C in cabin | ||
| specification of compactor garbage uploading | ||
| function | loading and unloading | |
| capacity | 8000liters | |
| design | whole unit with leakage proof design | |
| material | 4mm carbon steel for garbage bin body | |
| dimensions(container size mm) | 4000*2000*2000 | |
| Ways of Loading | Rear Loading with optional Bucket Lifting System | |
| vaccum pump | chinese vacuum pump or italy vacuum pump | |
| sewage suction pipe | 8M | |
| main performance | less than 5min suction time and over 8m effective suction range | |
| Control System | One control Panel on the back, One Control system in back of Cabin | |
| Garbage System | Oil-gas separator, water-gas separator, four-way valve, anti-flow valve, washing device, pressure gauge, ball valve | |
| Remarks |
1. Color is optional 2. Customized LOGO painting as per customer request |
|
III.SEWAGE SUCTION TRUCK DETAILED VIEW:
IV.SHIPPING & DELIVERY
V.Company
profile
:
VI
.FAQ
1.Q:How about the warranty of the sewage suction truck ?
A:We can offer 12 month or 30,000 kilometers warranty for the sewage suction truck,
2.Q:Do you have the certificate for sewage suction truck?
A:Yes , we have, please contact us to get our certifications for sewage suction truck .
3.Q:How about the delivery time of the sewage suction truck?
A: It depends on the style and quantity of sewage suction truck ,normally around 20-30 working days
4. Q:How about the shipping of the sewage suction truck?
A:Big size sewage suction truck always shipping by RORO or Bulk ship or flat bed container or open top container,small water tank truck can shipping by container, according to customers' request.
5. Q: How do you control the quality of the sewage suction truck?
A:Our workers are well trained and have a lot of experience. there are very strict inspection process for every parts of the sewage suction truck .
6. Q: How about your After-sales service for the sewage suction truck?
A: We always be glad to serve for you, you can email or call us for tec hno logy problems, we will try best to help, and if you need, we can send technician to your country to help.
7.Q: Do you accept customization of the sewage suction truck? What is the MOQ?
A:Yes, sewage suction truck customization is welcome, you can choose the color,brand,type and model as you want,can print your own logo in the truck, our MOQ is 1 set. For any request, please feel free to contact us.
8.Q: How about the payment terms of the sewage suction truck?
A:We accept T/T or L/C at sight ,Western Union, Money Gram and Bank transfer.
Standard Steering: Right-hand drive, if you need Left-hand drives, please inform us, will make special order for you.
