Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Abbeycon
-
Model Number:
-
IB22J-ES11Z/S
-
Mounting hole diameter:
-
22mm
-
Head Shape:
-
Mushroom Head
-
Switch combination:
-
1NO1NC
-
Operation type:
-
Latching
-
Terminal type:
-
3 Pin terminals
-
Material:
-
Stainless Steel
-
Illuminated type:
-
Without
-
Led color:
-
Without
-
Led voltage:
-
/
-
Connector Customized:
-
/
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
5A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Abbeycon
-
Model Number:
-
IB22J-ES11Z/S
-
Mounting hole diameter:
-
22mm
-
Head Shape:
-
Mushroom Head
-
Switch combination:
-
1NO1NC
-
Operation type:
-
Latching
-
Terminal type:
-
3 Pin terminals
-
Material:
-
Stainless Steel
-
Illuminated type:
-
Without
-
Led color:
-
Without
-
Led voltage:
-
/
-
Connector Customized:
-
/

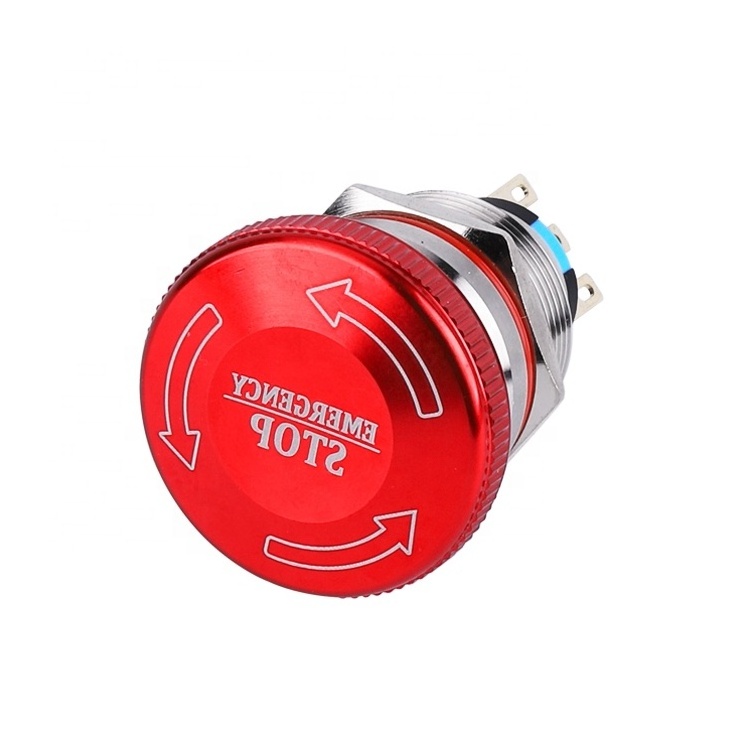

22mm electrical doorbell emergency stop switch push button
Product Description
| Product Name | Push Button Switch |
| Model | IB22J-ES11Z/S |
| Mounting Hole | 22mm |
| Operation Type | Latching |
| Switch Combination | 1NO1NC |
| Head Type | Mushroom Head |
| Terminal type | 3 Pin Terminals |
| Illuminanted or not | / |
| Led Voltage | / |
| Led Color |
/ |
| Illuminated Type | / |
| Enclosure Material | Stainless Steel |
| Delivery Days | 1-3 days |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Customized symbol,colored housing or Connector | Acceptable and with fast shipping |
| Accessories | Nut, Rubber Gasket,Resistor |
| Order Confirm | / |
