Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JINGDONG
-
Voltage:
-
220/380, 50 Hz
-
Dimension(L*W*H):
-
6 x 0.6 x 1.4 (meter)
-
Weight:
-
2 tons
-
After-sales Service Provided:
-
Overseas third-party support available, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Product Type:
-
PC PMMA Led Lamp extrusion Machine
-
Screw diameter:
-
Screw diameter: 40 mm. L/D = 28: 1
-
Gear box:
-
Gear hardening, polished, horizontal
-
Barrel:
-
Substrate: 38CrMoAlA, nitriding
-
Control panel:
-
5 zone temperature control, 4 air cooling
-
Vacuum calibration table:
-
2.5m length,stainless steel
-
Vacuum pump::
-
2.2kW
-
Drawing unit:
-
1.5kW frequency converter
-
Cutting unit:
-
1.5kW frequency converter
-
Certification:
-
CE Certificate
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
28:1
-
Screw Speed (rpm):
-
35 rpm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JINGDONG
-
Voltage:
-
220/380, 50 Hz
-
Dimension(L*W*H):
-
6 x 0.6 x 1.4 (meter)
-
Weight:
-
2 tons
-
After-sales Service Provided:
-
Overseas third-party support available, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Product Type:
-
PC PMMA Led Lamp extrusion Machine
-
Screw diameter:
-
Screw diameter: 40 mm. L/D = 28: 1
-
Gear box:
-
Gear hardening, polished, horizontal
-
Barrel:
-
Substrate: 38CrMoAlA, nitriding
-
Control panel:
-
5 zone temperature control, 4 air cooling
-
Vacuum calibration table:
-
2.5m length,stainless steel
-
Vacuum pump::
-
2.2kW
-
Drawing unit:
-
1.5kW frequency converter
-
Cutting unit:
-
1.5kW frequency converter
-
Certification:
-
CE Certificate

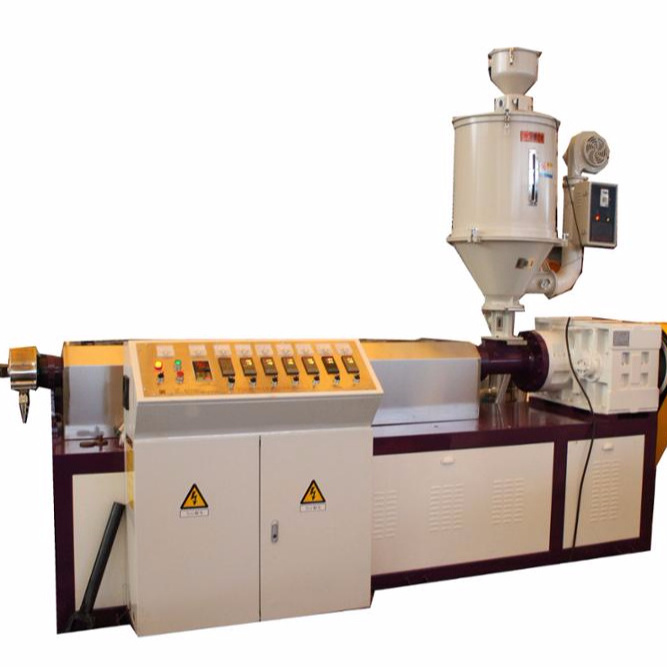

PC PMMA Led Lamp extrusion Machine / Plastic Cover Production Line / PC Tube Making Machines
Product Features:
The whole production line includes the following parts:
1. Drying machine
2. SJ-50 single screw extruder
4. profile molds (make according to your requirements)
5. Vacuum cooling shaping table
6. Belt type tractor
8. Precise Cutting machine
Advantage and application:
1. Automatic cutting machine, cutting process with synchronized traction,Cutting length of by laser positioning, automatic/manual/timer/counter/reminder,.Online cutting length error in (0.20mm)
2. The Extruder has frequency converter to save energy power/ Electricity
| Item | Unit | Parts | Number | Description |
| 1 | Main Unit | Screw & Barrel | 1 set | Φ50 mm, L/D=25/1, 38CrMoAIA, nitriding, screw: Cr plated, |
| Gear Box | 1 | gear hardening & polished, horizental | ||
|
Protecter & Hopper |
1 set | stainless steel | ||
| Motor | 1 | 18.5 kw, frequency varying | ||
| Machine Frame | 1 | steel profile welding | ||
| 2 | Belt Drawing Unit | Motor | 1 | 1.5 Kw, frequency varying, belt length: 800 mm |
| 3 | Die | 1 | only one standard | |
| 4 | Vacuum Sizing | Vacuum sizing | 1 | working table 1.5 meter, stainless steel, motor: 1.1 kw |
| 5 | Cutting Unit | Saw Cutting | 1 | motor: 0.75 kw |
| 6 | Product Rack | 1 | pneumatic | |
| 7 | Control Panel | 1 | separaated, 5 zone temperature control, 3 air-cooling |
Before sale
1.We provide service for consulting on end product analysis and facilities selection.
2.We can arrange you to visit our local clients to see how our facilities work.
After purchasing
1.We can provide ways on materials purchase.
2.Free offering of product formulation.
3.We provide service for training on process.
4.Before delivery, trial production to give qualified end product.
5.OEM service to meet client’s special demanding
After sales
1.Technical advisory services for a long time
2.The machine will have one year of warranty.During the warranty period,if any part of machine is broken
not by man made. We will replace it with the new one freely for you.The warranty date will begin since the
machine be sent out upon we receive the B/L.
