Quick Details
-
Disc Dia.:
-
N/A
-
No Load Speed:
-
0.3-0.35m/s
-
Place of Origin:
-
Qingdao
-
Brand Name:
-
Captain
-
Model Number:
-
PWB-080603
-
Warranty:
-
24 months
-
Body Frame:
-
2.0mm galvanized steel sheet
-
Air Ventilation:
-
air capacity is 32000m³/h
-
Lighting System:
-
4 pcs led lights on the ceiling
-
Filter cartridge:
-
4 pcs
-
Control System:
-
Power ON/OFF, emergency stop, breakdown alarm
-
Certification:
-
ce
Quick Details
-
Power:
-
28kw
-
External Size:
-
8700x5900x3000mm
-
Voltage:
-
as customer's request
-
Disc Dia.:
-
N/A
-
No Load Speed:
-
0.3-0.35m/s
-
Place of Origin:
-
Qingdao
-
Brand Name:
-
Captain
-
Model Number:
-
PWB-080603
-
Warranty:
-
24 months
-
Body Frame:
-
2.0mm galvanized steel sheet
-
Air Ventilation:
-
air capacity is 32000m³/h
-
Lighting System:
-
4 pcs led lights on the ceiling
-
Filter cartridge:
-
4 pcs
-
Control System:
-
Power ON/OFF, emergency stop, breakdown alarm
-
Certification:
-
ce
|

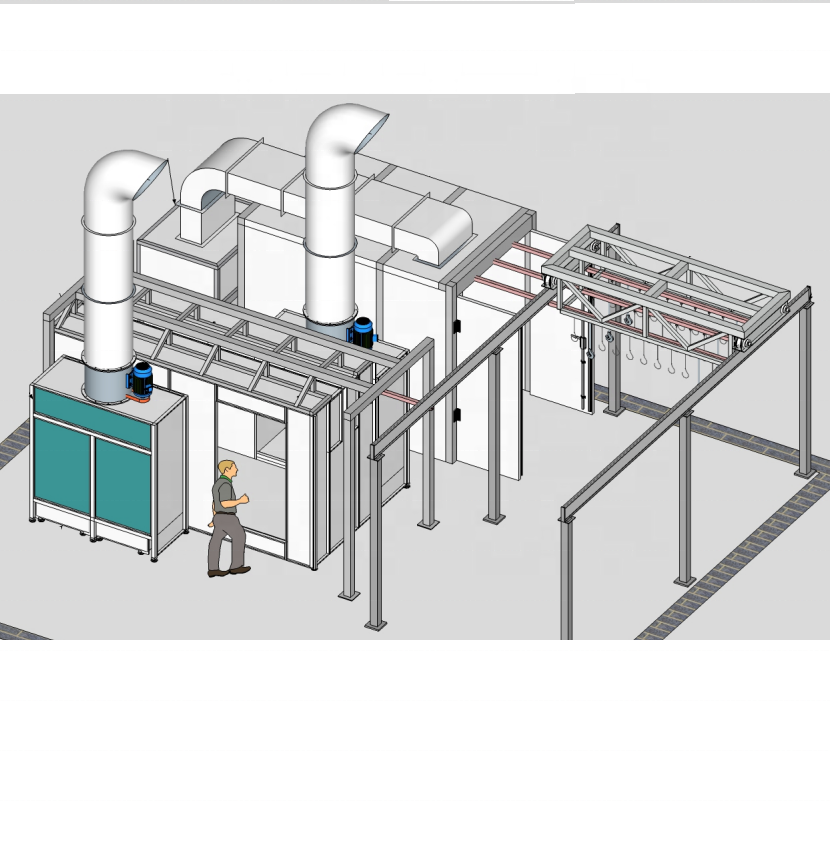

Powder cotaing booth
|
|
|
|
Outside Dimension
|
3800x3100x2300mm(W×D×H)
|
|
|
Main part
|
there have 2 parts : front part for working ,the size is 1900x1500x2300mm(W×D×H) ,Coaming plate connected by screws ; back part for powder coating booth ,
|
|
|
Body Frame
|
The frame is made of 2.0mm galvanized steel sheet, and t it have 4 pcs filter cartridge to recycle powder , The diameter of filter cartridge is 350mm and the length is 900mm. There is pulse system to help recycling the powder.
|
|
|
Air Ventilation
|
2 sets 3kw axial fan for air exhaust, intalled on the top of powder recycling system; air capacity is 32000m³/h , External copper motor.
|
|
|
Lighting System
|
with 2 units×2pcs=4pcs×16W explosion-proof lights
|
|
|
Control System
|
Power ON/OFF, emergency stop, breakdown alarm, etc. All main electric parts are from SCHNEIDER.
|
|
|
|
|
|
|
High temperature booth
|
|
|
|
Outside Dimension
|
3100x2000x2600mm(L×W×H)
|
|
|
Main door
|
2000x2400mm(W×H) , 2 folds
|
|
|
Panel
|
100mm rock wool panel , 950mm wide, density is 14kgs/m³. The panel with double sides 0.5mm steels, Tongue and groove interlock
structure. |
|
|
Heating System
|
Use the electrical heating tube to heat the air , about 12 pcs ,1x4kw High temperature circulating fan for exhausting, air
capacity is 4300m3/h; acceptable gas temperature is 250 degrees Celsius . |
|
|
Control System
|
Baking , time , temperature, emergency stop, breakdown alarm, etc. All main electric parts are from SCHNEIDER.
|
|
|
|
|
|
|
Transport system
|
|
|
|
Outside Dimension
|
5900x2800x3000mm(L×W×H)
|
|
