Quick Details
-
Model Number:
-
DS-708
-
Product name:
-
Button life test machine
-
Test stations:
-
4 stations work at the same time
-
Control way:
-
Touch screen control
-
Weight Load:
-
10,20,50,100,200g,500g, each one 2 pcs
-
Adjustable height:
-
0~100mm
-
Fixed clamps movement:
-
0~60mm
-
Max. sample height:
-
50mm
-
Test Counter:
-
0~99999999 ( can be set )
-
Power supply:
-
220V 50HZ ( or customize )
-
Machine size:
-
500*550*750mm
Quick Details
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Darsen
-
Model Number:
-
DS-708
-
Product name:
-
Button life test machine
-
Test stations:
-
4 stations work at the same time
-
Control way:
-
Touch screen control
-
Weight Load:
-
10,20,50,100,200g,500g, each one 2 pcs
-
Adjustable height:
-
0~100mm
-
Fixed clamps movement:
-
0~60mm
-
Max. sample height:
-
50mm
-
Test Counter:
-
0~99999999 ( can be set )
-
Power supply:
-
220V 50HZ ( or customize )
-
Machine size:
-
500*550*750mm

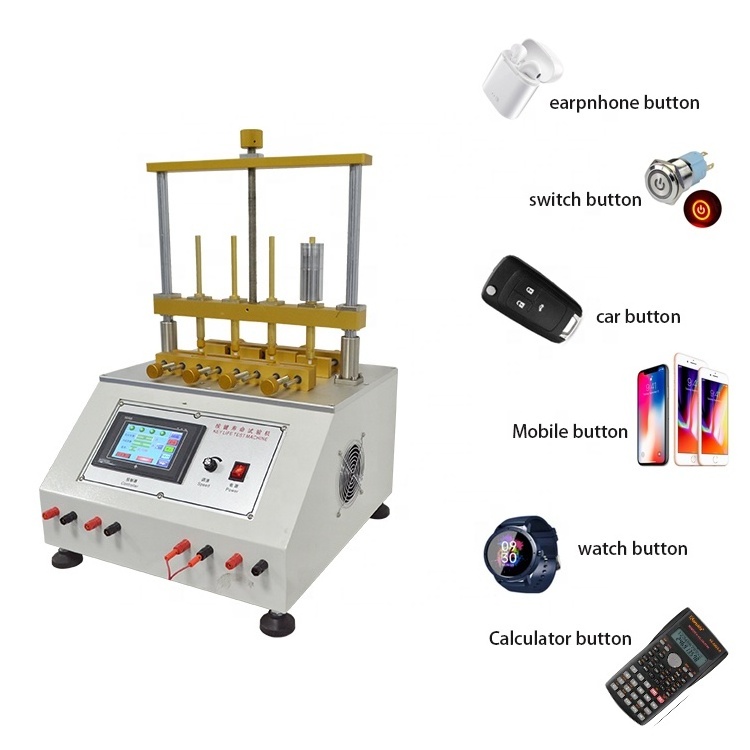

Darsen DS-708 Key life tester Button lifetime test machine Switch life time test equipment Mobile instrument Factory price
Summary :
The key /Button life testing machine is suitable for the life testing of mobile phones, computers, electronic dictionaries, Bluetooth headsets, car players, remote control keys, vehicle anti-theft devices, fax machine keys, MP5, MP4, MP3, key switches, touch switches, film keys, rubber keys, silicone keys and other keys.
Test T heory:
This machine is to place the products on the test position of the corresponding station respectively, and the key test bar can simulate the service life test of the product by human under a certain test load, speed, stroke and times.
Main Features:
1.It can be used to test 4 samples together at once
2.The controller is PLC+Touch screen, easy set the test time.
3.A utomatic counting, automatically stop counting after disconnection
4.The making material is stainless steel + baking paint, make sure a longtime using.
Technical Specifications:
|
Test stations |
4 stations work at the same time ( can conductive ) |
|
Control way |
Touch screen control, can set test and check test data directly |
|
Weight Load |
10, 20 , 50 , 100 , 200g , 500g, each one 2 pcs |
|
Adjustable height |
0~100mm |
|
Fixed clamps movement |
0~60mm |
|
Max. sample height |
50mm |
|
Test Counter |
0~99999999 ( can be set ) |
|
Test speed |
0~60 times /min ( adjustable ) |
|
Power supply |
220V 50HZ ( or custom ize ) |
|
Machine size |
500 * 550 * 750mm |
|
Machine weight |
About 45KG |
