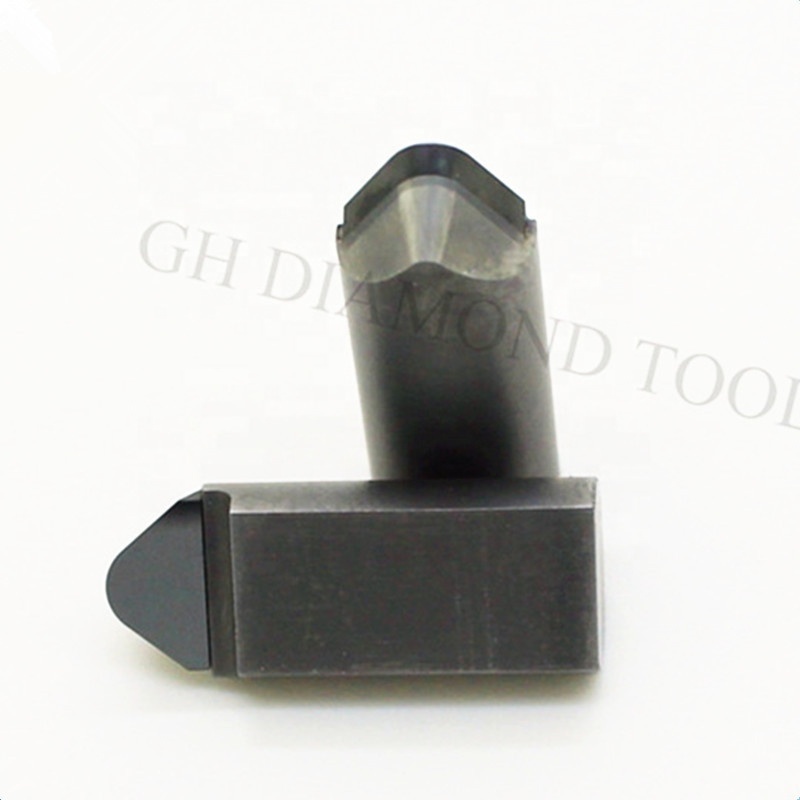

High Quality Diamond cylinder boring bar cutter PCD boring tool insert for roller roll

High Quality Diamond cylinder boring bar cutter PCD boring tool insert for roller roll

FOB Reference Price: Get Latest Price

≥2 Pieces

US $12

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: PCD boring tool

Model Number:: diamond PCD boring tool

Product name:: cylinder boring bar PCD boring tool

Name:: pcd insert for cnc lathe machine

Machine type:: Lathe machine

Processing:: copper,Al, roller, roll

Application:: Internal External Turning Inserts

Material:: PCD and tungsten carbide

PCD tip:: From GE E6

OEM ODM:: ACCEPT

SHIPMENT:: DHL.TNT.UPS.FEDEX.EMS

MOQ:: 2pcs

Quick Details

Usage:: External Turning Tool

Hardness:: super hard diamond

Coating:: no

Place of Origin:: Zhejiang, China

Brand Name:: PCD boring tool

Model Number:: diamond PCD boring tool

Product name:: cylinder boring bar PCD boring tool

Name:: pcd insert for cnc lathe machine

Machine type:: Lathe machine

Processing:: copper,Al, roller, roll

Application:: Internal External Turning Inserts

Material:: PCD and tungsten carbide

PCD tip:: From GE E6

OEM ODM:: ACCEPT

SHIPMENT:: DHL.TNT.UPS.FEDEX.EMS

MOQ:: 2pcs

High Quality Diamond cylinder boring bar cutter PCD boring tool insert for roller roll

Product Description

l PCD

PCD( Polycrystalline Diamond) is a synthesized, extremely tough, intergroup mass of randomly orientated diamond particles in a metal matrix. It is produced by sintering together selected diamond particles at high pressure and temperature.

Features:

--All our PCD PCBN blanks are imported from world famous companies including Element Six (DeBeers, E6), DI (GE), ILJIN, SMITH, SUMITOMO and TOMEI.

--The PCD CBN cutting tools have the advantages of high abrasive resistance, processing precision, good thermal conductivity and long service life.

---With sharp cutting edge , sharp, high precision,

---The body uses high quality tungsten carbide or steel.

-- Machines imported from UK, Germany, Japan

Application:

PCD may be cost effectively employed to machine the following broad range of materials:

Non-ferrous metals and alloys including, aluminum, copper, bronze, brass, green tungsten carbide, precious metals and MMC's.
Non-metallic materials including, ceramics, reinforced plastics, hard rubber, chipboard, MDF's and other fibreboards, etc.

PCD Recommended Cutting Condition
Work piece	Cutting Speed	Depth of Cut	Feed Rate
Work piece	(m/min)	(mm)	(mm/rev)
Aluminum(5~8% SI )	350~1600	0.05~2.50	0.10~0.40
Aluminum(8~12% SI )	350~1300	0.05~2.50	0.10~0.40
Aluminum(14~18% SI )	160~800	0.05~2.50	0.05~0.25
Copper	350~1000	0.15~2.50	0.05~0.20
Sintered Carbid	15~25	0.05~0.60	0.10~0.20
Glass Fiber	100~800	0.15~0.50	0.03~0.25
Carbon	160~700	0.15~2.50	0.15~0.40
High Aluminum	70~250	0.05~1.50	0.03~0.15
Ceramics	70~250	0.05~1.50	0.03~0.15
Wood	1000-2500	0.2~5.0	010~0.50

Materials to be Processed		Products
Nonferrous Metal	Aluminum, Aluminum Alloy	Piston, cylinder, wheel hub, transmission case, pump body, admission pipe and various shell parts for cars and motorcycles.
		Tank body, shell and compressor parts for airplanes and electro mechanical products.
		Precision machinery parts for cameras, duplicators and metrical instruments.
		Parts for pump body and oil press.
	Copper, Copper Alloy	Axle, bearing bush, bearing and pump body for internal combustion engines and ships.
		Parts for various instruments, dynamo commutators, printed boards and electronic apparatus.
		Bearing, bearing bush, valve and shell body.
	Tungsten Carbide	Sinter such as valve seat and cylinder, and semi-finished sinter.
	Others	Various nonferrous metal parts such as magnesium and zinc.
Nonmetal	Wood	Hardwood, artificial board, artificial abrasion resistant fiberboard.
	Reinforced Plastic	Glass fiber and carbon fiber reinforced plastic.
	Rubber	Roller for paper and rubber ring.
	Graphite	Carbon rod.
	Ceramic	Sinter such as sealing ring and plunger piston, and semi-finished sinter.
